Sony CDX-FW700 Install Manual

Sony cdx-fw700: install guide.
Also See for CDX-FW700:
Operating instructions manual - 60 pages
Operating & installation instructions - 2 pages
Limited warranty - 1 page
FM/AM
Compact Disc
Player
Installation/Connections
Instalación/Conexiones
CDX-FW700
© 2004 Sony Corporation
1
1
2
4
5
Equipment used in illustrations (not supplied)
Equipo utilizado en las ilustraciones (no suministrado)
Front speaker
Altavoz frontal
Rear speaker
Altavoz posterior
Active subwoofer
Altavoz potenciador de
graves activo
3-263-410-21 (1)
Printed in Korea
3
4
2
Power amplifier
Amplificador de potencia
CD/MD changer
Cambiador de CD/MD
Rotary commander RM-X4S
Mando rotatorio RM-X4S
2
A
SUB OUT (MONO)
AUDIO OUT
REAR
B
BUS AUDIO IN
BUS CONTROL IN
Source selector*
Selector de fuente*
XA-C30
Cautions
• This unit is designed for negative ground 12 V
DC operation only.
• Do not get the leads under a screw, or caught
in moving parts (e.g. seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all ground leads to a common ground
point.
• Be sure to insulate any loose unconnected
leads with electrical tape for safety.
• The use of optical instruments with this
product will increase eye hazard.
Notes on the power supply lead (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.
Parts Iist (1)
• The numbers in the list are keyed to those in
the instructions.
• The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 5 to
remove the bracket 1 and the protection collar
3 from the unit. For details, see "Removing
the protection collar and the bracket (4)" on
the reverse side of the sheet.
• Keep the release keys 5 for future use as
they are also necessary if you remove the
unit from your car.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Catch
Note
Before installing, make sure that the catches on
both sides of the bracket 1 are bent inwards 2 mm
(
3
/
in). If the catches are straight or bent outwards,
32
the unit will not be installed securely and may spring
out.
AUDIO OUT
FRONT
BUS AUDIO IN
BUS CONTROL IN
* not supplied
no suministrado

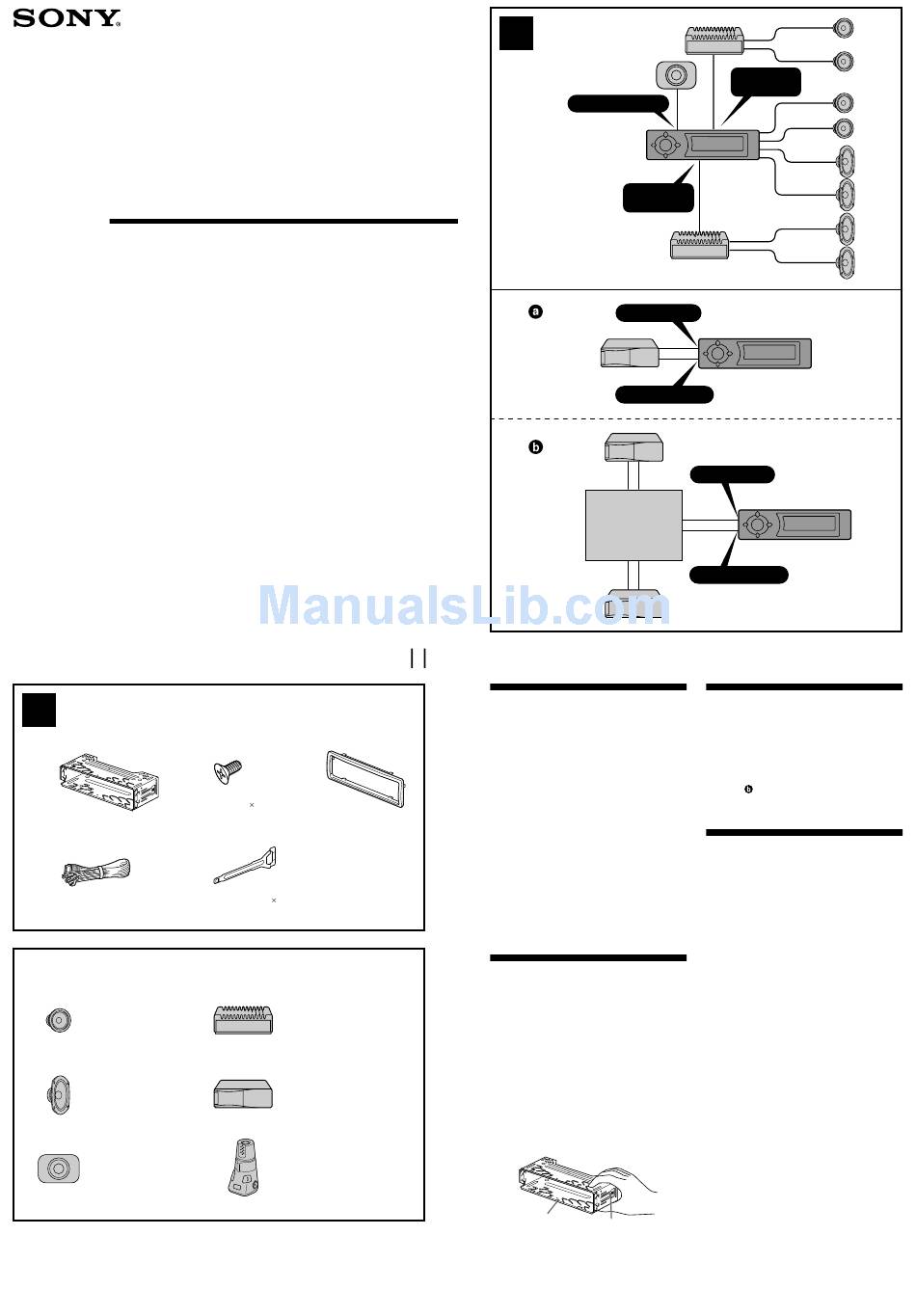

Connection example (2)
Notes (2-A)
• Be sure to connect the ground lead before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
Tip (2-B-
)
For connecting two or more CD/MD changers, the
source selector XA-C30 (optional) is necessary.
Connection diagram (3)
1
To a metal surface of the car
First connect the black ground lead, then
connect the yellow and red power input leads.
2
To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there
is no power antenna or antenna booster, or
with a manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
3
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4
To the interface cable of a car telephone
5
To a car's illumination signal
Be sure to connect the black ground lead to a
metal surface of the car first.
6
To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energized at all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
7
To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a
metal surface of the car first.
