Summary of Contents for Tricity Bendix SIE 233B

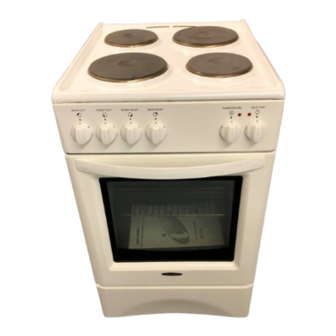

- Page 1 ELECTRIC COOKER SIE 233...
- Page 3 WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings.
-
Page 4: Table Of Contents
CONTENTS Instructions for the Installer Technical features Installation Location Electrical connections Instructions for the User Use and care Before the first use of the oven Electric oven Oven function control knob Thermostat control knob Using the fan oven Grilling Electric hotplates Hints and tips Maintenance and cleaning Oven bulb replacement... -
Page 5: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER TECHNICAL FEATURES Dimensions Height 900 mm Width 500 mm Depth 600 mm Oven Capacity 45 l Front left Hob element Ø 180 mm 2000 - 2090 W Back left Hob element Ø 145 mm 1000 - 1050 W Front right Hob element Ø... -
Page 6: Installation
INSTALLATION This cooker must be installed in Before your appliance is connected to the mains accordance with the IEE Wiring Regulations electricity supply, check to ensure that the (Current Edition). Detailed recommendations voltage and the frequency shown on the rating contained following British... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS Any electrical work required to install NOTE: The earth wire should be about 2 cm this hob and the supply cable should be longer than the live and neutral wires. carried out by a qualified electrician or competent person, in accordance with the After installation and connecting, the cable must current regulations. -
Page 8: Instructions For The User
INSTRUCTIONS FOR THE USER USE AND CARE A. Hob with electric plates B. Control panel C. Shelf supports D. Shelf E. Door handle F. Oven door G. Drawer H. Adjustable feet CONTROL PANEL BACK LEFT TEMPERATURE SELECTOR FRONT LEFT FRONT RIGHT BACK RIGHT 1. -
Page 9: Before The First Use Of The Oven
USE OF APPLIANCE Before the First Use of the Oven Before the first use ensure that the room well ventilated: V.M.C. (Mechanic ventilation) opened window. Remove all packaging, both inside and outside the oven, before using the oven. Before first use, the oven should be heated without food. -
Page 10: Electric Oven
ELECTRIC OVEN Oven Function Control Knob Oven switched off Oven light Defrost – (NB: This is NOT a cooking position). This position is intended to assist in thawing of frozen foods. Fan cooking – Thermaflow cooking; this system will allow you to roast and bake at the same time with very little flavour transference, and on any shelf. -
Page 11: Using The Fan Oven
The fan oven can be used to heat foods through USING THE FAN OVEN without thawing first, e.g. fruit tarts, mince pies, sausage rolls, and other small pastry items. Use The Fan Oven a temperature of 190-200°C and allow 20-40 The air inside the oven is heated by the element minutes (depending on the quantity of food in around the fan situated behind the back panel. -
Page 12: Grilling
Grilling When grilling, the accessible parts of the appliance are hot and the appliance should not be left unattended. Take care that children do not play near it. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. -
Page 13: Electric Hotplates
ELECTRIC HOTPLATES To switch on a hotplate, turn the relevant control knob to the required heat setting. The control knob is numbered 0 – 6 0 – OFF 1 – Minimum 6 – Maximum. The hob has two types of hotplates: Normal Hotplates We recommend the plates are switched to maximum (6) for a short while to boost the plate,... -
Page 14: Hints And Tips
Hints and Tips Saucepans for use on solid hotplates should have Good use several characteristics: • They should be fairly heavy duty. • They should fit the heat area exactly, or be slightly larger for efficient use, NEVER smaller. • They should have a flat base to ensure good contact with the hotplate. - Page 15 Accessories delivered with appliance The following accessories are supplied with your appliance. • Shelf for placing dishes on . The dish should be put in the middle of the shelf to balance the weight. • A roasting tray with roasting grid on it. It is used to collect juice when cooking in it, place it on the shelf 2.
-
Page 16: Maintenance And Cleaning
MAINTENANCE AND CLEANING The oven should be kept clean at all When cooking is completed and the oven has times. A build-up of fats or other cooled down, remove the filter by pushing the protruding tongue on the filter upward. foodstuffs could result in a fire. -
Page 17: Oven Bulb Replacement
Drying DO NOT clean the oven door while the Important: After cleaning, dry the hotplates glass panels are warm. If this precaution is thoroughly by switching on to a low-medium not observed the glass panel may shatter. If setting for a few minutes. the door glass panel becomes chipped or has deep scratches, the glass will be Restoring... -
Page 18: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 19: Service And Spare Parts
Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls. CUSTOMER CARE For general enquiries concerning your Tricity Bendix appliance and or for further information on our products, contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 20: Guarantee Conditions
GUARANTEE CONDITIONS Standard Guarantee Conditions We Tricity Bendix undertake that if, within 12 months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or... - Page 23 Customer Care Department Tricity Bendix 55-77 High Street Slough Berkshire SL1 1DZ Tel: 08705 950 950 SIE233 - 342 737 676 © Electrolux plc 2002 From the Electrolux Group. The world’s No.1 choice The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
