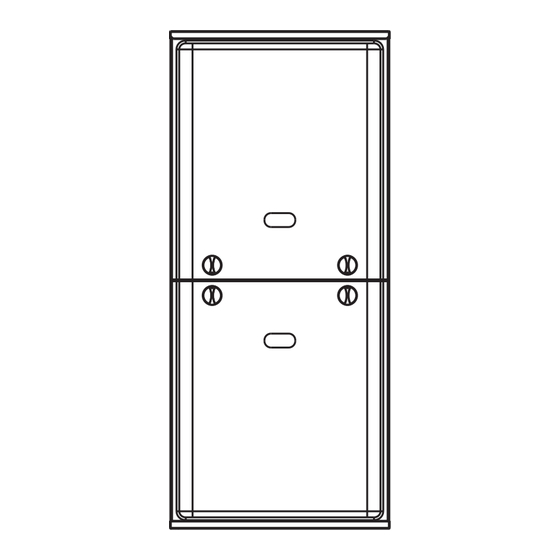

INSTALLATION MANUAL
RESIDENTIAL GAS FURNACE
WITH PSC MOTOR
MODELS:
TM9M*MP, YM9M*MP, CM9M*MP, LM9M*MP
(97% Modulating Multi-position)
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
DUCTWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FILTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
GAS PIPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ELECTRICAL POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
VENTING CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Duct Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Combustible Floor Base Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Horizontal Application (Typical) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Typical Attic Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Typical Suspended Furnace / Crawl Space Installation . . . . . . . . . . . 7
Downflow Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Downflow Installation - Gas Valve Rotation . . . . . . . . . . . . . . . . . . . . 7
Vertical Applications (Typical) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Coil Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Horizontal Right Application (Typical) . . . . . . . . . . . . . . . . . . . . . . . . 8
Horizontal Left Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PC Series Upflow Coil Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Horizontal Left or Right application (Right Shown) . . . . . . . . . . . . . . 8
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Side Return Cutout Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Gas Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electrical Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Variable Speed or PSC Modulating Furnace . . . . . . . . . . . . . . . . . . 13
Variable Speed or PSC Modulating Furnace . . . . . . . . . . . . . . . . . . 14
Thermostat - Variable Speed or PSC Modulating Furnace . . . . . . . 15
Variable Speed or PSC Modulating Furnace . . . . . . . . . . . . . . . . . . 16
Unit Clearances to Combustibles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Coil Projection Dimensions - PC Series Coils . . . . . . . . . . . . . . . . . . 8
Cabinet and Duct Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Recommended Filter Sizes (High Velocity 600 FPM) . . . . . . . . . . . . 9
High Altitude Orifices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ratings & Physical / Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maximum Equivalent Pipe Length . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Elbow Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Equivalent Length of Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
These high efficiency, compact units employ induced combustion, reli-
able hot surface ignition and high heat transfer aluminized tubular heat
exchangers. The units are factory shipped for installation in upflow or
horizontal applications and may be converted for downflow applica-
tions.
LIST OF SECTIONS
COMBUSTION AIR and VENT SYSTEM . . . . . . . . . . . . . . . . . 25
START-UP AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . 31
SAFETY CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
NORMAL OPERATION AND DIAGNOSTICS . . . . . . . . . . . . . 37
REPLACEMENT PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . 39
REPLACEMENT PART CONTACT INFORMATION . . . . . . . . 39
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
LIST OF FIGURES
Variable Speed or PSC Modulating Furnace . . . . . . . . . . . . . . . . . . 17
Variable Speed or PSC Modulating Furnace . . . . . . . . . . . . . . . . . . 18
Typical. Condensate drain, vertical installation. . . . . . . . . . . . . . . . . 20
Typical. Combustion Pipe Drain Tee. . . . . . . . . . . . . . . . . . . . . . . . . 20
Upflow Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Downflow Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Horizontal Left Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Horizontal Right Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Home Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Termination Configuration - 1 Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Termination Configuration - 2 Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Termination Configuration - 2 Pipe Basement . . . . . . . . . . . . . . . . . 28
Direct Vent Air Intake Connection and Vent Connection . . . . . . . . . 29
Combustion Airflow Path Through The Furnace Casing . . . . . . . . . 29
Outside and Ambient Combustion Air . . . . . . . . . . . . . . . . . . . . . . . . 30
Attic and Crawl Space Combustion Air Termination . . . . . . . . . . . . . 31
Gas Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Furnace Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
LIST OF TABLES
Size at Furnace (All Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Estimated Free Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Unconfined Space Minimum Area in Square Inch . . . . . . . . . . . . . . 30
Free Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Gas Rate (CU FT/HR) at Full Input . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Inlet Gas Pressure Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Nominal Manifold Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cooling Airflow - A/C Capacity in Tons . . . . . . . . . . . . . . . . . . . . . . . 35
Blower Performance CFM - Any Position . . . . . . . . . . . . . . . . . . . . . 36
These furnaces are designed for residential installation in a basement,
closet, alcove, attic, recreation room or garage and are also ideal for
commercial applications. All units are factory assembled, wired and
tested to assure safe dependable and economical installation and oper-
ation.
These units are Category IV listed and may not be common vented with
another gas appliance as allowed by the National Fuel Gas Code.
EFFICIENCY
RATING
CERTIFIED
ISO 9001
Certified Quality
Management System
405421-UIM-C-0709
