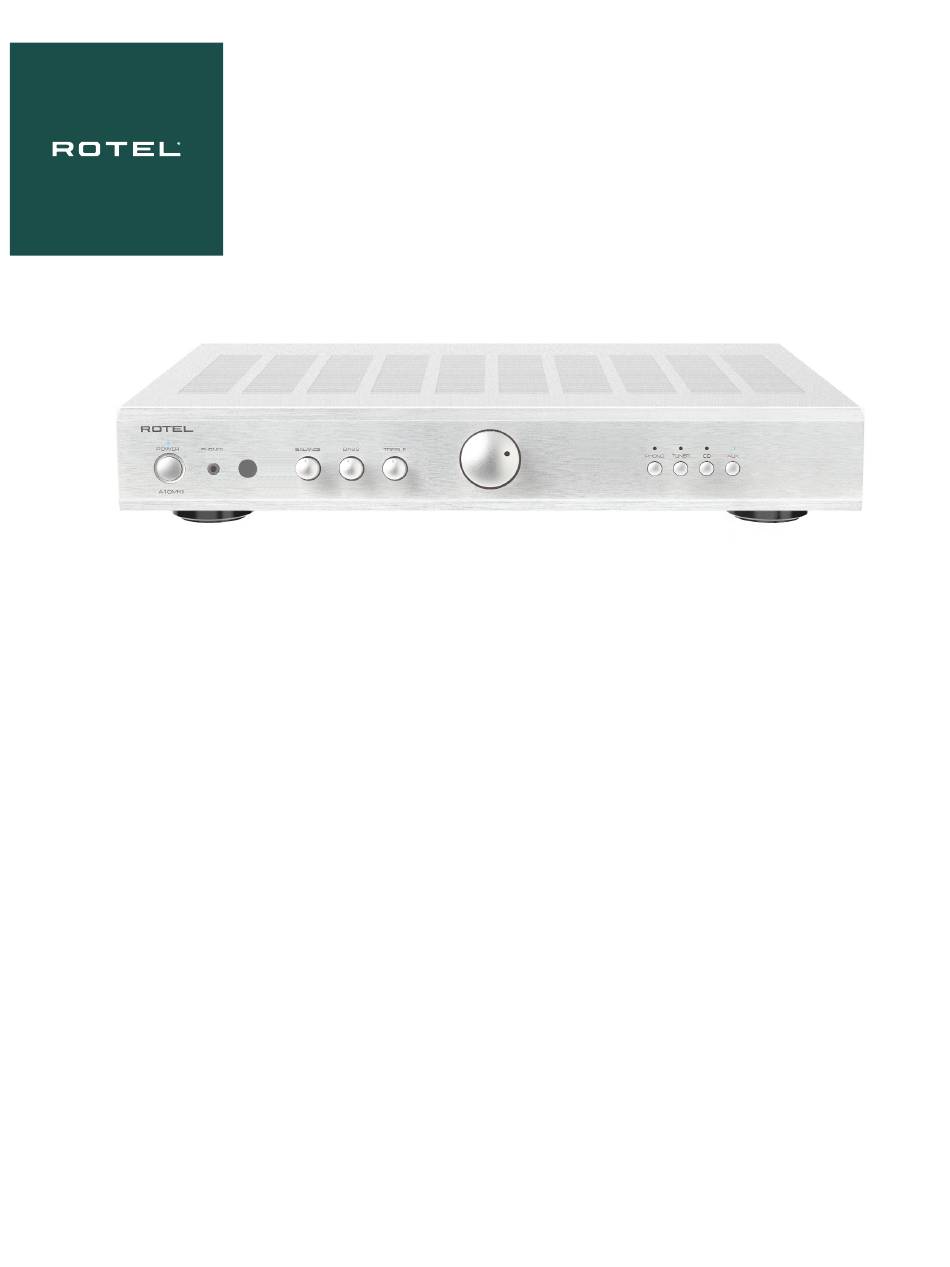

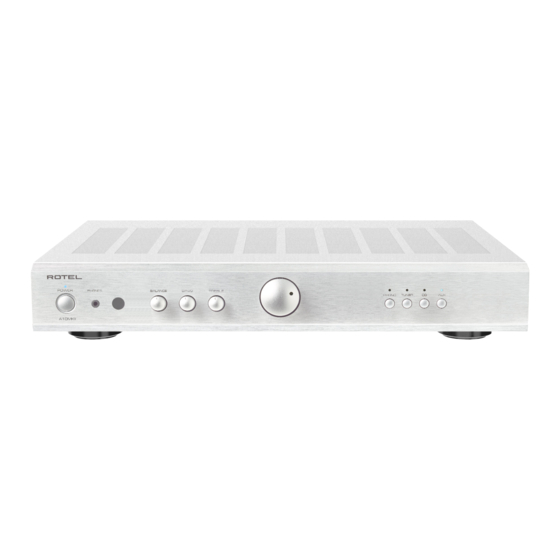

- Page 1 A10MKII Stereo Integrated Amplifier Amplificateur Stéréo Intégré Stereo-Vollverstärker Amplificatore Integrato Estereofonico Geïntegreerde stereoversterker Amplificatore integrato stereo Owner’s Manual Integrerad Stereoförstärkare Manuel d’utilisation Интегрированный стерео усилитель Bedienungsanleitung Manual de Instrucciones Gebruikershandleiding Manuale di istruzioni Instruktionsbok Инструкция пользователя...
- Page 2 A10MKII Stereo Integrated Amplifier Important Safety Instructions WARNING: There are no user serviceable parts The apparatus should be used in non tropical inside. Refer all servicing to qualified service climate. personnel. The ventilation should not be impeded by WARNING: To reduce the risk of fire or electric...
- Page 3 Figure 1: Controls and Connections Commandes et branchements Bedienelemente und Anschlüsse Controles y Conexiones De bedieningsorganen en de aansluitingen Controlli e collegamenti Kontroller och anslutningar Органы управления и разъемы 3 4 5 : Power Button : Source Button : Phono Input Activate the unit or put it into standby mode.
- Page 4 DIM Button Allows direct access to a track when used Cycle the brightness of the Power with a Rotel CD Player or Preset Station indicator above the Power button, the Recall when used with a Rotel Tuner. LEDs above the Source selectors and the Volume rotary knob LED on the front panel.
- Page 5 Conexiones de Entrada al Preamplificador y de Salida a las Cajas Acústicas De aansluitingen voor de voorversterker en de luidsprekers Collegamenti ingresso preamp ed uscita per diffusori Anslutningar för förförstärkare och högtalare Подсоединение источников сигнала и акустических систем PHONO Rotel A10MKII Rotel CD11MKII SPEAKERS...
-
Page 6: Important Notes
Bij het maken van de verbindingen: Zorg dat niet alleen de A10MKII, maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn. Zorg dat niet alleen de A10MKII, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen. -
Page 7: Table Of Contents
About Rotel ........ -
Page 8: Getting Started
If you have any questions see your authorized Rotel dealer for advice about the best cable to use The main functions of the A10MKII are easy to install and use. If you with your system. -
Page 9: Ac Power And Control
Ask your authorized authorized Rotel dealer. Do not use an extension cord. A heavy duty Rotel dealer for advice about cables. multi-tap power outlet strip may be used if it (and the wall outlet ) can... -
Page 10: Speaker Connection
Power Control 0 Protection Circuit When the slider is set to the ON position, the A10MKII will be configured to automatically power off to standby mode if there is no audio signal for 20 minutes. The auto power off timer will be restarted if changes are The unit has both thermal and over-current protection circuitry that made to the volume, source or playback. -
Page 11: Troubleshooting
If the protection circuitry triggers repeatedly and you are unable to isolate Line Level Inputs Line Level Inputs and correct the faulty condition, contact your authorized Rotel dealer for Tone Controls - Bass / Treble Tone Controls - Bass / Treble ±... - Page 12 Rotel USA 11763 95th Avenue North Maple Grove, MN 55369 Phone: (510) 843-4500 (option 2) Rotel Canada Kevro International 902 McKay Rd. Suite 4 Pickering, ON L1W 3X8 Canada Tel: +1 905-428-2800 www.rotel.com A10MKII Owner’s Manual Ver B 072023 English...
- Page 13 LPs, a Tuner input to listen to your favourite radio overall cost and can detract from your musical enjoyment. stations and two Aux inputs for other analogue source devices. Rotel integrated amplifiers bring your sources to life with amazing fidelity.
- Page 14 17" x 2 7/8" x 13 5/8" Input Overload Front Panel Height 60mm, 2 3/8" Phono Input 180 mV Weight (net) 5.9kg, 13 lb Line Level Inputs Rotel integrated amplifiers bring your sources to life with amazing fidelity. See more at rotel.com...
