Sharp Notevision PG-F317X Operation Manual page 27

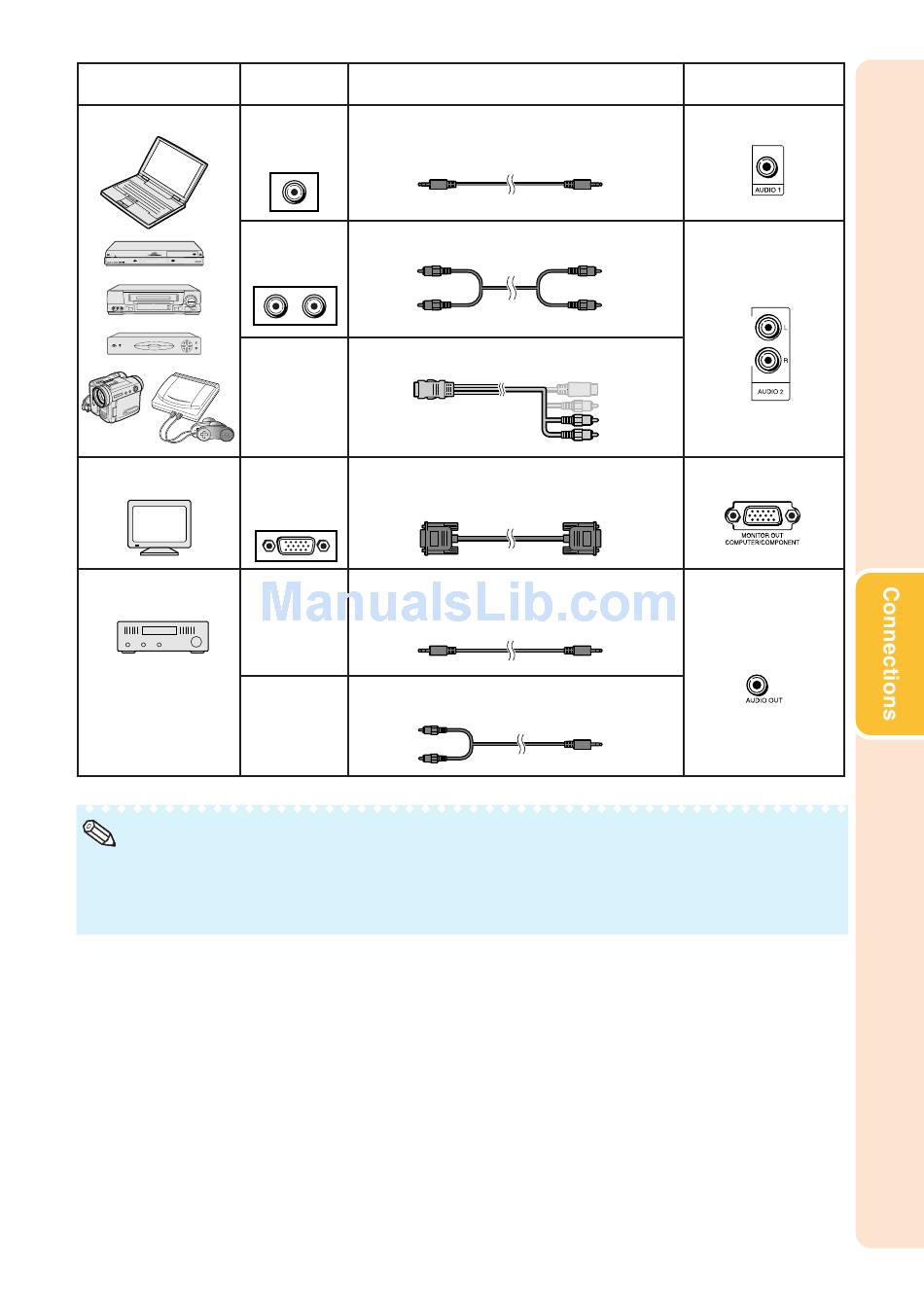

Equipment
connected equipment
Audio equipment
audio output
RCA audio
Monitor
Amplifier
audio input
RCA audio
Note
• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
• You can select "Audio 1" or "Audio 2" for "Audio Input" in the "PRJ-ADJ" menu. (See page 47.)
• RGB signals and Component signals can be output to the monitor.
Terminal on
ø3.5 mm ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
terminal
RCA audio cable (commercially available)
output
terminal
Cables for a camera or a video game
Audio
output
terminal
RGB cable (supplied or commercially
RGB
available)
input
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
ø3.5 mm
as Sharp service part QCNWGA038WJPZ)
terminal
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
input
terminal
Cable
Terminal on the
projector
AUDIO 1
AUDIO 2
MONITOR OUT
AUDIO OUT
