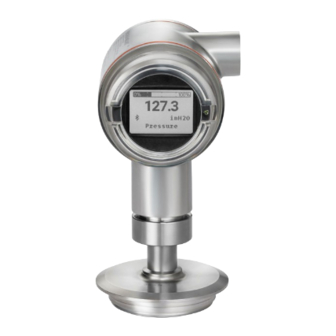

Emerson Rosemount 3051HT Quick Start Manual
Hygienic pressure transmitter
Hide thumbs
Also See for Rosemount 3051HT:
- Quick start manual (32 pages) ,
- Quick start manual (28 pages) ,
- Quick start manual (24 pages)
Related Manuals for Emerson Rosemount 3051HT
Summary of Contents for Emerson Rosemount 3051HT
- Page 1 Quick Start Guide 00825-0100-4091, Rev DC July 2023 Rosemount 3051HT Hygienic ™ Pressure Transmitter with 4–20 mA HART ®...
- Page 2 Quick Start Guide July 2023 Contents About this guide........................... 3 Transmitter installation....................... 5 Product certifications........................ 19 Emerson.com/Rosemount...
- Page 3 July 2023 Quick Start Guide 1 About this guide This guide provides basic guidelines for Rosemount 3051HT Hygienic Pressure Transmitter. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, explosion-proof, flameproof, or Intrinsically Safe (IS) installations. Refer to the...
- Page 4 Entries marked “M20” are M20 × 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form. When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands, or adapters in cable/conduit entries. Emerson.com/Rosemount...
- Page 5 Quick Start Guide 2 Transmitter installation 2.1 Mount the transmitter Before mounting, place the Rosemount 3051HT Hygienic Pressure Transmitter to the desired orientation. When changing the transmitter orientation, do not have the transmitter securely mounted or clamped in place. Conduit entry orientation...
- Page 6 Clamping When installing a clamp, follow the recommended torque values provided by the gasket manufacturer. Note To maintain performance, Emerson does not recommend torquing a 1.5" Tri-Clamp beyond 50 in-lb. on pressure ranges below 20 psi. 2.2 Set the switches...
- Page 7 July 2023 Quick Start Guide WARNING When the circuit is live in explosive atmospheres, do not remove the instrument cover. 4. Using a small screwdriver, slide the security and alarm switches into the preferred position. 5. Reattach the transmitter cover. Note To comply with: Applicable ordinary location requirements, the covers must only be capable of being released or removed with the aid of a...
- Page 8 Connect the wiring and power up Figure 2-4: Transmitter wiring diagrams (4–20 mA) - aluminum A. Minimize distance B. Trim shield and insulate C. Protective grounding terminal D. Insulate shield E. Connect shield back to the power supply ground Emerson.com/Rosemount...
- Page 9 NOTICE • Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 3051HT Hygienic Pressure Transmitter case is properly grounded. • Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.
- Page 10 When using a direct wiring method, wrap wire clockwise to ensure it is in place when tightening the terminal block screw. NOTICE Emerson does not recommend using a pin or a ferrule wire terminal, as the connection may be more susceptible to loosening over time or under vibration.
- Page 11 These grounds are used when the transient protection terminal blocks are installed. Emerson recommends using 18 AWG or larger wire to connect housing ground to earth ground (internal or external). If the transmitter is currently not wired for power up and...
- Page 12 Quick Start Guide July 2023 2.4 Set configuration parameters using a communication device Emerson recommends that you verify various configuration parameters prior to installing the transmitter into the process: • Alarm and saturation levels • Damping • Process variables • Range values •...
- Page 13 July 2023 Quick Start Guide Figure 2-7: Device driver (DD) menu tree NOTICE Emerson recommends installing the latest DD to ensure full functionality. Download the latest DD at Software Downloads & Drivers | Emerson Procedure 1. Set alarm and saturation values: Device Settings → Setup Overview → Alarm and Saturation Values.
- Page 14 ® Procedure 1. Launch AMS Device Configurator. AMS Device Configurator for Emerson Field Devices. 2. Select the device where you want to connect. 3. On first connection, enter the key for selected device. 4. At the top left, select the menu icon to navigate the desired device menu.
- Page 15 July 2023 Quick Start Guide Bluetooth UID and key ® You can find the Unique Identifier (UID) and key on the disposable paper tag attached to: • the device • the terminal block cover • and on the display unit Figure 2-8: Bluetooth security information 2.5 ...
- Page 16 To access the configuration buttons on a polished stainless steel housing, remove the terminal side housing cover. To access the configuration buttons on an aluminum housing, loosen the screw on the top tag and slide the tag on the top of the transmitter. Emerson.com/Rosemount...
- Page 17 July 2023 Quick Start Guide Figure 2-9: External or Rear/Terminal-Side Configuration Buttons for Aluminum Analog zero Digital zero Aluminum and span A. Configuration buttons Figure 2-10: External or Rear/Terminal-Side Configuration Buttons for Polished 316 SST Analog zero and Digital zero Aluminum ...
- Page 18 2. Press and hold the Zero button for two seconds to perform an analog zero trim. Perform trim with digital zero (option DZ) Procedure 1. Set the transmitter pressure. 2. Press and hold the Zero button for two seconds to perform a digital zero trim. Emerson.com/Rosemount...
- Page 19 European Directive Information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 3.2 Ordinary Location Certification...
- Page 20 Care must be taken during installation and use to prevent impact and friction. 2. The Rosemount 3051HT with the transient terminal block (option code T1) will not pass the 500 V dielectric strength test;...
- Page 21 July 2023 Quick Start Guide 3.6 Europe I1 ATEX Intrinsic Safety BAS97ATEX1089X Certificate EN IEC 60079-0: 2018, EN 60079-11:2012 Standards HART II 1 G Ex ia IIC T4 Ga, (–20 °C ≤ T ≤ +70 °C) Markings ® Fieldbus II 1 G Ex ia IIC Ga T4 (–20 °C ≤ T ≤...
- Page 22 1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IRC 60079-11. This must be taken into account when installing the equipment. Emerson.com/Rosemount...
- Page 23 QE. Ensure gasket selected for installation is approved to meet both application and EHEDG certification requirements. ASME-BPE All Rosemount 3051HT Transmitters with option F2 and the following connections are designed to ASME-BPE SF4 standards 1½-in. Tri Clamp 2-in. Tri Clamp Per Clause SD-2.4.4.2 (m), suitability of painted aluminum housings is to be...
- Page 24 Quick Start Guide July 2023 A self-certified certificate of compliance to ASME-BPE is also available (option QB). Declaration of Conformity Emerson.com/Rosemount...
- Page 25 July 2023 Quick Start Guide Quick Start Guide...
- Page 26 Quick Start Guide July 2023 Emerson.com/Rosemount...
- Page 27 July 2023 Quick Start Guide China RoHS Quick Start Guide...
- Page 28 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
