Related Manuals for MB QUART MBQR-RAD-2
Summary of Contents for MB QUART MBQR-RAD-2

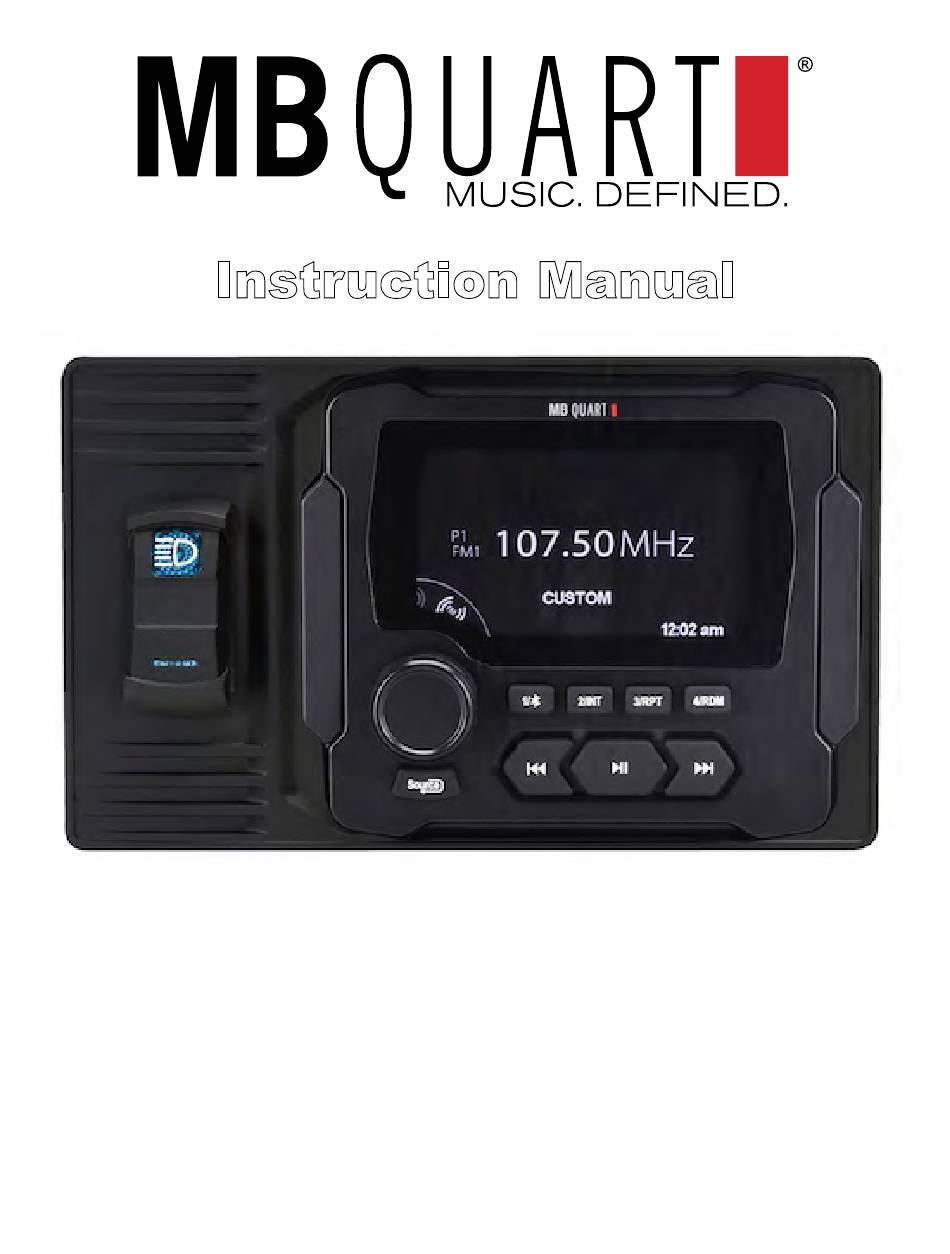

- Page 1 Instruction Manual MBQR-RAD-2 DASHBOARD DISASSEMBLY INSTRUCTIONS for Polaris Vehicles ® ®...
- Page 2 ● Safety Glasses - always wear eye protection PREPARATION FOR INSTALLATION Before dismantling your vehicle, we suggest you prepare your tools, the MBQR-RAD-2 and its wiring as increases efficiency to have everything ready when each component is installed. STEP 1 – REMOVE SEATS...
- Page 3 Set aside the retaining clip shown in Figure 5-5 for re-use when mounting the MBQR-RAD-2 source unit. Set aside OEM dash clip for source unit mounting later in the installation as its reused when you are installing an MB Quart MBQR-RAD-2. T40 Torx Screw Figure 5-4 Figure 5-5...
- Page 4 Figures 5-8 and 5-9. Slowly ensure you account for all clips removed. Figure 5-8 Figure 5-9 NEXT STEPS Refer to the MBQR-RAD-2 Operator’s Guide and Installation Instructions for wiring and fitting details. This is available at MBQuart.com. MBQR-RAD-2 AM/FM/USB/Bluetooth ®...
- Page 5 DASH AREA DISASSEMBLY 2018.5 Turbo S & 2019+ RZR (RIDE COMMAND) Please note, separate disassembly instructions for the 2013-2018 RZR models are found on pages 3-4 in this manual. STEP 1 – REMOVE CENTER HOOD Figure 7-1 Remove the center of the hood area as shown in Figure 7-1.
- Page 6 USB cable. If you don’t have Ride Command, the pocket area is where the MBQR-RAD-2 source unit installs if you'll be installing one. Next, remove (2) plastic push clips in the passenger side cubby as shown in Figure 7-5b. Then remove cubby and set aside.
- Page 7 Figure 7-8. Set aside in a safe location until it’s time for reassembly. This allows further access for running wires. Figure 7-8 NEXT STEPS Refer to the MBQR-RAD-2 Operator’s Guide and Installation Instructions for wiring and fitting details. This is available at MBQuart.com. MBQR-RAD-2 ® AM/FM/USB/Bluetooth...
- Page 8 COMPLETE WIRING LAYOUT This is a complete wiring harness layout diagram of a RZR Stage 5 system. Your source unit is only one part of the whole audio system package possible. To view all the RZR-Tuned Audio System Options, visit MBQuart.com ©2020 Maxxsonics USA, Inc.
- Page 9 NOTES Use this section to record serial numbers of each product, final settings of your MBQR-RAD-2 source unit or any other wiring or installation-related details that will be helpful if you need to add on to the system or troubleshoot any unforeseen issues.
- Page 10 The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by MB Quart is under license. All product names, logos, and brands are property of their respective owners. All company, product and service names used in this literature are for identification purposes only.
- Page 11 MBQR-RAD-2 ® AM/FM/USB/Bluetooth Multimedia Controller and Vehicle-Specific Housing for Polaris Vehicles ® ® Operator’s Guide and Installation Instructions...
-
Page 12: General Information
Congratulations for choosing the MBQR-RAD-2, an AM/FM/WB, USB and Bluetooth Multimedia Controller by MB Quart. The unit and housing are engineered to fit 2013 and newer Polaris ® ® vehicles. For more detailed information about the product and a video tutorial, please visit MBQuart.com... -
Page 13: Wiring And Connections
Wiring and Connections Water Tight Plug Face Shown (Wires to Connect Exit Rear) (M) Yellow (F) Gray (L) White/Black (E) Gray/Black (K) White (D) Green/Black (J) Red (C) Green (H) Purple/Black (B) Blue (G) Purple (A) Black Yellow (+12v Constant) Blue(Amp Turn-On) Red (+12v Accessory) Black (Chassis Ground) - Page 14 Wiring and Connections ● MB Quart recommends wire-to-wire connections such as power, ground and speaker wiring are soldered and protected with either heat shrink tubing or high quality electrical tape. ● The main (yellow) power wire should be connected to a source with at least 10 amps of additional current capability to support the unit.
- Page 15 Polaris RZR Source Unit Mounting Instructions For disassembly instructions, refer to the MBQR-RAD-2 disas- sembly instruction manual at MBQuart.com. There you will find detailed disassembly instruction steps for all RZR vehicles. This section describes the source unit mounting only. 1) Reassemble part of the front dash around the dash pocket area.
- Page 16 Polaris RZR Source Unit Mounting Instructions 4) Push the dash assembly into place until as shown in image 4 until you feel and hear a snap as the entire assembly seats into place. 5) Re-attach the original metal clip with the T40 screw once the entire assembly is seated into place.
-
Page 17: Front Panel Controls
Front Panel Controls 2/INT 3/RPT 4/RDM Source POWER/Selector and Volume Knob ● Press the POWER/Selector Knob to power on the unit. ● Rotate the POWER/Selector Knob to view sources when source selection menu wheel is displayed. To select a source, press and release the POWER/Selector Knob. -
Page 18: Aux Input
Source Selection Weather FM Radio Bluetooth AM Radio Aux Input Camera Input Settings Step 1 Step 2 Source 2/INT 3/RPT 4/RDM 2/INT 3/RPT 4/RDM Source Source Press SOURCE Button to Rotate Selector Knob display source selection to choose a source menu. - Page 19 AM/FM Configuration Several configurable AM/FM radio parameters are available. ● Select between AM or FM on the Source Menu wheel. Each has its own menu. ● Once the chosen source is selected, press and hold the SOURCE button for 2 seconds. The AM or FM menu will appear (whichever source is selected).
- Page 20 AM/FM Configuration Settings Choices for AM ● PRESETS - This function shows stored AM presets 1-6 on AM1 or AM2. Only presets 1-4 have front panel quick access buttons without using this menu. ● SAVE PRESETS - This function stores AM presets in spaces 1-6. Only presets 1-4 have front panel quick access buttons.
-
Page 21: Weather Band Operation
AM/FM and Weather Band Operation Once setup is complete, select between AM or FM icons on the Source Menu wheel or simply press the SOURCE button to back up to the source screen showing the current AM or FM frequency. ●... -
Page 22: Bluetooth Pairing
● Ensure the Bluetooth functionality on the mobile device is enabled and supports A2DP audio streaming. ● Scan for "MB QUART" in the Bluetooth list on the mobile device. ● Select “MB QUART” and the connection will then be made automatically. - Page 23 15 seconds. ● To disconnect and allow another user to connect, use the mobile device to forget the "MB QUART" connection entirely. Once a Bluetooth device is paired and recognized: ● Be sure the multimedia controller has the Bluetooth source selected.
-
Page 24: Usb Input
USB Input The multimedia controller supports MP3, WMA, and WAV audio files with a USB thumb drive connected. Additionally, M4A or Apple Lossless file types are supported if the user connects an iPhone ® using iTunes as the music player. Most smartphones with a USB-based charging connector and USB thumb drives easily connect to the multimedia controller. - Page 25 USB RPT and RDM Functionality The multimedia controller has two modes of making a USB-connected music library more interesting with Repeat (RPT) and Random (RDM) functions. Random play is also called "Shuffle" on some mobile devices. USB Thumb Drive RPT and RDM With a thumb drive connected to the USB input, users see an icon on the right side of the screen (centered) that indicates the status of the RPT mode.
-
Page 26: Camera Operation
Auxiliary (AUX) Input and Camera The multimedia controller has right and left preamp level RCA connections for the Auxiliary Input. If a portable device with a headphone jack is used, a 3.5mm (male) to RCA (male) adapter cable is required and not included. Select the AUX icon on the Source Menu wheel. -
Page 27: Settings Menu
SETTINGS Menu To access SETTINGS, press Selector/Volume knob in any source. The "SETTINGS" menu appears immediately. Alternatively, select "SOURCE" and navigate to the SETTINGS icon ("Gear" icon), then press the Selector/Volume knob to access the menu. 2/INT 3/RPT 4/RDM Use the Selector/Volume knob to navi- Source gate the main menu by turning to scroll and pressing to enter a specific feature... -
Page 28: Clock Adjust
SETTINGS Menu (Continued) Clock Adjust ● Access the clock adjust mode menu to change the time displayed on the unit's main screen. ● Navigate each time parameter (hour, then minute) by turning the knob and select by pushing the knob. ●... -
Page 29: Balance Control
BASS Level ● Adjust the bass from -7 to +7. Default setting is “0.” Center frequency is 100Hz. TREBLE Level ● Adjust the treble range from -7 to +7. Default setting is “0.” Center frequency is 10KHz. BALANCE Control ● Adjust the balance between the left and right speakers using the grid on the screen and the Selector/Volume knob to move the dot. - Page 30 Audio System Design Ideas Front Speakers Front and Rear Built-in Power Rear Speakers Multimedia Controller 4-Speaker System using Built-in Power Front Speakers Rear Speakers Subwoofers 4 Channel Amp Front and Rear RCAs Multimedia Controller Amplified System Subwoofer Amp with Subwoofers SUB (Green) RCAs...
- Page 31 Interior Speakers Front and Rear Rear Built-in Power Front Multimedia Controller Dual-Zone 4 Channel Amp Roll Bar UTV System Front and Rear RCAs using ZONE Control Speakers Interior Speakers Front and Rear Rear Built-in Power Front Multimedia Controller 4 Channel Amp Dual-Zone Roll Bar Front and Rear RCAs using ZONE Control...
-
Page 32: Diagnostics And Troubleshooting
Diagnostics & Troubleshooting Problem Cause Solution 1. Incorrect wiring 1. Re-check wiring No power 2. Fuse is blown 2. Replace fuse (Unit does not 3. Wiring harness is 3. Re-check wiring turn on) not connected harness connection 1. Increase volume 1. - Page 33 Notes...
- Page 34 The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by MB Quart is under license. All product names, logos, and brands are property of their respective owners. All company, prod- uct and service names used in this literature are for identification purposes only.
-
Page 36: Installation Instructions
GMR-LED ® AM/FM/USB/Bluetooth Multimedia Controller for Off-Road and Marine 2/INT 3/RPT 4/RDM Source Operator’s Guide and Installation Instructions... -
Page 37: Installation Specifications
Congratulations for choosing the AM/FM/USB Bluetooth Multimedia Controller by MB Quart. For more detailed information about the product, please visit MBQuart.com CAUTION Always consider consulting a professional audio installation technician before installing any mobile audio components. Be careful and take your time. Do not let wires make contact with metal edges, sources of moisture or hot engine components. -
Page 38: Wiring And Connections
Wiring and Connections Water Tight Plug Face Shown (Wires to Connect Exit Rear) (M) Yellow (F) Gray (L) White/Black (E) Gray/Black (K) White (D) Green/Black (J) Red (C) Green (H) Purple/Black (B) Blue (G) Purple (A) Black Yellow (+12v Constant) Blue(Amp Turn-On) Red (+12v Accessory) Black (Chassis Ground) - Page 39 Wiring and Connections ● We recommend wire-to-wire connections such as power, ground and speaker wiring are soldered and protected with either heat shrink tubing or high quality electrical tape. ● The main (yellow) power wire should be connected to a source with at least 10 amps of additional current capability to support the unit.
- Page 40 Rear Mounting Instructions ● Check for appropriate mounting depth and mechanical or electrical obstacles behind the mounting panel BEFORE any cutting. Including the “U”-shaped aluminum mounting bracket, at least 4” (100mm) depth is required. ● Using a 3” hole saw or air saw, cut a 3” (76.2mm) diameter hole in the mounting panel.
- Page 41 Front Mounting Instructions ● Check for appropriate mounting depth and mechanical or electrical obstacles behind the mounting panel BEFORE any cutting. At least 3.75” (95.25mm) depth is required. ● Using a 3” hole saw or air saw, cut a 3” (76.2mm) diameter hole in the mounting panel.
- Page 42 Front Panel Controls 2/INT 3/RPT 4/RDM Source POWER/Selector and Volume Knob ● Press the POWER/Selector Knob to power on the unit. ● Rotate the POWER/Selector Knob to view sources when source selection menu wheel is displayed. To select a source, press and release the POWER/Selector Knob.
- Page 43 Source Selection Weather FM Radio Bluetooth AM Radio Aux Input Camera Input Settings Step 1 Step 2 Source 2/INT 3/RPT 4/RDM 2/INT 3/RPT 4/RDM Source Source Press SOURCE Button to Rotate Selector Knob display source selection to choose a source menu.
- Page 44 AM/FM Configuration Several configurable AM/FM radio parameters are available. ● Select between AM or FM on the Source Menu wheel. Each has its own menu. ● Once the chosen source is selected, press and hold the SOURCE button for 2 seconds. The AM or FM menu will appear (whichever source is selected).
- Page 45 AM/FM Configuration Settings Choices for AM ● PRESETS - This function shows stored AM presets 1-6 on AM1 or AM2. Only presets 1-4 have front panel quick access buttons without using this menu. ● SAVE PRESETS - This function stores AM presets in spaces 1-6. Only presets 1-4 have front panel quick access buttons.
- Page 46 AM/FM and Weather Band Operation Once setup is complete, select between AM or FM icons on the Source Menu wheel or simply press the SOURCE button to back up to the source screen showing the current AM or FM frequency. ●...
- Page 47 ● Ensure the Bluetooth functionality on the mobile device is enabled and supports A2DP audio streaming. ● Scan for "MB QUART" in the Bluetooth list on the mobile device. ● Select “MB QUART” and the connection will then be made automatically.
- Page 48 15 seconds. ● To disconnect and allow another user to connect, use the mobile device to forget the "MB QUART" connection entirely. Once a Bluetooth device is paired and recognized: ● Be sure the multimedia controller has the Bluetooth source selected.
- Page 49 USB Input The multimedia controller supports MP3, WMA, and WAV audio files with a USB thumb drive connected. Additionally, M4A or Apple Lossless file types are supported if the user connects an iPhone ® using iTunes as the music player. Most smartphones with a USB-based charging connector and USB thumb drives easily connect to the multimedia controller.
- Page 50 USB RPT and RDM Functionality The multimedia controller has two modes of making a USB-connected music library more interesting with Repeat (RPT) and Random (RDM) functions. Random play is also called "Shuffle" on some mobile devices. USB Thumb Drive RPT and RDM With a thumb drive connected to the USB input, users see an icon on the right side of the screen (centered) that indicates the status of the RPT mode.
- Page 51 Auxiliary (AUX) Input and Camera The multimedia controller has right and left preamp level RCA connections for the Auxiliary Input. If a portable device with a headphone jack is used, a 3.5mm (male) to RCA (male) adapter cable is required and not included. Select the AUX icon on the Source Menu wheel.
- Page 52 SETTINGS Menu To access SETTINGS, press Selector/Volume knob in any source. The "SETTINGS" menu appears immediately. Alternatively, select "SOURCE" and navigate to the SETTINGS icon ("Gear" icon), then press the Selector/Volume knob to access the menu. 2/INT 3/RPT 4/RDM Use the Selector/Volume knob to navi- Source gate the main menu by turning to scroll and pressing to enter a specific feature...
- Page 53 SETTINGS Menu (Continued) Clock Adjust ● Access the clock adjust mode menu to change the time displayed on the unit's main screen. ● Navigate each time parameter (hour, then minute) by turning the knob and select by pushing the knob. ●...
- Page 54 BASS Level ● Adjust the bass from -7 to +7. Default setting is “0.” Center frequency is 100Hz. TREBLE Level ● Adjust the treble range from -7 to +7. Default setting is “0.” Center frequency is 10KHz. BALANCE Control ● Adjust the balance between the left and right speakers using the grid on the screen and the Selector/Volume knob to move the dot.
- Page 55 Audio System Design Ideas Front Speakers Front and Rear Built-in Power Rear Speakers Multimedia Controller 4-Speaker System using Built-in Power Front Speakers Rear Speakers Subwoofers 4 Channel Amp Front and Rear RCAs Multimedia Controller Amplified System Subwoofer Amp with Subwoofers SUB (Green) RCAs...
- Page 56 Interior Cabin Speakers Front and Rear Built-in Power Multimedia Controller Dual-Zone 4 Channel Amp Wakeboard Ski Boat System Front and Rear RCAs using ZONE Control Tower Speakers Interior Cabin Speakers Front and Rear Built-in Power Multimedia Controller 4 Channel Amp Dual-Zone Wakeboard Front and Rear RCAs using ZONE Control...
- Page 57 Diagnostics & Troubleshooting Problem Cause Solution 1. Incorrect wiring 1. Re-check wiring No power 2. Fuse is blown 2. Replace fuse (Unit does not 3. Wiring harness is 3. Re-check wiring turn on) not connected harness connection 1. Increase volume 1.
- Page 58 Notes...
- Page 59 The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by MB Quart is under license. All product names, logos, and brands are property of their respective owners. All company, prod- uct and service names used in this literature are for identification purposes only.
