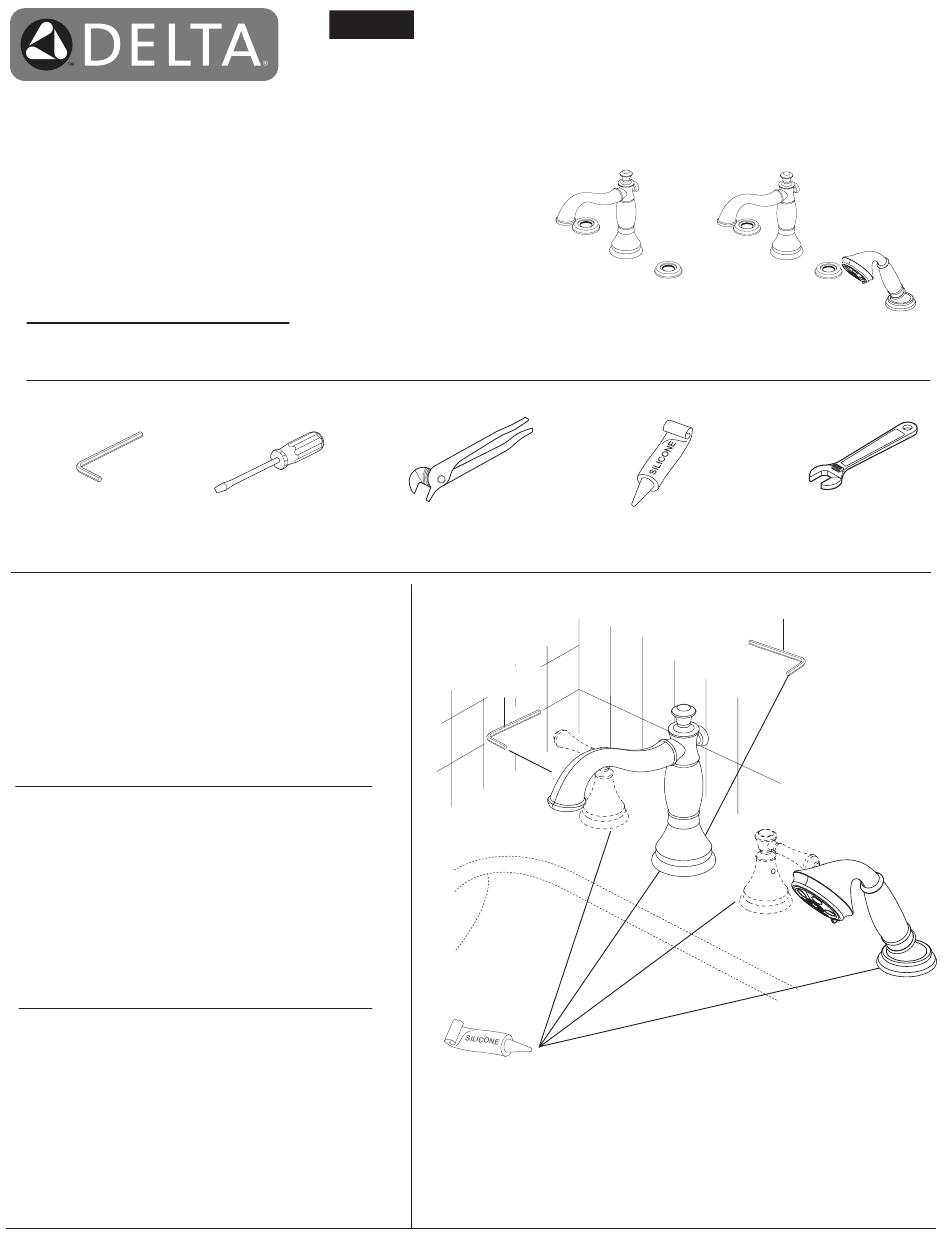

Model/Modelo/Modéle
T2797-LHP & T4797-LHP
Series/Series/Seria
Cassidy
TM
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
Rough-in mounting / valving required to complete installation
El montaje / la valvulería eléctrico/a oculto/a que se requiere para completar la instalación
Plomberie brute montée/à soupape nécessaire pour terminer l'installation
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
• To complete the deck and valve rough-in prior to
installing this trim kit.
Para instalación fácil de su llave
Delta
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Para completar el borde y la instalación de vál-
vulas dentro de las paredes previa a la
instalación de la llave y sus accesorios.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Installez le corps du robinet et terminez le
pourtour du bain avant de poser les accessories
de finition.
www.deltafaucet.com
67776
®
3/32"
(2.38mm)
®
1
TWO HANDLE ROMAN TUB TRIM
LLAVE Y SUS ACCESORIOS PARA BAÑERA
ROMANA DE DOS MANIJAS (MANERALES)
ACCESSOIRES DE FINITION DE ROBINET
À DEUX POIGNÉES POUR BAIN ROMAIN
T2797-LHP
T4797-LHP
1/8" (3.17mm)
4/9/15
Rev. F
Advertisement
Related Manuals for Delta Cassidy T2797-LHP
Summary of Contents for Delta Cassidy T2797-LHP
- Page 1 Rough-in mounting / valving required to complete installation El montaje / la valvulería eléctrico/a oculto/a que se requiere para completar la instalación Plomberie brute montée/à soupape nécessaire pour terminer l’installation For easy installation of your Delta ® 1/8" (3.17mm) faucet you will need: •...
- Page 2 January 1, 1995 and installed in the United States of America, Canada and Mexico. use and service. If repair or replacement is not practical, Delta Faucet Company may elect to DELTA FAUCET COMPANY SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR refund the purchase price in exchange for the return of the product.
- Page 3 ▲ Specify Finish Model / Modelo / Modèle T2797-LHP Model / Modelo / Modèle T4797-LHP Especifíque el Acabado Précisez le Fini ▲ Specify Finish Especifíque el Acabado Précisez le Fini RP72719▲ Lift Rod Barra de alzar Tige de Manoeuvre RP73284▲ Set Screw &...
-
Page 4: Maintenance
T4797-LHP RP40668 Diverter Assembly Ensamble del Desviador Dérivation Maintenance Model T4797-LHP If faucet does not divert water from the spout to the hand shower, check that If faucet leaks from spout outlet: Shut off water supplies – the lift rod (1) is securely threaded into the diverter (2). If the problem persists Replace Seats and Springs (1). - Page 5 T2797-LHP T2797-LHP T4797-LHP T4797-LHP 3/32" (2.38 mm) NOTE: The deck and valve rough-in must be finished before Place bases (1) with gaskets (2) over end valves (3). OPTION: Use sili- installing the trim kit. cone under the gasket if deck is uneven. Install gasket (4) and spout (5) on the spout adapter (6).
- Page 6 T4797-LHP T4797-LHP T4797-LHP T4797-LHP Remove conical nut (1) from handshower nest (2) and insert braid- For Model T4797-LHP Only ed metal hose through the handshower nest. Reassemble test cap (3) to braided hose to hold hose in place. Place handshower nest Install lift rod (1).
- Page 7 T2797-LHP T4797-LHP Model T2797-LHP Install handles (not included) and secure with set screw (1) Be sure glide ring (2) is properly seated in bottom of handles before installing. Turn faucet handles (1) all the way on. Turn on hot and cold water supplies and flush water lines for one minute.
- Page 8 T4797-LHP T4797-LHP For Model T4797-LHP Only Attach hand piece (1) to hose (2) with gasket (3) between connection. Refer to maintenance section (page 4) for correct Pull hose (1) to its farthest extension and point it down into the diverter and lift rod function. tub.
