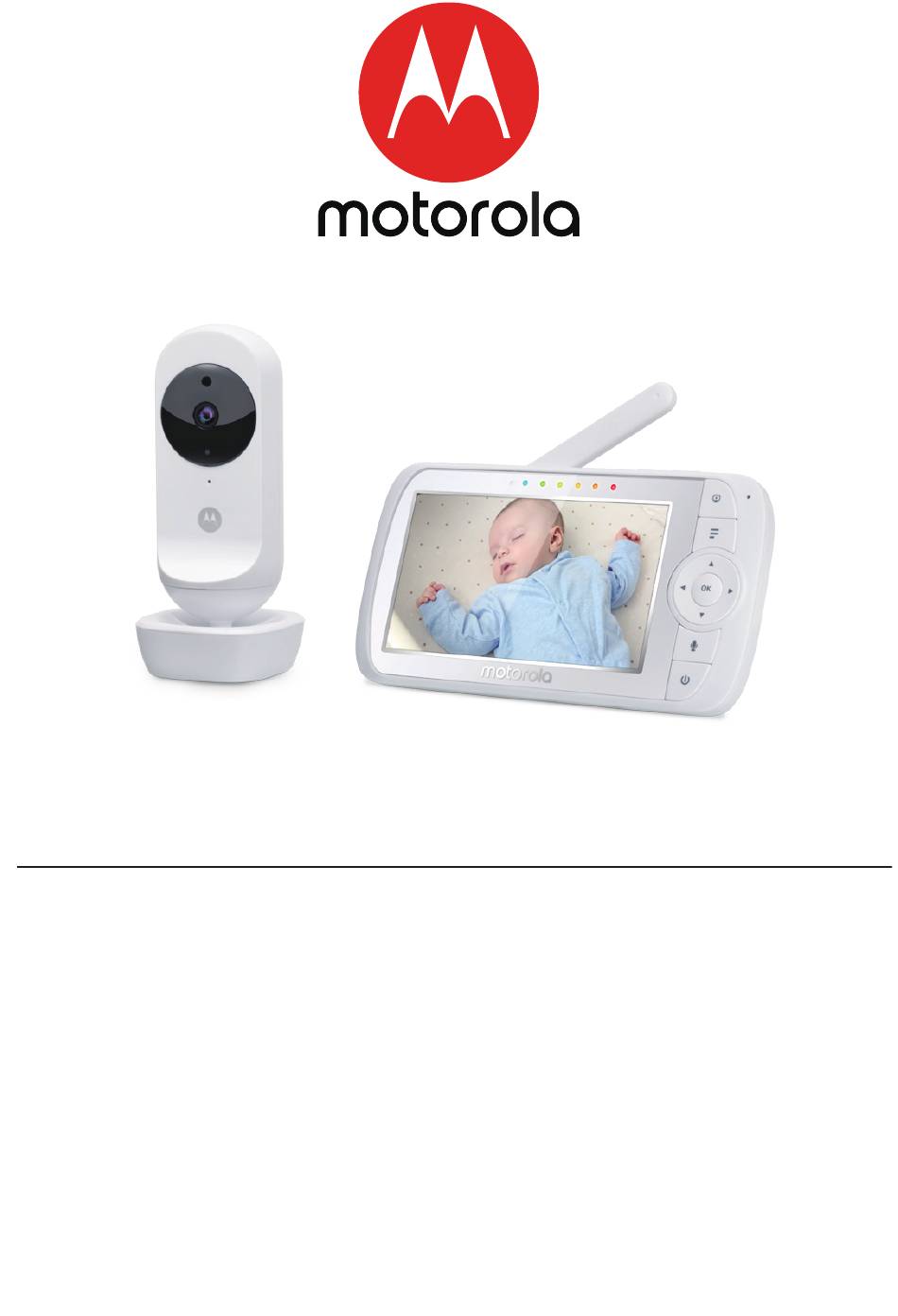

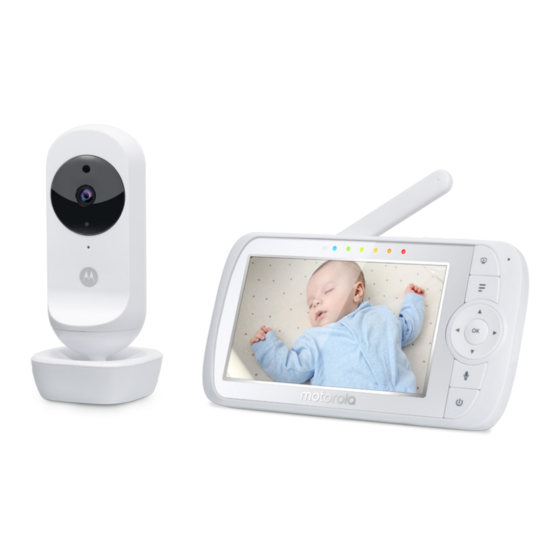

- Page 1 USER’S GUIDE 5" Video Baby Monitor MODELS: EASE35, EASE35-2, EASE35-3, EASE35-4 The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Parent Unit Display (LCD screen) 8. MENU button 2. Parent Unit ON/OFF and Press to open / close the Charging LED Menu options. Purple when the parent unit is 9. Navigation button Move Up/Down/Right/Left Blue when mains power menu options.
- Page 4 Parent Unit menu icons Signal Level (5 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X).
- Page 5 Overview of Your Baby Unit Infrared LEDs (x8, for night 5. High Sense Microphone 6. Speaker vision) PAIR button 2. Light Sensor (Night Vision 8. Power Socket Mode) 9. Temperature Sensor 3. Camera Lens 4. Power/Link indicator Important guidelines for installing your Digital Video Baby Monitor •...
-
Page 6: Table Of Contents
Table of contents Safety Instructions ................8 2. Getting Started ................11 2.1 Connecting the Power Supply for the Baby Unit ....... 11 2.2 Connecting the Power Supply of the Parent Unit...... 11 2.3 Desktop Stand of the Parent Unit ............ 12 2.4 Registration (Pairing)................ - Page 7 4.7 Temperature ..................... 17 4.8 Power Saving mode................17 4.9 View multiple cameras on screen ........... 17 5. Disposal of the Device (environment) ........18 6. Cleaning ................... 18 7. Help ....................19 8. General Information ..............21 9. Technical Specifications ..............25 Table of contents...
-
Page 8: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 9 CAMERA UNIT SET UP & USE: • Choose a location for the Baby Unit that will provide the best view of your baby in his/her cot. • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit on a wall securely using the keyhole slots in the underside of the stand.
- Page 10 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Do not touch the plug contacts with sharp or metal objects. • Connect the power adapters to easily accessible electrical sockets. CAUTION There is a risk of explosion if the battery is replaced by an incorrect type.
-
Page 11: Getting Started
2. Getting Started Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit. • Connect the other end of the power adapter to a suitable electrical outlet. -
Page 12: Desktop Stand Of The Parent Unit
Desktop Stand of the Parent Unit • Flip out the stand on the back of the Parent Unit • Recommend to rotate it by 90 degree to set up the desktop stand. Reset button Step 1 Step 2 Registration (Pairing) The Baby Monitor is pre-registered to your Parent Unit. -
Page 13: Using The Baby Monitor
3. Using the Baby Monitor Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. -
Page 14: Parent Unit Menu Options
4. Parent Unit Menu Options Volume Press the Volume button + or - to adjust the volume level. icon will pop up and you can select the desired volume from level 0~8. (The default volume level setting is level 5, and level 0 is OFF.) Zoom Press the M button and the menu bar will pop up with... -
Page 15: Camera Control
Camera Control 4.6.1 Add (pair) a camera Press the M button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted, and the del/ add/ view/ scan menu will pop up. 3. -
Page 16: Delete A Camera
4.6.3 Delete a camera Press the M button and the menu bar will pop up. 2. Press the < LEFT button or > RIGHT button until highlighted, and the del/ add/ view/ scan menu will pop up. 3. Press the + UP button or - DOWN button to select del, and press the O button to confirm. -
Page 17: Temperature
Temperature Press the M button and the menu bar will pop up. 2. Press the < LEFT button or > RIGHT button until highlighted. 3. Press +UP / -DOWN then O to select °C or °F. Power Saving mode Press the M button and the menu bar will pop up. 2. -
Page 18: Disposal Of The Device (Environment)
5. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 19: Help
7. Help Display No display • Try recharging the battery pack. • Reset the Units. Unplug both the Units' electrical power, then plug them back in. • Is the Unit switched on? • Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to switch it ON. - Page 20 • Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/ mobile telephone. Move the Baby Unit or Parent Unit 1.5 metre away from other electrical equipment. • Use of other 2.4 GHz products, such as wireless networks (Wi- Fi®...
-
Page 21: General Information
Contact Customer Service: +491805 938 802 in Europe Email: support@motorolastore.com Consumer Products and Accessories Limited Warranty (“Warranty”) Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory... - Page 22 WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE...
- Page 23 MOTOROLA or BINATONE, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
- Page 24 How to Obtain Warranty Service or Other Information? To obtain service or information, please call: +491805 938 802 in Europe Email: support@motorolastore.com You will receive instructions on how to ship the Products or Accessories at your expense and risk, to a BINATONE Authorised Repair Centre. To obtain service, you must include: (a) the Product or Accessory;...
-
Page 25: Technical Specifications
9. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor color CMOS 0.3M Pixels IR LED 8 pcs Operating C - 40 Temperature Power Adapter: Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1000mA Technical Specifications... - Page 26 PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 5” diagonal TFT LCD Display Colors 16.7M color LCD Brightness 8 steps Control Volume Control 8 steps Operating C - 40 Temperature Power Adapter: Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA WARNING Use only with provided power supply.
- Page 27 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
