500R Series Remote Access Points
Installation Guide
The Aruba 500R Series access points are dual-radio 802.11ax Wi-Fi 6 remote access points that provide
connectivity for both wired and wireless client devices.
Package Contents
The following materials are included with this product:
AP-503R Access Point
n
AC-to-DC Power Adapter with Country-Specific AC Power Plug
n
Hardware Overview

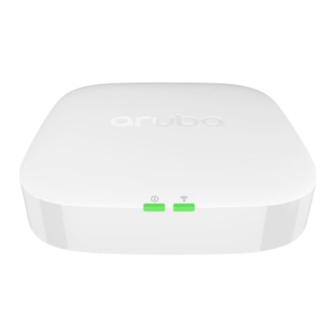

Figure 1 AP-503R Front View
1
2
500R Series Remote Access Points | Installation Guide
System Status LED
Radio Status LED
1
Advertisement
Table of Contents
Related Manuals for HP 500R Series
Summary of Contents for HP 500R Series
- Page 1 500R Series Remote Access Points Installation Guide The Aruba 500R Series access points are dual-radio 802.11ax Wi-Fi 6 remote access points that provide connectivity for both wired and wireless client devices. Package Contents The following materials are included with this product: AP-503R Access Point AC-to-DC Power Adapter with Country-Specific AC Power Plug...
- Page 2 Figure 2 AP-503R Rear and Side View Primary DC Power Port (Circular) Alternate DC Power Port (USB-C) E0 Ethernet Port (Uplink) E1 Ethernet Port (Downlink) E2 Ethernet Port (Downlink) USB Type-A Host Port Kensington Lock Slot Figure 3 AP-503R Bottom View Rev 02|May 2023...
-
Page 3: System Status Led
USB Micro-B Console Port (proprietary) Reset Button LEDs The LEDs located on the front panel of the access point indicate the system and radio status of the access point. System Status LED The system status LED indicates the system status of the access point. Table 1: System Status LED Color/State Meaning... - Page 4 Pressing the reset button for less than 10 seconds during normal operation will toggle the LED mode between “normal” (default after power on) and “off” mode. Pressing the reset button for longer than 10 seconds may cause the access point to reset and return to the factory default state.
- Page 5 The E0 port is a 100/1000Base-T auto-sensing MDI/MDIX uplink port . The E1 and E2 ports are 100/1000Base-T auto-sensing MDI/MDIX downlink ports. Ethernet Port LEDs Each of the E0-E2 ports has one LED located on the top left corner of the port, indicating the network status or activity on the port.
-
Page 6: Access Point Installation
Stop bits: 1 Parity: None Flow control: None 3. Start the terminal emulation session. 4. Press Enter once. If the connection is sucessful, you are prompted to login. For this console port pin-out details, refer to Figure Figure 6 Micro-B Console Port Pin-out 1: NC 2: RXD 3: TXD... -
Page 7: Verifying Post-Installation Connectivity
The regulatory model number RMN is not the marketing name or model number of the product. The following regulatory model numbers apply to the 500R Series AP-503R RMN: APINR503 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s author- ity to operate this equipment. -
Page 8: Wireless Channel Restrictions
Déclaration e la concernant l’exposition aux rayonnements à fréquence radioélectrique: Cet appareil est conforme aux limites d’exposition aux rayonnements FR établies par la FCC. Il doit être installé et utilisé à une distance minimale de 20 cm (7.87 pouces) entre le radiateur et votre corps, qu’il opère sur la bande 2,4 GHz ou 5GHz. Cet émetteur ne doit pas être installé... - Page 9 Romania (RO), Slovakia (SK), Slovenia (SL), Spain (ES), Sweden (SE), Switzerland (CH), Turkey (TR), United Kingdom (UK (NI)). Radio Frequency Range MHz Max EIRP Wi-Fi 2412-2472 20 dBm 5150-5250 23 dBm 5250-5350 23 dBm 5470-5725 30 dBm 5725-5850 14 dBm Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands.
