LG-Ericsson IPECS LIP-9048DSS Quick Installation Manual

Network and Power
LIP-9048DSS can be powered by either AC/DC adaptor (not supplied), or PoE. When the power
mode is set as MASTER, in this case the power adapter is not necessary for IP Phone.
• Use only the Ericsson-LG Enterprise Approved power adaptor which you can order separately.
• To use PoE, your connected LAN must support PoE.
Powered by Power Adaptor
1. Plug the supplied LAN cable into the RJ45 Jack on the DSS marked with the
LAN Ethernet port on your phone marked with the symbol.
2. Plug the LAN cable into the PoE Jack on the DSS marked with the
Ethernet connection. (Do not extend the LAN Ethernet cable to the outside of the building.)
3. Connect the power adapter to the adapter jack on the DSS and fasten the cord with a hook.

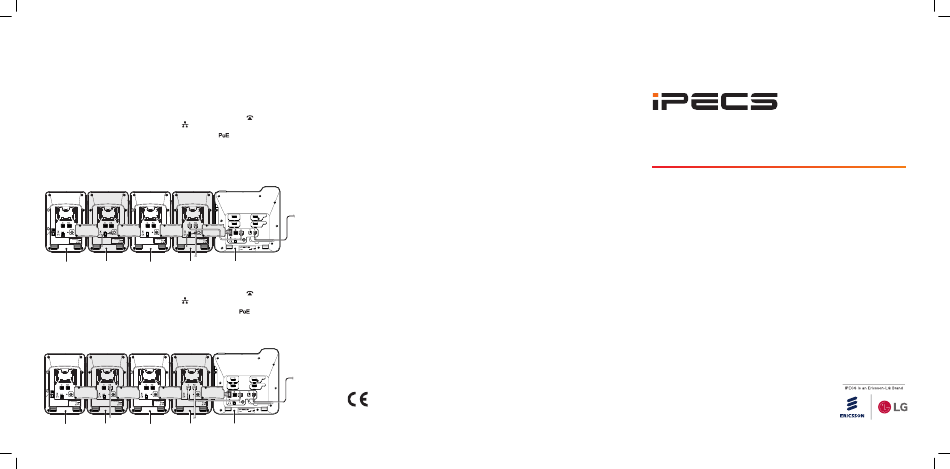

4. To install additional DSS, please refer to the figure in below, and 'DSS Master 2' must be
connected with a separate adapter.
5. Plug the power adapter into the nearest power outlet.
LIP-9048DSS LIP-9048DSS LIP-9048DSS LIP-9048DSS
Direct Station Select Direct Station Select Direct Station Select Direct Station Select
Made in Thailand Made in Thailand Made in Thailand Made in Thailand
DSS Slave 2 DSS Master 2 DSS Slave 1 DSS Master 1
Powered by PoE
1. Plug the supplied LAN cable into the RJ45 Jack on the DSS marked with the
LAN Ethernet port on your phone marked with the symbol.
2. Plug the LAN cable into the PoE Jack on the back of DSS marked with the
your LAN Ethernet connection. (Do not extend the LAN Ethernet cable to the outside of the
building.)
3. To install additional DSS, please refer to the figure in below, and 'DSS Master 2' must be
connected with a separate PoE.
LIP-9048DSS LIP-9048DSS LIP-9048DSS LIP-9048DSS
Direct Station Select Direct Station Select Direct Station Select Direct Station Select
Made in Thailand Made in Thailand Made in Thailand Made in Thailand
DSS Slave 2 DSS Master 2 DSS Slave 1 DSS Master 1
LIP-9048DSS - Quick Installation Guide
symbol and the
symbol and your LAN
LIP-9040
Use only with approved limited power source
IP Phone
symbol and the
symbol and
The contents of this document are subject to revision without
notice due to continued progress in methodology, design and
manufacturing. Ericsson-LG Enterprise shall have no liability for
any error or damage of any kind resulting from the use of this
document.
Part No. MMBB9247201 / ISSUE 1.1
LIP-9040
Use only with approved limited power source
Printed in Thailand
IP Phone
4
LIP-9048DSS
Quick Installation Guide
www.ericssonlg-enterprise.com
Please read this manual carefully before
© Ericsson-LG Enterprise Co., Ltd. 2015
operating your set. Retain it for future reference.
