Page 1

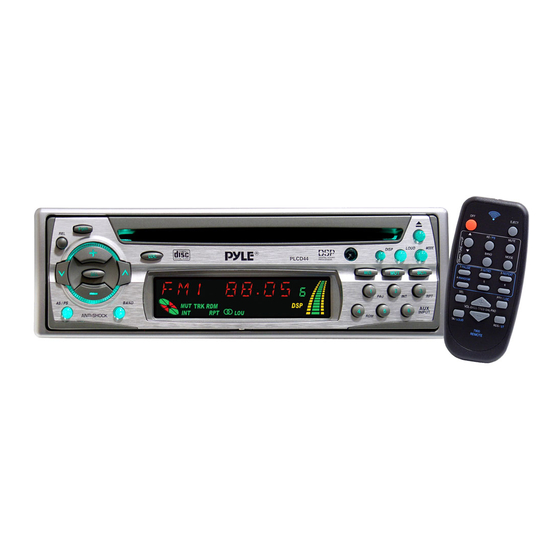

OWNER'S MANUAL ANTI-SHOCK COMPACT DISC PLAYER SUPER POWER OUTPUT AUXILIARY INPUT FACE DETACHABLE PANEL FM-AM FM-MPX RADIO RECEIVER WITH REMOTE CONTROL PLCD44 MODEL: Page. 1 P / N : 570-961612-05...
Page 2
LOCATION OF CONTROLS OPERATING INSTRUCTIONS POWER ON/OFF CONTROL Press the button to turn the power “ON” or “OFF”. Note : The unit can be turn on by pressing any keys on the panel (except panel release button & disc eject button). It will help the user who cannot find the power button in dark.
Page 3
PANEL RELEASE BUTTON This button is used to release the panel from the unit. To detach the front panel, press the button so that the left side of the panel is released. Grasp the released side and pull it off of the chassis. To re-attach the panel, insert the right side of the panel in place first and then press the left side of the panel until the chassis hold the panel firmly.
Page 4
WIRE CONNECTION RESET FUNCTION The RESET button is located on the front of main panel. It is recessed in order to prevent accidental engagement, and can be activated with the tip of a ball-point pen or any similar pointed object. This reset circuitry is provided in order to protect the unit's microprocessor, and should only be activated under the following conditions : a) Initial installation after all wiring is completed.
