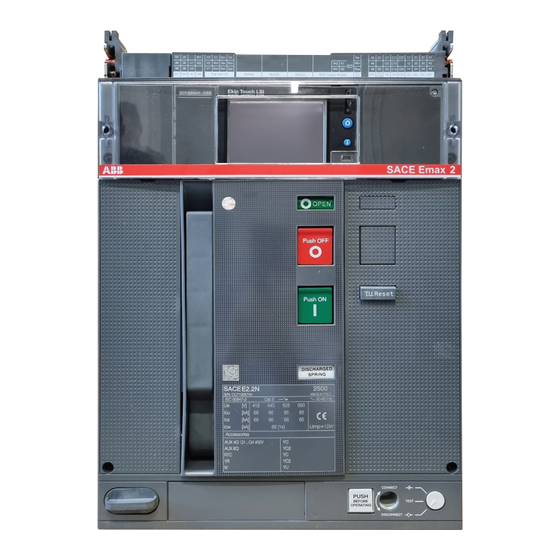

ABB EMAX 2 E2.2 Disassembly Instructions Manual

Hide thumbs Also See for EMAX 2 E2.2:

Advertisement

Quick Links

Download this manual
—
INSTRUCTION HANDBOOK
1SDH002304A1001 - ECN000285442
EMAX 2 E2.2
Disassembly instructions

Advertisement

loading

Related Manuals for ABB EMAX 2 E2.2

Summary of Contents for ABB EMAX 2 E2.2

  • Page 1 — INSTRUCTION HANDBOOK 1SDH002304A1001 - ECN000285442 EMAX 2 E2.2 Disassembly instructions...

  • Page 3: Safety Notes

    (type Ekip TOUCH). Document is focused on Emax 2 E2.2 3p IEC version, anyway it allows to cover other versions of Emax 2 E2.2 circuit breaker equipped with an electronic trip unit with just few slight differences to be taken into account.
  • Page 4 INSTRUCTION HANDBOOK 5. SEPARATE TREATMENT Table below lists parts requiring a separate treatment adding information about part location inside circuit breakers and related quantity. Description Position inside circuit breaker Quantity Base In sliding contacts block Cover In sliding contacts block Auxiliary position contacts cap In sliding contacts block Right side wall...

  • Page 5: Disassembly Process

    Disassembly instruction emaX 2 e2.2 Description Position inside circuit breaker Quantity Auxiliary flat assembly Mounted on the MID RTC micro lever Mounted in the MID MID main structure Mounted in the MID Springs charging lever Mounted on the operating mechanism...
  • Page 6 INSTRUCTION HANDBOOK 6.1 PHASE 1 – CIRCUIT BREAKER FRONT COVER AND OPERATING MECHANISM COVER Actions to be performed Tools Flat screwdriver Manually remove the trip unit transparent By means of the flat screwdriver turn of 90° cover. the 2 screws fixing the trip unit transparent protection to the circuit breaker.
  • Page 7 Disassembly instruction emaX 2 e2.2 By means of thr torx key unscrew the 2 screws Manually remove the 2 plugs. fixing the T.U. Reset assembly to the front cover. By means of the flat screwdriver remove the 2 Manually remove the T.U Reset assembly.
  • Page 8 INSTRUCTION HANDBOOK Manually push down the springs charging lever Manually remove the plug. and by means of the cross screwdriver unscrew the 2 screws located behind the springs charging lever fixing the operating mechanism cover to the circuit breaker main structure and always by means of the cross screwdriver unscrew the screw located in the bottom right part of the operating mechanism cover fixing...
  • Page 9 Disassembly instruction emaX 2 e2.2 Disassembled parts • 1 trip unit transparent protection (Plastic and Metal) • 1 racking in and out lever (Plastic and Metal) • 4 + 2 + 2 + 2 + 3 + 1 screws (Metal) •...
  • Page 10 INSTRUCTION HANDBOOK 6.2 PHASE 2 – SLIDING CONTACTS BLOCK Actions to be performed Tools Torx key Manually remove the 2 side walls located on By means of the torx key (size 30) unscrew the the sides of the sliding contact block. 2 + 2 screws fixing the 2 side walls located at No.
  • Page 11 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver push up the Manually remove the sliding contacts block. 3 flat cables assemblies and the connector cables assembly. Manually remove the 2 springs located at both Manually remove the auxiliary position sides of the sliding contacts block.
  • Page 12 INSTRUCTION HANDBOOK By means of the flat screwdriver unhook the Manually remove the right side wall. right side wall from the sliding contacts main assembly as indicated in the picture. By means of the cutter start removing the Insert 2 flat screwdrivers at the sides of each sliding contacts label located on the right side block, slightly push them as indicated by the wall and manually complete the operation.
  • Page 13 Disassembly instruction emaX 2 e2.2 Disassembled parts • 2 + 2 + 6 screws (Metal) • 2 side walls (Metal) • 1 base (Plastic) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) • 1 cover (Plastic) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) •...
  • Page 14 INSTRUCTION HANDBOOK 6.3 PHASE 3 – TRIP UNIT Actions to be performed Tools Torx key By means of the flat screwdriver unhook the By means of the torx key unscrew the 2 screws Ekip measuring blind module from the trip unit fixing the Ekip measuring blind module located No.
  • Page 15 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver unhook the By means of the cross screwdriver unscrew white connector located in the upper part of the 4 screws fixing the trip unit to the circuit the trip unit.
  • Page 16 INSTRUCTION HANDBOOK By means of the torx key unscrew the screw Manually remove the plug. fixing the plug to the trip unit. By means of the cutter start removing the label By means of the flat screwdriver remove the mounted over the plug removed at step before rating plug from the trip unit.
  • Page 17 Disassembly instruction emaX 2 e2.2 By means of the torx key unscrew the 2 screws Manually remove the Ekip signaling 4K plug fixing the Ekip signalling 4K plug to the trip from the trip unit main structure. unit main structure.
  • Page 18 INSTRUCTION HANDBOOK By means of the cutter start removing the By means of the flat screwdriver remove the trip unit front label and by means of the pliers battery cover on the left side of the display. complete the operation. Manually remove the battery.
  • Page 19 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver remove the Manually remove the battery gasket. “i TEST” pushbutton from the HMI LCD cover. By means of the flat screwdriver unhook the Manually remove the display support. display printed circuit board from the display support.
  • Page 20 INSTRUCTION HANDBOOK By means of the torx key unscrew the 4 screws Manually complete the removal operation of fixing the backplane to the trip unit main the backplane. structure. By means of the torx key unscrew the 4 screws By means of the cutter start removing the fixing the trip unit case to the trip unit back blind label located on the side of the trip unit cover.
  • Page 21 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver unhook the Manually remove trip unit printed circuit board. trip unit printed circuit board. Disassembled parts • 2 + 2 + 4 + 1 + 2 + 1 + 4 + 4 screws (Metal) •...
  • Page 22 INSTRUCTION HANDBOOK 6.4 PHASE 4 – TERMINAL BOX Actions to be performed Tools Flat screwdriver Manually unhook the connector indicated by Manually unhook the connector indicated by the arrow fixing the terminal box case to the the arrow fixing the terminal box case to the Torx key circuit breaker main structure.
  • Page 23 Disassembly instruction emaX 2 e2.2 Push the flat screwdriver in the direction By means of the flat screwdriver separate the indicated by the arrow and after manually 4 micro I/O assembly cover from the 4 micro remove the microswitch assembly.
  • Page 24 INSTRUCTION HANDBOOK By means of the flat screwdriver unhook the By means of the flat screwdriver push the 2 2 microswitches from their support and after connectors as indicated by the arrow and after separate the microswitches support from the manually complete the removal.
  • Page 25 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver push the pin as indicated by the arrow and let the the I/O shaft, the I/O shaft group support and the leaf spring constituting the I/O shaft group separate.
  • Page 26 INSTRUCTION HANDBOOK 6.5 PHASE 5 – LEFT MID AND CABLE GUIDE Actions to be performed Tools Cross screwdriver Manually remove the left MID from the circuit By means of the cross screwdriver unscrew the breaker main structure. screw fixing the left MID to the circuit breaker Torx key main structure.
  • Page 27 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver remove the clip and after manually complete the removal. Disassembled parts • 1 + 2 + 1 screws (Metal) • 1 left MID (Plastic and Metal) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) •...
  • Page 28 INSTRUCTION HANDBOOK 6.6 PHASE 6 – CD Actions to be performed Tools Cross screwdriver By means the Allen key unscrew the screw By means the Allen key unscrew the 2 screws located in the front part of the circuit breaker located in the rear part of the circuit breaker that fixes the CD to the main structure of the that fix the CD to the main structure of the...
  • Page 29 Disassembly instruction emaX 2 e2.2 By means of the flat screwdriver push the pin By means of the cross screwdriver unscrew the as indicated by the arrow and let the spring 2 screws fixing the front of the CD to the CD and the CD block cover separate from the main structure.
  • Page 30 INSTRUCTION HANDBOOK By means of the flat screwdriver remove the By means of the pliers remove the spring and benzing. let the pin and the CD block lever separate from the CD base. Disassembled parts • 2 + 1 + 2 + 2 screws (Metal) •...
  • Page 31 Disassembly instruction emaX 2 e2.2 6.7 PHASE 7 – MID Actions to be performed Tools Cross screwdriver By means of the cross screwdriver unscrew the By means of the cross screwdriver unscrew 2 screws fixing the MID to the circuit breaker...
  • Page 32 INSTRUCTION HANDBOOK By means of the pliers unhook and remove the By means of the pliers unhook and remove the spring indicated by the arrow mounted on the spring indicated by the arrow mounted on the MID main structure. MID main structure. By means of the flat screwdriver remove the 6 By means of the flat screwdriver, manually and benzings.
  • Page 33 Disassembly instruction emaX 2 e2.2 Manually remove the assembly mounted on the By means of the flat screwdriver remove the 2 MID main structure. benzings mounted on the assembly mounted on the MID main structure. Manually remove the pin and let all the other...
  • Page 34 INSTRUCTION HANDBOOK By means of the flat screwdriver slightly lift By means of the torx key (size 6) unscrew the 2 up the appendix as indicated by the arrow and screws fixing the trip coil support base to the manually remove the trip coil assembly. trip coil cover.
  • Page 35 Disassembly instruction emaX 2 e2.2 Manually remove the flat cover. By means of the flat screwdriver unhook as indicated by the arrow the flat cover from the MID main structure. Manually remove the auxiliary flat assembly. By means of the flat screwdriver remove the benzing.
  • Page 36 INSTRUCTION HANDBOOK Disassembled parts • 1 + 2 + 1 + 2 + 1 screws (Metal) • 1 releases door (Plastic + Metal) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) • 1 + 1 + 1 + 2 + 1 springs (Metal) •...
  • Page 37 Disassembly instruction emaX 2 e2.2 6.8 PHASE 8 – SHOULDERS Actions to be performed Tools Torx key By means of the torx key unscrew the 2 screws Put the circuit breaker in horizontal position fixing the left support to the left shoulder.
  • Page 38 INSTRUCTION HANDBOOK Manually remove the assembly shaft. By means of the torx key unscrew the 3 screws fixing the motor fixing plate and the support mounted in the bottom part of the circuit breaker main structure and after manually remove the motor fixing plate and the support. By means of the torx key unscrew the 4 screws Manually remove the left shoulder from the fixing the left shoulder to the circuit breaker...
  • Page 39 Disassembly instruction emaX 2 e2.2 Insert the flat screwdriver as indicated in the By means of the cutter start removing the label picture and slightly push it down and after located on the right shoulder and manually manually remove the right shoulder.
  • Page 40 INSTRUCTION HANDBOOK 6.9 PHASE 9 – OPERATING MECHANISM Actions to be performed Tools Torx key Manually remove the setting plate. By means of the torx key unscrew the 4 screws fixing the setting plate to the upper cross beam. No. 30 Cross screwdriver Flat screwdriver By means of the torx key unscrew the 6 screws...
  • Page 41 Disassembly instruction emaX 2 e2.2 Unhook the 2 levers from the operating By means of the flat screwdriver remove the 2 mechanism. benzings fixing the 2 levers to the operating mechanism. By means of the flat screwdriver remove the 2 By means of the flat screwdriver remove the benzings.
  • Page 42 INSTRUCTION HANDBOOK By means of the flat screwdriver remove the By means of the flat screwdriver remove the benzing. benzing and let the pin and the lever separate. by gravity. Slightly push the flat screwdriver as indicated Lift the operating mechanism and by means by the arrow and after unhook the opening of the flat screwdriver unhook and remove the springs group.
  • Page 43 Operating mechanism contains springs: their removal constitutes a potential hazard if not performed in the proper way and using dedicated tools. Based on this ABB indication is not to remove them from the operating mechanism and to manage the assembly with the maximum level of attention during disassembly and dismantle phases.
  • Page 44 INSTRUCTION HANDBOOK 6.10 PHASE 10 – OPERATING SHAFT ASSEMBLY Actions to be performed Tools Cross screwdriver Manually lift the operating shaft assembly and Manually lift the operating shaft assembly and by means of the flat screwdriver remove the 3 by means of the flat screwdriver remove the 3 pins.
  • Page 45 Disassembly instruction emaX 2 e2.2 By means of 2 flat screwdrivers remove the Manually remove the cam. benzing. Manually remove the lever. Disassembled parts • 3 + 1 benzings (Metal) • 3 pins (Metal) • 1 + 1 screws (Metal) •...
  • Page 46 INSTRUCTION HANDBOOK 6.11 PHASE 11 – POLES SEPARATION Actions to be performed Tools Torx key Manually remove the operating mechanism By means of the torx key unscrew the 3 screws fixing plate and the lower cross beam. fixing the operating mechanism fixing plate No.
  • Page 47 Disassembly instruction emaX 2 e2.2 Disassembled parts • 3 screws (Metal) • 1 operating mechanism fixing plate (metal) • 1 lower cross beam • 2 tie rods (Metal) • 1 measuring module connector (Plastic and Metal) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) •...
  • Page 48 INSTRUCTION HANDBOOK 6.12 PHASE 12 – TERMINALS AND CLAW CONTACTS Actions to be performed Tools Torx key Manually remove the terminals and their By means of the torx key (size 40) unscrew protections. the 4 screws fixing the terminals and their No.
  • Page 49 Disassembly instruction emaX 2 e2.2 Disassembled parts • 12 screws (Metal) • 6 terminals (Metal) • 6 protections (Plastic) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants)
  • Page 50 INSTRUCTION HANDBOOK Tools Torx key Circuit breakers in IEC version characterized by a current rating up to 2000A show differences at level of parts involved in this disassembly phase, consequently here below an analogous section is provided for these circuit breakers. No.
  • Page 51 Disassembly instruction emaX 2 e2.2 Disassembled parts • 12 screws (Metal) • 6 terminals (Metal) • 6 protections (Plastic) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants)
  • Page 52 INSTRUCTION HANDBOOK Tools Torx key Circuit breakers in UL version characterized by a current rating of 2000A show differences at level of parts involved in this disassembly phase, consequently here below an analogous section is provided for these circuit breakers. No.
  • Page 53 Disassembly instruction emaX 2 e2.2 Manually remove the terminals and their Manually separate the terminals and their protections. protections. Disassembly operations illustrated at pictures 201, … , 206 must be performed on the other 2 poles. Disassembled parts • 24 + 12 screws (Metal) •...
  • Page 54 INSTRUCTION HANDBOOK Tools Torx key Circuit breakers in UL version characterized by a current rating up to 1600A show differences at level of parts involved in this disassembly phase, consequently here below an analogous section is provided for these circuit breakers. No.
  • Page 55 Disassembly instruction emaX 2 e2.2 Manually remove the terminals and their Manually separate the terminals and their protections. protections. Disassembly operations illustrated at pictures 207, … , 212 must be performed on the other 2 poles. Disassembled parts • 12 + 12 screws (Metal) •...
  • Page 56 INSTRUCTION HANDBOOK 6.13 PHASE 13 – ARCHING CHAMBERS Actions to be performed Tools Torx key Manually remove the arching chamber. By means of the torx key unscrew the 2 screws fixing the arching chamber to the pole. No. 30 Cross screwdriver Flat screwdriver By means of the flat screwdriver unhook the 2 Manually remove the arc quenching and...
  • Page 57 Disassembly instruction emaX 2 e2.2 Manually separate the arc quenching and the By gravity let the plates come out from the plate. arching chamber main structure. By means of the cross screwdriver unscrew the Manually remove the arching chamber cover 6 screws fixing the arching chamber cover to the arching chamber main structure.
  • Page 58 INSTRUCTION HANDBOOK By gravity let the 2 filters and the spacer separate from the arching chamber shell. Disassembled parts • 6 + 18 screws (Metal) • 6 arc quenchings (Plastic) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) • 6 plates (GP0-3) •...
  • Page 59 Disassembly instruction emaX 2 e2.2 6.14 PHASE 14 – POLES Actions to be performed Tools Allen key Manually remove the sensor cover. By means of the allen key unscrew the 2 screws fixing the sensor cover to the pole. Torx key No.
  • Page 60 INSTRUCTION HANDBOOK By means of the torx key (size 25) unscrew the Manually unhook the cable from the sensor. 2 screws located in the back part of the pole. By means of the torx key (size 25) unscrew the By means of the hammer start separating the 4 screws located in the left side of the pole.
  • Page 61 Disassembly instruction emaX 2 e2.2 Manually remove the insulating protection. Manually remove the bush. Manually remove the fixed contact. Manually remove the arc deflector protection present on the fixed contact. Manually remove the mobile contact. By means of the cross screwdriver unscrew the 2 screws fixing the jumper to the mobile contact assembly.
  • Page 62 INSTRUCTION HANDBOOK By means of the flat screwdriver push the pin Manually remove the jumper. as indicated by the arrow. Manually remove the pin and the tie rod. By means of the flat screwdriver unhook both appendices of the insulation protection. Manually remove the insulation protection.
  • Page 63 Disassembly instruction emaX 2 e2.2 Manually separate the mobile contact from its Manually remove the pin. contacts holder. Manually remove the contacts spacer. Manually remove the 8 springs mounted on the contacts holder. By means of the flat screwdriver slightly push Manually remove the 3 shoulders.
  • Page 64 INSTRUCTION HANDBOOK Disassembled parts • 6 + 3 + 6 + 12 + 6 screws (Metal) • 3 sensor covers (Plastic) • 3 cables covers (Plastic) • 3 wires (Plastic and Metal) • 3 sensor plugs (Plastic) SEPARATE TREATMENT (Thermoplastics containing brominated flame retardants) •...
  • Page 65 Disassembly instruction emaX 2 e2.2 7. ENERGY CONSUMPTION FOR CIRCUIT BREAKERS DISASSEMBLY Since all disassembly operations illustrated in this document are manual, the CO equivalent emissions can be considered null/negligible.
  • Page 66 INSTRUCTION HANDBOOK...
  • Page 67 Disassembly instruction emaX 2 e2.2...
  • Page 68 — ABB SACE A division of ABB S.p.A. L.V. Breakers Via Pescaria 5, 24123 Bergamo - Italy Phone: +39 035 395.111 Fax: +39 035 395.306-433 abb.it/lowvoltage © Copyright 2022 ABB. All rights reserved. Specifications subject to change without notice.
