Scotsman TC180 Cleaning & Sanitizing Procedure

Scotsman TC180 Cleaning & Sanitizing Procedure

Ac/ec self contained cuber
Hide thumbs Also See for TC180:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
AC/EC Self Contained
Cuber
Cleaning & Sanitizing Procedure
Hubbard Systems – 01473 350045
Revision - 29/5/2015
Note - This document is to give the preferred instruction as to how cleaning and sanitising of the self contained
ice machine is completed. This does not replace the instruction given within the full service manual, but to
assist and supplement it.
Cleaning should only be undertaken by competent or trained personnel.
Note - Good hygiene working practice should be undertaken before and during any cleaning regime.

Advertisement

loading

Related Manuals for Scotsman TC180

Summary of Contents for Scotsman TC180

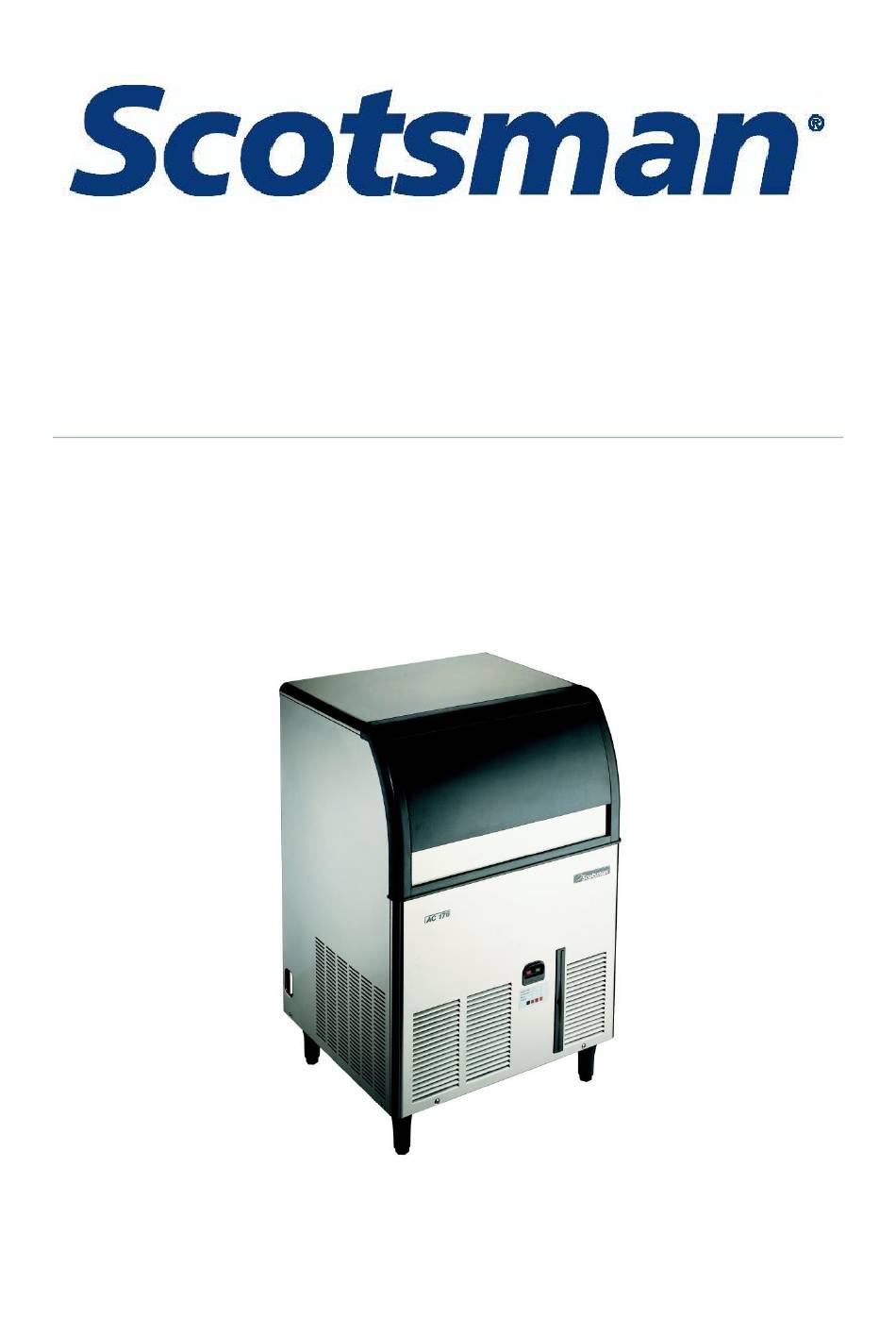

  • Page 1 AC/EC Self Contained Cuber Cleaning & Sanitizing Procedure Hubbard Systems – 01473 350045 Revision - 29/5/2015 Note - This document is to give the preferred instruction as to how cleaning and sanitising of the self contained ice machine is completed. This does not replace the instruction given within the full service manual, but to assist and supplement it.

  • Page 2: Cleaning Schedule

    Cleaning Schedule WARNING; Before carrying out any cleaning operation, please ensure that the ice maker is disconnected from the electrical supply. NOTE – If external stainless steel panels are not cleaned regularly, brown stains could begin to show. It is important to prevent these brown stains forming on these stainless steel surfaces otherwise there is a risk of a chemical reaction which could penetrate the chromium oxide film, this could result in a ‘rust’...
  • Page 3 Suggested Monthly Cleaning Procedure: Follow the above procedure for ‘Weekly cleaning’ and also include the following…………… 4. Remove the plastic cap & spring located on the bottom of sump/freezing chamber to drain out all water and scale deposits. (On the AC/EC 206 & 226 remove the plastic sump cap in the storage bin) 5.
  • Page 4 Quarterly & Bi-Annual - Cleaning/Sanitising Procedure. CLEANING/SANITISING INSTRUCTIONS OF WATER SYSTEM Clean/Sanitise the water system, evaporator, bin and spray jets using a solution of a suitable Ice Machine Cleaner/Sanitiser. NOTE. Cleaning requirements vary according to the local water conditions and individual user operation.
  • Page 5 AC/EC 46 through 176 AC/EC206 & 226 6. Lift up the entire spray platen from its bottom seat and take it out to clean it separately. The spray bar on the 206/226 is located onto a spigot in the sump area. 7.
  • Page 6 13. Ensuring that the unit is isolated at the master button switch, flush out the cleaning solution from the sump reservoir by taking off the sump plastic cup. Once flushed out, install again the sump plastic cap. 14. Pour over the evaporator two or three litres of clean potable water to rinse the mold cups and the evaporator platen.
