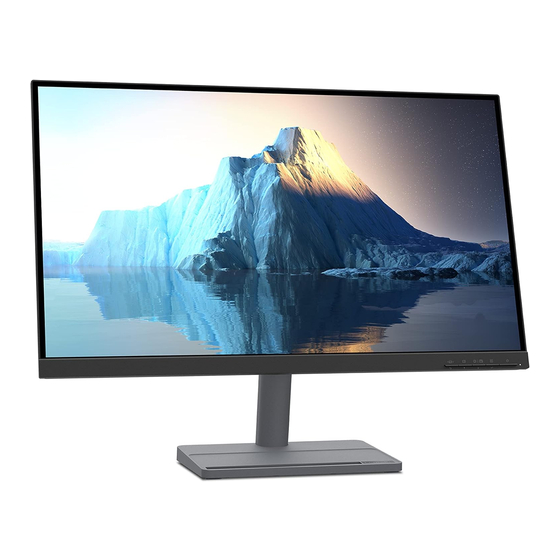

- Page 1 L27q-35 Simplified service manual for dismantling Model Name: Lenovo L27q-35...
- Page 2 Exploded Diagram...
- Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth and sponge as working platform to place LCD monitor horizontally.
- Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver (#2) C/D disassembly tool Gloves or soft cloth...
- Page 5 3. Disassembly SOP Put the monitor on a flat surface (Put the EPE on under the monitor) Release the detached screw, then pull out the stand base Tool : Screwdriver #2 Use the C/D disassembly tool to release Rear cover hook from disassemble hole on bottom Remove the rear cover...
- Page 6 Unplug the keypad cable, then release the keypad PCB from the middle frame Remove All tape and foil Unplug light bar wire...
- Page 7 Remove all screw: 12+2 pcs Remove middle frame from panel Tool : Screwdriver #2 Unplug light two LVDS wire, tear off AL Release main bracket from panel Release the speaker’s cable from the hooks, then take out the mylar sheet from Main chassis...
- Page 8 Remove 8pcs screw. Tool : Screwdriver #2 Take out PCB and Peel off all mylar Unplug two speakers from the probers of main chassis Take out the Thermal pads from Power PCB...
