SECO-LARM ENFORCER EV-N6506-3W4Q Manual

Ip covert pir camera
Hide thumbs Also See for ENFORCER EV-N6506-3W4Q:
Table of Contents

Advertisement

Quick Links

Download this manual

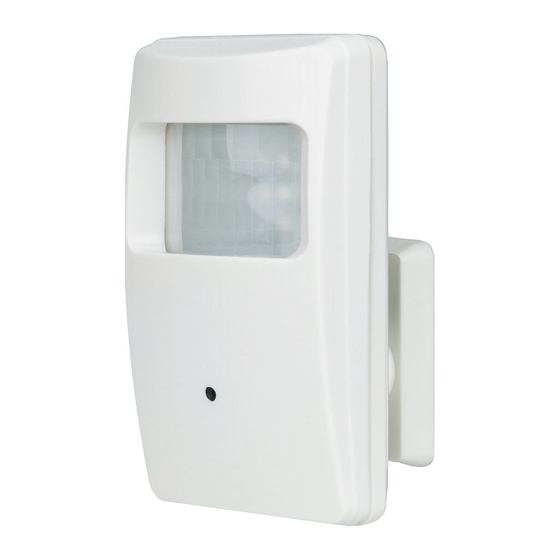

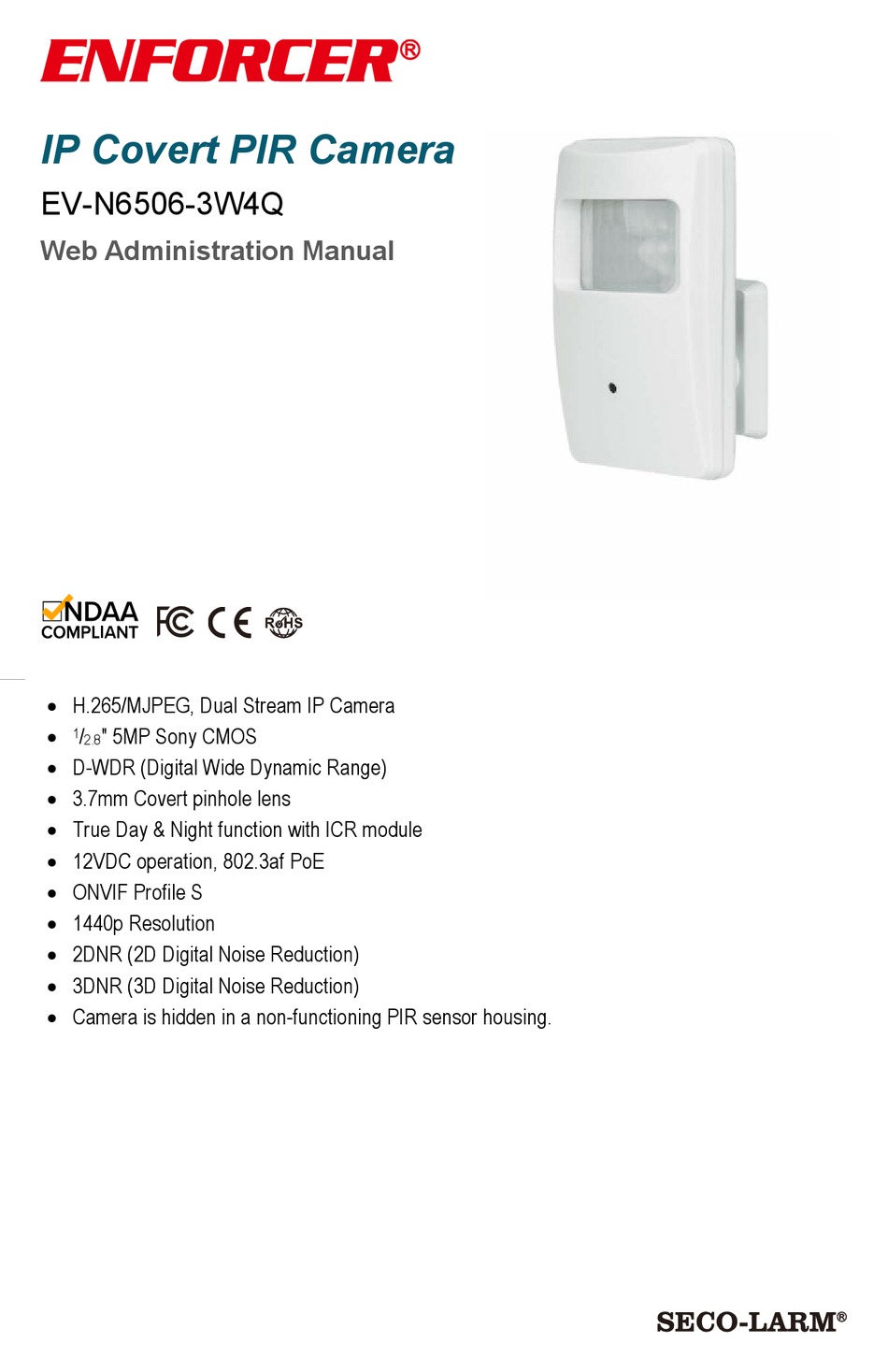

IP Covert PIR Camera
EV-N6506-3W4Q
Web Administration Manual
 H.265/MJPEG, Dual Stream IP Camera
/
" 5MP Sony CMOS
1
2.8
 D-WDR (Digital Wide Dynamic Range)
 3.7mm Covert pinhole lens
 True Day & Night function with ICR module
 12VDC operation, 802.3af PoE
 ONVIF Profile S
 1440p Resolution
 2DNR (2D Digital Noise Reduction)
 3DNR (3D Digital Noise Reduction)
 Camera is hidden in a non-functioning PIR sensor housing.

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM ENFORCER EV-N6506-3W4Q

Summary of Contents for SECO-LARM ENFORCER EV-N6506-3W4Q

  • Page 1 IP Covert PIR Camera EV-N6506-3W4Q Web Administration Manual  H.265/MJPEG, Dual Stream IP Camera " 5MP Sony CMOS   D-WDR (Digital Wide Dynamic Range)  3.7mm Covert pinhole lens  True Day & Night function with ICR module  12VDC operation, 802.3af PoE ...

  • Page 2: Table Of Contents

     ambient light that triggers the camera to switch between color and B/W modes. – Digital Noise Reduction (DNR) Adjust  for less interference on the screen in an area with low illumination. DNR OFF DNR ON SECO-LARM U.S.A., Inc.

  • Page 3: Accessing The Ip Camera Interface

    Remote Setting – The Remote Setting tab allows for full configuration of the IP camera's  settings. Local Setting – The Local Setting tab allows for search and review of programmed alarms.  Log Out – Press the Log out tab to log out completely of the IP camera interface.  SECO-LARM U.S.A., Inc.

  • Page 4: Color Settings

    The alarm log records the camera’s alarm features. Displaying the alarm type, date, time, device, and channel. Use the checkboxes to select the alarm type to be displayed. Operation Prompt – Check the display operation  log. SECO-LARM U.S.A., Inc.

  • Page 5: Remote Setting-Alarm

    Alarm Interval – Set the Alarm  seconds). Interval in seconds (default = 0). Snapshot Channel – Default = 1. Refresh – Reload current page.   PTZ Activation – Not supported. Save – Click save.   SECO-LARM U.S.A., Inc.

  • Page 6: Remote Setting-Alarm-Video Blind

    FTP upload – Check to send alert to a FTP server.  Mobile reported – Not supported.  Write log – Check to write to the log file.  Refresh – Reload current page.  Save – Click save.  SECO-LARM U.S.A., Inc.

  • Page 7: Remote Setting-Alarm-Vehicle Detection

    Send Email – Check to send alert using email.  Mobile reported – Not supported.  Write log – Check to write to the log.  Refresh – Reload current page.  Save – Click save.  SECO-LARM U.S.A., Inc.

  • Page 8: Remote Setting-Alarm-Video Loss

    FTP upload – Check to send alert to a FTP server.  Mobile reported – Not supported.  Write log – Check to write to the log file.  Refresh – Reload current page.  Save – Click save.  SECO-LARM U.S.A., Inc.

  • Page 9: Remote Setting-Alarm-Abnormal

     NetService – Services available.  Display – OSD configurations.  PTZ Config – PTZ configurations.  RS232 – Serial port configurations.  Camera param. – Advanced camera configurations.  Color param. – Advanced color configurations.  SECO-LARM U.S.A., Inc.

  • Page 10: Remote Setting-System-General

     Auto Logout – Set a time limit in minutes to automatically log off (default = 0).  MachineName – Set MachineName (default = LocalHost).  Refresh – Reload current page.  Save – Click save.  SECO-LARM U.S.A., Inc.

  • Page 11: Remote Setting-System-Encode

     profile takes up more space for the stream, but the picture quality is better. Smart Encode – Select to use smart encoding on H.265+.  Refresh – Reload current page.  Save – Click save.  SECO-LARM U.S.A., Inc.

  • Page 12: Remote Setting-System-Network

    Fluency Preferred – Changes the encoder settings and lowers the stream without reducing  frame rate to ensure a smoother video. Network Priority – Limits the users that can view the camera simultaneously. Users with  higher bandwidth will take priority. SECO-LARM U.S.A., Inc.

  • Page 13: Remote Setting-System-Netservice

    RTSP – Real Time Streaming Protocol – used to stream camera video over network.  Cloud – Set up a third-party cloud provider.  Mobile reported – Not supported.  Serial pass-through – Configure RS232 settings.  Refresh – Reload current page.  Save – Click save.  SECO-LARM U.S.A., Inc.

  • Page 14: Remote Setting-System - Display

    Channel Title – Check to display  channel on screen. Setting – Configure the position  of the user interface. Refresh – Reload current page.  Save – Click save.  NOTE: Setting: System – PTZ Config: Not Supported. SECO-LARM U.S.A., Inc.

  • Page 15: Remote Setting-System-Rs232

     Stop Bits – Set stop bits (1 – 2) (default = 1).  Parity – Set parity (None, Odd, Even, Mark, Space) (default = None).  Refresh – Reload current page.  Save – Click save. SECO-LARM U.S.A., Inc.

  • Page 16: Remote Setting-System-Camera Param

    Defogging – Turn defogging Open (On) or Close (Off) (default = Close).  Front end command – Send a communication to front end.  Send Save Mirror – Check to mirror image.  Flip – Check to flip image.  SECO-LARM U.S.A., Inc.

  • Page 17: Remote Setting-Advanced

    Contrast – Adjust the contrast of the Restore – Restore default settings.   video image. Refresh – Reload current page.  Saturation – Adjust the saturation of  OK – Click OK to save.  the video image. SECO-LARM U.S.A., Inc.

  • Page 18: Remote Setting-Advanced-Account

     Add Group – Add user group.  Modify Group – Set the permissions for the user group.  Delete Group – Delete user group.  Security – Configure secret questions in case password is forgotten.  SECO-LARM U.S.A., Inc.

  • Page 19: Remote Setting-Advanced-Default

    Click Save to save. Remote Setting Advanced Import Export – – Config Import – Click to import config file.  Config Export – Click to export config file.  Log Export – Click to export log file.  SECO-LARM U.S.A., Inc.

  • Page 20: Remote Setting-Advanced-Upgrade

    Browse – Select firmware update file.  Send – Click Send to start the upgrade process.  Remote Setting – Info Log – View Log file.  Version – View software version.  QR Code – Not supported.  SECO-LARM U.S.A., Inc.

  • Page 21: Remote Setting-Info-Version

    Start Time – Select start time for search.  End Time – Select end time for search.  Search – Fill in the start and end time and click search to display log.  Setting – Info – Version: Display all the device information. SECO-LARM U.S.A., Inc.

  • Page 22: Troubleshooting

    IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.
