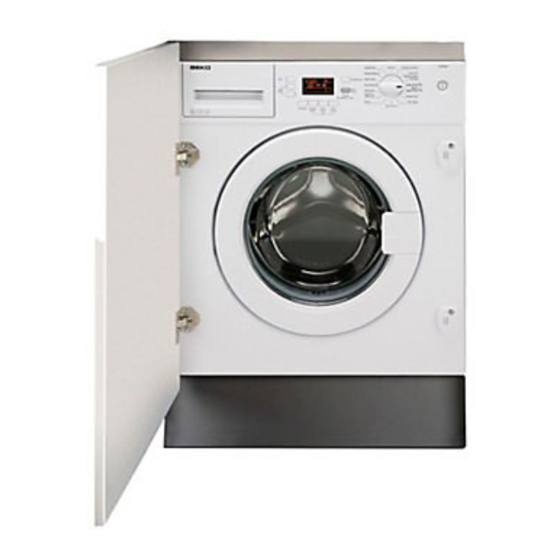

- Page 1 Washing Machine User Manual QWM84 Document Number= 2820523669/ 27-12-16.(13:08)
- Page 2 Please read this user manual first! Dear Customer, Thank you for prefering an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 General safety instructions 5.7 Special programmes....24 5.8 Temperature selection ....24 1.1 Life and property safety . -
Page 4: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety • Never place the product on a carpet-covered floor. Electrical parts will get over- heated since air cannot circulate from under the device. This will cause problems with your product. -
Page 5: Electrical Safety
Important instructions for safety and environment • store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. 1.3 Electrical safety • If the product has a failure, it should not be operated unless it is repaired by the Authorised Service Agent. Risk of electric shock! • This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see “Cancelling the programme”... -
Page 6: Hot Surface Safety
Important instructions for safety and environment 1.4 Hot surface safety While washing the laundry at high temperatures, the loading door glass will get hot. Considering this fact, during washing operation keep the children away from the loading door of the product to prevent them touching it. -
Page 7: Intended Use
Important instructions for safety and environment 1.7 Intended use • This product has been designed for domestic use. It is not for commercial purpo- ses or it should not be used out of its intended use. • The product must only be used for washing and rinsing of laundry that are mar- ked accordingly. • The manufacturer waives any responsibility arisen from incorrect usage or trans- portation. • The service life of your product is 10 years. During this period, original spare parts will be available to operate the appliance properly. 7 / EN Washing Machine /User’s Manual... -
Page 8: Your Washing Machine
Your washing machine 2.1 Overview 1- Power cable 5- Adjustable feet 2- Top panel 6- Loading door 3- Control panel 7- Detergent drawer 4- Filter cap 8- Drain hose 8 / EN Washing Machine /User’s Manual... -
Page 9: Package Contents
Your washing machine 2.2 Package Contents 1- Power cable 2- Drain hose 3- Transportation safety bolts * 4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronical water shut-off b- Mechanical water shut-off c- Standard 5- User Manual 6- Blind plug**... -
Page 10: Technical Specifications
Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark Beko Model name QWM84 Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 1.389... -
Page 11: Installation
Installation To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out. -
Page 12: Connecting Water Supply
Installation Open the taps completely after making Keep the transportation safety the hose connection to check for water bolts in a safe place to reuse when the washing machine needs to be leaks at the connection points. If any leaks moved again in the future. occur, turn off the tap and remove the nut. -
Page 13: Adjusting The Feet
Installation 2. Adjust the feet until the product stands level and balanced. 3. Tighten all lock nuts again by hand. • To prevent flowing of dirty water back into the machine and to allow for easy discharge, do not immerse the hose end into the dirty water or do not drive it in the drain more than 15 cm. - Page 14 Installation electricity supply. 3 Connect the brown (live) wire to the We recommend that this appliance be terminal in the plug marked ‘L’ or coloured connected to the mains supply via a suitable red. switched and fused socket in a readily With the alternative plugs a 13A fuse must be accessible position.
-
Page 15: Preparation
Preparation 4.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Machine Wash Symbols WASH Maximum Water Temperatures Symbol(s) Drying Suitable for No Iron Do not dry- Sensitive / Do not dry Do not dry Symbols... -
Page 16: Preparing Laundry For Washing
Preparation 4.2 Preparing laundry for washing 4.3 Things to be done for energy saving • Laundry items with metal attachments such as, underwired bras, belt buckles or metal Following information will help you use the buttons will damage the machine. Remove product in an ecological and energy-efficient the metal pieces or wash the clothes by manner. -
Page 17: Correct Load Capacity
Preparation Laundry type Weight (g) Bathrobe 1200 Napkin Duvet cover Bed Sheet Pillowcase Tablecloth Towel Hand towel Use an anti-limescale suitable for the Evening gown washing machines. Underclothing Some water might have remained in Men’s overalls the product due to the quality control Men’s shirt processes in the production. - Page 18 Preparation relevant time during the washing Programme. (II) Main Wash Compartment Do not place the laundry additives directly into Before starting the washing Programme, put the drum. Always use the detergent drawer. powder detergent into the left compartment Do not close the drawer too fast after with number “II”.
- Page 19 Preparation Liquid softener will be dispensed Bleaches automatically at the final rinsing step of the If you are going to use regular bleach in washing Programme. your machine, it is suggested to select a (I) Pre-Wash Compartment Programme with pre-wash step and add Put the powder pre-wash detergent or the bleach at the beginning of the pre-wash powder stain remover into the middle...
-
Page 20: Tips For Efficient Washing
Preparation 4.8 Tips for efficient washing Clothes Light colours and Delicates/ Colours Dark colours whites Woolens/Silks (Recommended (Recommended (Recommended (Recommended temperature range temperature range temperature range temperature range based based on soiling level: based on soiling based on soiling level: on soiling level: cold-40ºC) 40-90ºC) level: cold-40ºC) -
Page 21: Operating The Product
Operating the product 5.1 Control panel Spin Speed Adjustment button On / Off button Display Delayed Start buttons (+ / -) Temperature Adjustment button Auxiliary Function buttons Programme Selection knob Start / Pause / Cancel button 5.2 Display symbols - Spin Speed indicator - Temperature indicator - Spin symbol - Temperature symbol... -
Page 22: Preparing The Machine
Operating the product 5.3 Preparing the machine 5.5 Main programmes 1. Make sure that the hoses are connected Depending on the type of fabric, use the tightly. following main programmes. • Cottons 2. Plug in your machine. 3. Turn the tap on completely. Use this programme for your cotton laundry 4. - Page 23 Operating the product of the programme if you wash less amount • Intensive (e.g. ½ capacity or less) of laundry. In this You can wash your durable and heavily soiled case energy and water consumption will be clothes on this program. This program washes further decreased giving you the opportunity for a longer time and an extra rinse cycle will for a more economical wash.
-
Page 24: Special Programmes
Operating the product If you scroll to cold wash option and 5.7 Special programmes press Temperature Adjustment button For specific applications, select any of the again, the recommended temperature following programmes. for the selected programme appears on the display. Press the Temperature •... -
Page 25: Programme And Consumption Table
Operating the product 5.10 Programme and consumption table Auxiliary functions Selectable Programme (°C) temperature range °C Cottons 2.40 1600 • • • • • 90-Cold Cottons 1.70 1600 • • • • • 90-Cold Cottons 0.95 1600 • • • •... - Page 26 Operating the product ** “Cotton eco 40°C and Cotton eco 60°C are standard cycles.” These cycles are known as ‘40°C cotton standard cycle’ and ‘60°C cotton standard cycle’ and indicated with the symbols on the panel. The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
-
Page 27: Auxiliary Function Selection
Operating the product 5.11 Auxiliary function selection • Prewash A Prewash is only worthwhile for heavily Select the desired auxiliary functions before soiled laundry. Not using the Prewash will save starting the programme. Furthermore, you energy, water, detergent and time. may also select or cancel auxiliary functions F1 appears on the display when you select this that are suitable to the running programme... -
Page 28: Time Display
Operating the product want to drain the water without spinning your Delayed start laundry. Programme will resume and complete With the Delayed Start function the startup after draining the water. of the programme may be delayed up to 24 If you want to spin the laundry held in water, hours. -
Page 29: Starting The Programme
Operating the product Cancelling the Delayed Start function rinse If you want to cancel the delayed start Rinse symbol indicating that the rinsing step countdown and start the programme has started appears on the display. Softener immediately: 1. Press Start / Pause / Cancel button. “:” sign in Softener symbol indicating that the softener the middle of the delayed start time on the step has started appears on the display. -
Page 30: Child Lock
Operating the product 5.17 Child Lock Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme. You can switch on and off the machine Changing the speed and temperature with On / Off button when the Child settings for auxiliary functions Lock is active. -
Page 31: Cancelling The Programme
Operating the product 5.18 Cancelling the programme 5.20 End of programme Press and hold Start / Pause / Cancel button for “End” appears on the display at the end of 3 seconds. Start symbol flashes. Symbol of the the programme. Symbols of the programme step at which the programme was cancelled steps remain lit. -
Page 32: Maintenance And Cleaning
Maintenance and cleaning 6.2 Cleaning the loading door and Service life of the product extends and frequently faced problems decrease if cleaned the drum at regular intervals. Residues of softener, detergent and dirt 6.1 Cleaning the detergent drawer may accumulate in your machine in time and may cause unpleasant odours and washing Remove any powder residue buildup in the complaints. -
Page 33: Cleaning The Body And Control Panel
Maintenance and cleaning 6.5 Draining remaining water and WArNING: Never use sponge or cleaning the pump filter scrub materials. These will damage the painted and plastic surfaces. The filter system in your machine prevents solid items such as buttons, coins and fabric 6.3 Cleaning the body and control fibers clogging the pump impeller during panel... - Page 34 Maintenance and cleaning a. Pull the emergency draining hose out from its seat b. Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose. When the container is full, block the inlet of the hose by replacing the plug.
-
Page 35: Troubleshooting
Troubleshooting Problem reason Solution Programme does not start Start / Pause / Cancel button was not pressed. • *Press the Start / Pause / Cancel button. after closing the door. Programme cannot be Washing machine has switched to self • Press and hold Start / Pause / Cancel protection mode due to a supply problem (line button for 3 seconds to reset the machine started or selected. - Page 36 Troubleshooting Problem reason Solution Washing takes longer Water pressure is low. • Machine waits until taking in adequate amount of water to prevent poor washing time than specified in the quality due to the decreased amount manual.(*) of water. Therefore, the washing time extends.
- Page 37 Troubleshooting Problem reason Solution Washing performance is Insufficient amount of detergent has been • Use the recommended amount of used over a long period of time. detergent appropriate for water hardness poor: Laundry turns grey. and the laundry. (**) Washing was made at low temperatures for •...
- Page 38 Troubleshooting Problem reason Solution It does not rinse well. The amount, brand and storage conditions of • Use a detergent appropriate for the the detergent used are inappropriate. washing machine and your laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 39 Troubleshooting Problem reason Solution Detergent residue in the Detergent is put in wet drawer. • Dry the detergent drawer before putting in detergent. detergent drawer. (**) Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 40 Troubleshooting Problem reason Solution Laundry remains Excessive foam might have occurred and • Use recommended amount of detergent. automatic foam absorption system might have wet at the end of the been activated due to too much detergent programme. (*) usage. (*) Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
-
Page 41: Built-In Installation
BUILT-IN INSTALLATION GUIDE BUILT-IN INSTALLATION 820 mm 153 mm 41 / EN Washing Machine /User’s Manual... - Page 42 42 / EN Washing Machine /User’s Manual...
- Page 43 43 / EN Washing Machine /User’s Manual...
- Page 44 44 / EN Washing Machine /User’s Manual...
- Page 45 IF THE CABINET DOOR OPENS TO RIGHT IF THE CABINET DOOR OPENS TO LEFT 45 / EN Washing Machine /User’s Manual...
- Page 46 46 / EN Washing Machine /User’s Manual...
- Page 47 47 / EN Washing Machine /User’s Manual...
- Page 48 48 / EN Washing Machine /User’s Manual...
- Page 49 Service Ref. No. Service Ref. No. 1493 1493 49 / EN Washing Machine /User’s Manual...
- Page 50 50 / EN Washing Machine /User’s Manual...
- Page 52 The guarantee starts from the date of original purchase of the product for a period of twelve (12) months unless Beko plc (the “Manufacturer”) agrees to extend the guarantee for the product in writing. If you have any questions about the guarantee on your product (including how long it is valid), please contact your retailer or our Call Centre on 0333 207 9710.
- Page 53 Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Beko offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model but when this is not possible, a model of similar specification will be provided.
- Page 54 It is your responsibility to ensure our Engineers have a clean and safe environment to carry out any repairs. ………………………………………………………………………………………………………… Model No: Serial No: Retailer: Date of purchase: ………………………………………………………………………………………………………….. For service under guarantee simply telephone the appropriate number below: UK Mainland & Northern Ireland: 0333 207 9710 or customerservice@support.Beko.co.uk...
- Page 55 Should you experience any difficulty in obtaining service contact the Beko Customer Helpline on Tel: 0333 207 9710 or e-mail: CustomerService@support.beko.co.uk …………………………………………………………………………………………………………… This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent, Watford, Herts, WD18 8QU. Beko plc is registered in England and Wales with company registration number 02415578.
