  • Page 1 UPER ® UPER TORAGE YSTEM 6027R-E1CR12N USER’S MANUAL 1.0a...
  • Page 2 This manual is written for professional system integrators and PC technicians. It mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms provides information for the installation and use of the 6027R-E1CR12N.
  • Page 3 Preface UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRi-LN4F+ serverboard, includ- ing the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfig- uring the serverboard.

  • Page 4: Table Of Contents

    Table of Contents UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Table of Contents NIC1 ........................ 3-2 NIC2 ........................ 3-2 HDD ......................... 3-3 Chapter 1 Introduction Power ......................3-3 Overview ......................1-1 Drive Carrier LEDs ..................3-3 Serverboard Features ..................1-2 Chapter 4 Standardized Warning Statements for AC Systems Processors ......................
  • Page 5 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual X9DRi-LN4F+ Quick Reference ..............5-16 Connector Definitions ................... 5-18 Jumper Settings .................... 5-25 5-10 Onboard Indicators ..................5-29 5-11 SATA Ports ....................5-30 5-12 Installing Software ..................5-31 SuperDoctor III ....................5-32 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices ..................

  • Page 6: Chapter 1 Introduction

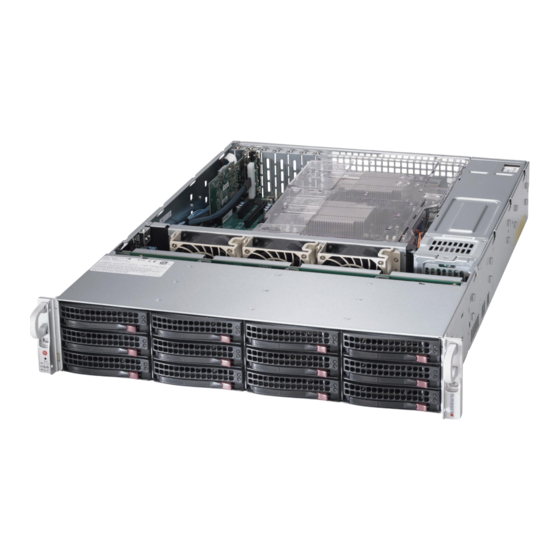

    Chapter 1 Introduction Overview The 6027R-E1CR12N is a high-end storage system comprised of two main subsys- tems: the SC826BE1C-R920LP 2U/rack mount chassis and the X9DRi-LN4F+ dual processor serverboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 7: Serverboard Features

    Rear I/O Ports The color-coded I/O ports include one COM port, a VGA port, four USB 2.0 ports The 6027R-E1CR12N is built around the X9DRi-LN4F+, a dual processor (additional USB headers are included on the serverboard), four gigabit Ethernet serverboard based on the Intel C600 chipset and designed to provide maximum ports and two external MiniSAS JBOD expansion port.
  • Page 8 VGA CONN RTL8211 W83527 Note: The SSG-6027R-E1CR12N comes pre-installed with a Hardware RAID controller installed in PCI-E slot 1 and a JBOD expansion port installed in PCI-E slot 2. Serverboard SAS components shown in the figure above are not included...

  • Page 9: Contacting Supermicro

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 10: Chapter 2 Server Installation

    Unpacking the System You should inspect the box the 6027R-E1CR12N was shipped in and note if it was damaged in any way. If the server itself shows damage you should file a damage claim with the carrier who delivered it.

  • Page 11: Warnings And Precautions

    Chapter 2: Server Installation UPER TORAGE YSTEM 6027R-E1CR12N User's Manual • Rack Mounting Considerations This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). Ambient Operating Temperature • This product is not suitable for use with visual display work place devices If installed in a closed or multi-unit rack assembly, the ambient operating tempera- acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 12: Installing The System Into A Rack

    Chapter 2: Server Installation UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Installing the System into a Rack This section provides information on installing the SC826 chassis into a rack unit Figure 2-1. Separating the Rack Rails with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 13: Outer Rack Rails

    Chapter 2: Server Installation UPER TORAGE YSTEM 6027R-E1CR12N User's Manual SCREW SCREW screw the handles the outer rails for secure purpose if necessary COMPLETE ABLECOM DATE:2008/08/14 REV:2 Figure 2-2. Assembling the Outer Rails Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. The outer rails for the SC826 chassis extend between 30 inches and 33 inches.
  • Page 14 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes...

  • Page 15: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carri- ers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 16: Control Panel Leds

    LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective On the 6027R-E1CR12N, this LED indicates hard drive activity when flashing. action you may need to take.
  • Page 17 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes...

  • Page 18: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 19 Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ Warnung ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬...

  • Page 20: Installation Instructions

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Installation Instructions Circuit Breaker Warning! Warning! Read the installation instructions before connecting the system to the power source. This product relies on the building's installation for short-circuit (overcurrent) 設置手順書...

  • Page 21: Power Disconnection Warning

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel ‫في‬ ‫التي تم تثبيتها‬ ‫مه الدوائرالقصيرة‬ ‫الحمايت‬ ‫معداث‬ ‫يعتمد على‬ ‫هذا المنتج‬ getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es ‫المبنى‬...

  • Page 22: Equipment Installation

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Equipment Installation Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Warning! Only trained and qualified personnel should be allowed to install, replace, or service Restricted Area this equipment.

  • Page 23: Battery Handling

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Warnung ‫אזור עם גישה מוגבלת‬ Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die !‫אזהרה‬ Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬...

  • Page 24: Redundant Power Supplies

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Redundant Power Supplies ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ Warning! This unit might have more than one power supply connection. All connections must 경고!

  • Page 25: Comply With Local And National Electrical Codes

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Attention ¡Advertencia! Lorsque le système est en fonctionnement, des tensions électriques circulent sur La instalacion del equipo debe cumplir con las normas de electricidad locales y le fond de panier. Prendre des précautions lors de la maintenance.

  • Page 26: Hot Swap Fan Warning

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6027R-E1CR12N User's Manual 当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他 Warnung 物品太靠近风扇 Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. 警告 ¡Advertencia! 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

  • Page 27: Power Cable And Ac Adapter

    UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any pour tous les autres appareils électriques que les produits désignés par Supermicro other electrical devices than products designated by Supermicro only.
  • Page 28 Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen. 4-20...

  • Page 29: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9DRi-LN4F+ serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick refer- ence chart are included in this chapter for your reference.

  • Page 30: Unpacking

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup Unpacking Figure 5-1. Control Panel Header Pins The serverboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static Ground protected.

  • Page 31: Installing The Processor And Heatsink

    (Do not drop the CPU on the socket. Do not move the • Refer to the Supermicro web site for updates on CPU support. CPU horizontally or vertically and do not rub the CPU against any Installing an LGA2011 Processor pins of the socket, which may damage the CPU or the socket.)

  • Page 32: Installing A Passive Cpu Heatsink

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink Caution: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't 1.

  • Page 33: Removing The Heatsink

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup Installing Memory Removing the Heatsink Caution: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall Caution: Exercise extreme care when installing or removing DIMM modules to prevent the heatsink to prevent damage done to the CPU or the CPU socket.
  • Page 34 CPU1/CPU Note: For detailed information on memory support and updates, please refer to the SMC Recommended 13 DIMMs~24 P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2-DIMMG1/ Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. DIMMs P2-DIMMH1, P1-DIMMA2/P1-DIMMB2, P2-DIMME2/P2-DIMMF2, P1-DIMMC2/P1-DIMMD2, P2-DIMMG2/P2-DIMMH2, P1-DIMMA3/P1-DIMMB3, P2-DIMME3/ Populating RDIMM (ECC) Memory Modules...
  • Page 35 Capacity Channel (DPC) Note: For detailed information on memory support and updates, please refer to the SMC Recommended DIMM Per DIMM Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. 2 Slots Per Channel 3 Slots Per Channel & Data (See the Note...

  • Page 36: Adding Pci Add-On Cards

    YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup Adding PCI Add-On Cards Serverboard Details The 6027R-E1CR12N can accommodate up to seven low-profile PCI add-on cards. Figure 5-4. X9DRi-LN4F+ Layout Installing an Add-on Card FAN5 1. Begin by removing the shield for the PCI slot you wish to populate.

  • Page 37: X9Dri-Ln4F+ Quick Reference

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup X9DRi-LN4F+ Quick Reference (IPMI) LAN IPMI_Dedicated LAN Onboard Buzzer (Internal Speaker) Jumper Description Default Setting USB 0/1 Back Panel USB 0/1 JBT1 Clear CMOS See Section 5-9 USB 2/3...

  • Page 38: Connector Definitions

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup Connector Definitions Power Fail LED ATX Power 24-pin Connector Pin Definitions PWR Fail LED The Power Fail LED connection is Pin Definitions (JF1) Pin# Definition Pin # Definition located on pins 5 and 6 of JF1. Re- Power Connectors +3.3V...
  • Page 39 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup Power On LED Chassis Intrusion Power LED Chassis Intrusion Pin Definitions (JF1) Pin Definitions The Power On LED connector is lo- The Chassis Intrusion header is des- Pin# Definition...
  • Page 40 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup IPMB IPMB Header Serial Port Pin Definitions Serial Ports Pin Definitions (COM1/COM2) A System Management Bus header Pin# Definition Pin # Definition Pin # Definition Two serial ports are included on the for IPMI 2.0 is located at IPMB.

  • Page 41: Jumper Settings

    Note: UID can also be triggered via IPMI. For more information on IPMI, please refer to the IPMI User's Guide posted on our Website @http://www.supermicro.com. CMOS Clear JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins,...
  • Page 42 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup GLAN Enable/Disable GLAN Enable Manufacturer's Mode Jumper Settings JPL1 enables or disables the GLAN Jumper Setting Definition ports on the serverboard. See the Jumper JPME2 allows the user to...

  • Page 43: 5-10 Onboard Indicators

    X8DT3/i-F/-LN4F UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup X8DT3-LN4/LN4F 5-10 Onboard Indicators Watch Dog Enable/Disable Jumper JWD controls the Watch LAN LEDs Dog function. Watch Dog is a sys- The Ethernet ports (located beside the tem monitor that can reboot the JLAN1/2 LED VGA port) have two LEDs.

  • Page 44: 5-11 Sata Ports

    5-11 SATA Ports 5-12 Installing Software After the hardware has been installed, you should first install the operating system and then the drivers. The necessary drivers are all included on the Supermicro CDs Serial ATA Ports that came packaged with your serverboard.

  • Page 45: Superdoctor Iii

    UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chapter 5: Advanced Serverboard Setup SuperDoctor III The SuperDoctor ® III program is a web-based management tool that supports re- mote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program included on the CD-ROM that came with your serverboard allows you to monitor the environment and operations of your system.
  • Page 46 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes 5-34...

  • Page 47: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC826BE1C-R920LPB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 48: Control Panel

    Chapter 6: Advanced Chassis Setup UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Figure 6-1. Front and Rear Chassis Views Figure 6-2. Removing the Chassis Cover Control Panel SATA Drives (12) Note: numbers above indicate the logical drive locations (drive map). Power Supplies...

  • Page 49: Replacing System Fans

    Chapter 6: Advanced Chassis Setup UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Air Shroud Replacing System Fans 1. If necessary, open the chassis while the power is running to determine which Air shrouds concentrate airflow to maximize fan efficiency. The SC826 chassis air fan requires changing.

  • Page 50: Drive Bay Installation/Removal

    2. Secure the drive to the carrier with four screws, as shown in Figure 6-5. Caution: Enterprise level hard disk drives are recommended for use in Supermicro Caution: Regardless of how many hard drives are installed, all drive carriers must chassis and servers.

  • Page 51: Hard Drive Backplane

    Power Supply Figure 6-6. Mounting a Drive in a Carrier The 6027R-E1CR12N has a 920 watt redundant, hot-plug power supply consisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage.

  • Page 52: Attaching A Jbod Expansion Chassis

    YSTEM 6027R-E1CR12N User's Manual Attaching a JBOD Expansion Chassis The SSG-6027R-E1CR12N features a dual JBOD expansion port. The JBOD at- tachment will vary depending on the specific JBOD chassis that is being connected. The JBOD image below is provided for illustrative purposes only; port location and Figure 6-8.
  • Page 53 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes 6-12...

  • Page 54: Chapter 7 Bios

    The configuration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <F2> at the appropriate time during system boot. Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Recovery User Guide posted @http://www.supermicro.com/support/manuals/.

  • Page 55: Main Setup

    Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Starting the Setup Utility Supermicro X9DR6-LN4+ Normally, the only visible Power-On Self-Test (POST) routine is the memory test. SMC Version As the memory is being tested, press the <F2> key to enter the main menu of This item displays the SMC version of the BIOS ROM used in this system.
  • Page 56 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual AddOn ROM Display Mode CPU Configuration Use this item to set the display mode for the Option ROM. Select Keep Current to This submenu displays the information of the CPU as detected by the BIOS. It also use the current AddOn ROM Display setting.
  • Page 57 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Clock Spread Spectrum based on the specifications of the application running in the system at the time. The options are Disabled and Enabled. Select Enable to enable Clock Spectrum support, which will allow the BIOS to moni- tor and attempt to reduce the level of Electromagnetic Interference caused by the Intel®...
  • Page 58 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Chipset Configuration CPU C3 Report Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system. During the CPU C3 State, the CPU clock generator is turned North Bridge Configuration...
  • Page 59 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Port 1B Link Speed Up Tx Preset Select GEN1 to enable PCI-Exp Generation 1 support for Port 1B. Select GEN2 This feature allows the user to select the preset setting for a upstream component to enable PCI-Exp Generation 2 support for Port 1B.
  • Page 60 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Isoc Memory Mode Select Enabled to enable Ischronous support to meet QoS (Quality of Service) When Independent is selected, all DIMMs are available to the operating system. requirements. This feature is especially important for virtualization technology.
  • Page 61 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual DRAM RAPL Legacy USB Support (Available when USB Functions is not Disabled) This item allows the user to select the average power limit setting when a DRAM Select Enabled to support legacy USB devices. Select Auto to disable legacy sup- module is in operation.
  • Page 62 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Aggressive Link Power Management Thermal Configuration Select Enabled to enable Aggressive Link Power Management support Thermal Management for Cougar Point B0 stepping and beyond. The options are Enabled and Select Enabled to initialize the PCH Thermal subsystem device located at D31:F6.
  • Page 63 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual PERR# Generation Option ROM is Enabled, and the default settings for LAN2 Option ROM~LAN4 Option ROM are Disabled. Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event.
  • Page 64 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual VT-UTF8 Combo Key Support Console Redirection Settings Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 This feature allows the user to specify how the host computer will exchange terminals. The options are Enabled and Disabled.

  • Page 65: Event Logs

    Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual TPM State TPM Support: Trusted Platform support Select Enabled to enable TPM security settings to improve data integrity and TPM State: Trusted Platform state network security. The options are Disabled and Enabled.
  • Page 66 Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Change SMBIOS Event Log Settings METW (Multiple Event Count Time Window)  This item allows the user to decide how long (in minutes) should the multiple event This feature allows the user to configure SMBIOS Event settings.

  • Page 67: Ipmi

    Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual IPMI When SEL is Full This feature allows the user to decide what the BIOS should do when the system Use this feature to configure Intelligent Platform Management Interface (IPMI) event log is full. Select Erase Immediately to erase all events in the log when the settings.

  • Page 68: Boot

    Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Boot Security This submenu allows the user to configure the following boot settings for the This menu allows the user to configure the following security settings for the system. system. Administrator Password...

  • Page 69: Save & Exit

    Chapter 7: BIOS UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Save & Exit Discard Changes Select this feature and press <Enter> to discard all the changes and return to the This submenu allows the user to configure the Save and Exit settings for the BIOS setup.
  • Page 70 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes 7-32...

  • Page 71: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 72 UPER TORAGE YSTEM 6027R-E1CR12N User's Manual Notes...

  • Page 73: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Single or dual Intel® Xeon E5-2600 Series processors Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C600 chipset BIOS 32 Mb AMI® SPI Flash ROM Memory Capacity Twenty-four DIMM sockets supporting up to 1.5 TB of LRDIMM (Load Reduced DIMM), 768 GB of RDIMM (Registered DIMMs) or 128 GB of UDIMM...
  • Page 74 Appendix B: System Specifications UPER TORAGE YSTEM 6027R-E1R12N User's Manual Notes Chassis SC826BE1C-R920LPB (2U rackmount) Dimensions: (WxHxD) 17.2 x 3.5 x 25.5 in. (37 x 89 x 648 mm) Weight Gross Weight: 52 lbs. (23.6 kg.) System Cooling Three 8-cm system cooling fans System Input Requirements AC Input Voltage: 100 - 240V AC auto-range Rated Input Current: 10.7 - 4.2A max...
  • Page 75 YSTEM 6027R-E1R12N User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
