Summary of Contents for Fortinet FortiNDR 3500F

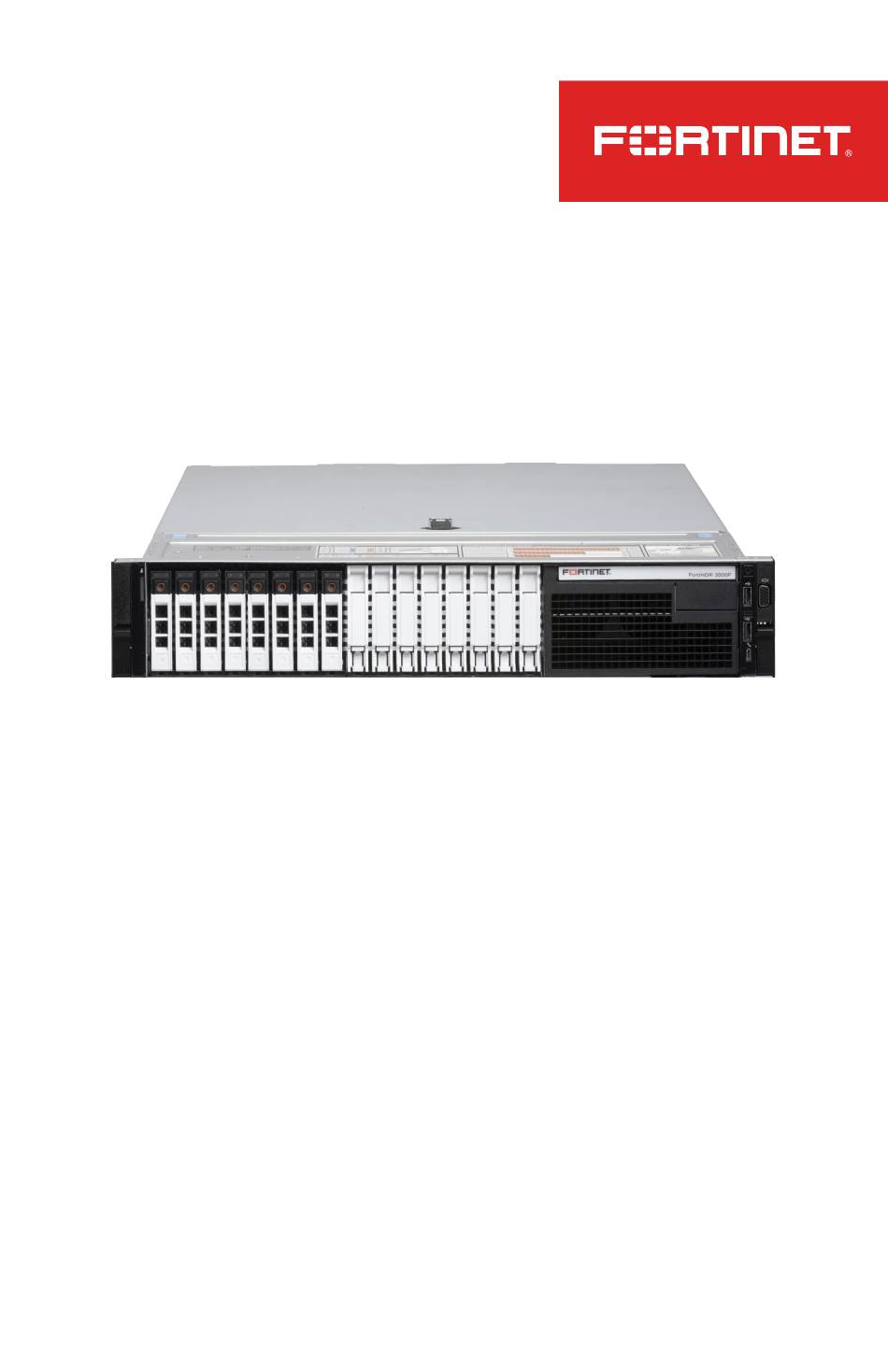

- Page 1 FortiNDR 3500F QuickStart Guide...
-
Page 2: Before You Begin
Copyright© 2022 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. -
Page 3: Box Includes
Box Includes Front Panel - System FortiNDR 3500F System Status LED indicators Hard Drive Off: Operating normally Hard Drive Amber: Hard drive error Temperature Off: Operating normally QuickStart Guide 2x Power Cables Temperature Amber: Fan failure or ambient temperature out of range... -
Page 4: Front Panel Control
Rear Panel - Interfaces Front Panel - Control ID Button & LED press to identify a system in a rack Hard Drive Power LED indicators Blue: ID function is on Off: ID function is off Green: Operating normally IPMI Port not in use. Off: Hard drive off CLI Console Port (DB9) optional connection to the management computer Hard Drive Activity LED indicators... -
Page 5: Rear Panel - Power Supplies
Rear Panel - Power Supplies Basic Connections Power Outlet Power Connection or UPS Supplied Power Cable Redundant Power Supplies (2x) 100-240V AC, 11.5A, 50/60Hz Green: The power supply is operating normally Flashing Amber: Power supply failure Off: No power connected Power Outlet Power Connection or UPS... -
Page 6: Setup Options
Setup Options Set up your device locally using the GUI or CLI. Choose an option to complete your setup, then configure your device. easy-to-use GUI, compatible with most web browsers. To minimize scrolling, the screen resolution should be at least Local Setup 1280 x 1024 pixels. - Page 7 Cautions and Warnings Environmental Specifications Ambient operating temperature: 0°C to 40°C Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: Instructions de montage en rack - Les instructions de montage en rack suivantes ou similaires sont incluses avec les instructions d’installation: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.
- Page 8 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 警告使用者: 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某些適當的對策。 請仔細閱讀以下說明 本設備勿置於潮濕處。 連接至電源前，請先檢查電壓。...
- Page 9 Fortinet.com...
