DESCRIPTION
3.75" round LED pucklight for recessed or surface mounting. Utilizes
five 1 watt leds in amber, blue, green, or four types of white.
For use in downlighting and task lighting applications such as under
cabinets.
SPECIFICATION FEATURES
A ...Construction
All aluminum construction with integrated
heat sink.
B ...Light Source
Five 1 watt LEDs in amber, blue, green, red,
or 2800K, 3500K, 4100K or 5100K white.
C ...Power Supply
36" whip with quick connectors at each
end to connect the fixture to the included
external 350mA constant current driver.
Driver comes in an enclosure/junction
box with a knockout for 120V input.

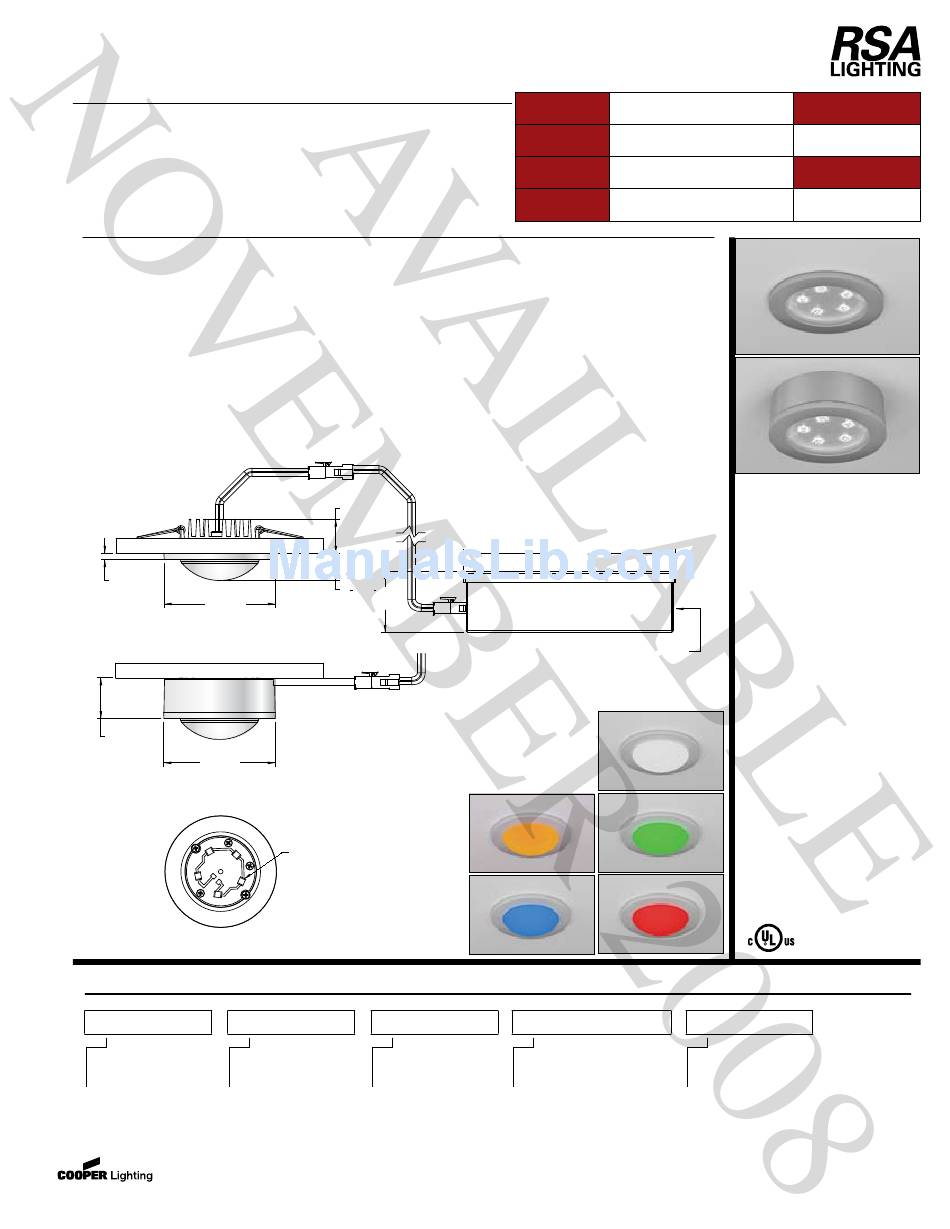

RECESSED MOUNT
0.22"
3.75"
SURFACE MOUNT
1.37"
3.75"
ORDERING INFORMATION
LED10
Fixture
Mounting Type
LED10 =
S = Surface Mount
3.75" Round LED Pucklight
R = Recessed Mount
www.cooperlighting.com
D ...Mounting
May be mounted as a recessed fixture
in as little as 1.5" plenum height. Spring
retaining clips secure the recessed trim
in place. May also be surface mounted
using an aluminum extender sleeve.
E ...Lens
Flat or drop glass lens included. White
LEDs use a clear or frosted lens. Colored
LEDs use a corresponding color lens.
1.15"
36" leads
0.92"
2.05"
1 Watt LED (5x)
LED Color
28 = White 2800K
35 = White 3500K
41 = White 4100K
51 = White 5100K
AM = Amber
BL = Blue
GR = Green
RD = Red
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
F....Finish
Available in white, black or silver powder
coat finish.
Cut-out: 2.75" dia.
7.16"
Junction Box / Driver Enclosure
2.16" Width
Knockout for 120V Input
Lens Type / Color
FC = Flat Clear
DF = Drop Frosted
FA = Flat Amber
DA = Drop Amber
FB = Flat Blue
DB = Drop Blue
FG = Flat Green
DG = Drop Green
FR = Flat Red
DR = Drop Red
Type
Date
RSA LED
PUCKLIGHT
LED10
3.75" O.D.
Recessed
or Surface
Mounted Fixture
Five x 1 Watt LED
Finish
W = White
B = Black
S = Silver
rev. 050808
