Rolls MX122 Owner's Manual

PHANTOM POWER
The MX122 Phantom Power is applied to the XLR input when the jumper con-
nects the right two pins as you face the rear of the unit. Shown is an example of
the Phantom Power connected.
LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a
period of one (1) year from the date of purchase as shown on the purchaser's receipt.
The obligation of Rolls Corporation under this warranty shall be limited to repair
or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided
the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PRE-
PAID. Products returned to us or to an authorized Service Center must be accompanied by
a copy of the purchase receipt. In the absence of such purchase receipt, the warranty
period shall be one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of deface-
ment, misuse, abuse, neglect, accident, destruction or alteration of the serial number,
improper electrical voltages or currents, repair, alteration or maintenance by any person or
party other than our own service facility or an authorized Service Center, or any use
violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED IN DURATION TO THE ONE YEAR DURATION OF THIS WRITTEN
LIMITED WARRANTY. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow
the exclusion or limitation of special, incidental or consequential damages so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
on
phantom power
ROLLS CORPORATION
SALT LAKE CITY, UTAH

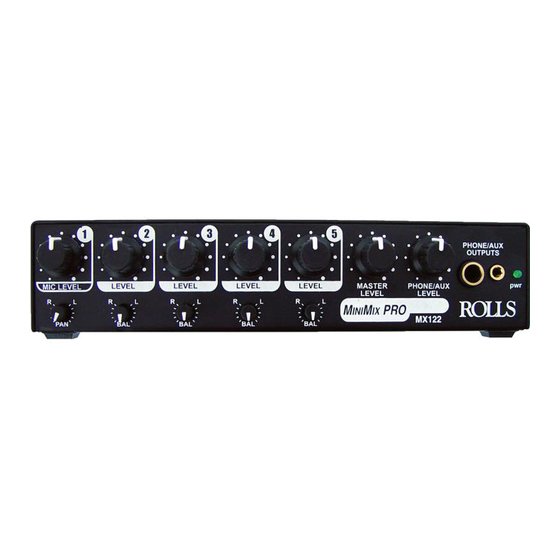

MiniMix Pro Mixer
LEVEL
MIC LEVEL
R L R L
PAN BAL
SPECIFICATIONS
Input Impedance:
Phantom Power Voltage:
Output Impedance:
Max Input Level:
Phase Shift:
Connectors:
Max Gain:
Mic CMRR:
S/N Ratio:
THD
IMD (SMPTE)
Self Noise:
Power
Size:
Weight:
4/03
MX122
LEVEL LEVEL LEVEL MASTER
LEVEL
R L R L R L
BAL BAL BAL
Line: 10 K Ohms unbal.
Mic: 10 K Ohms bal.
+12 VDC
50 Ohms bal
+24 dBV line, -8 dBV microphone
< 10 deg. 20 Hz - 20 kHz
8: 1/4" TS Inputs, 1: XLR Mic Input
3: 1/4" TRS, 1: 1/8" (3.5mm) Outputs
26 dB Line
26 dB Aux
80 dB Mic
95 dB
>90 dB
< .004%
< .004%
< - 82 dB
12 VDC
8.4" x 1.7" x 5"
(21.3 x 4.3 x 13 cm)
2.5 lbs (1.14 kg)
OWNERS MANUAL
