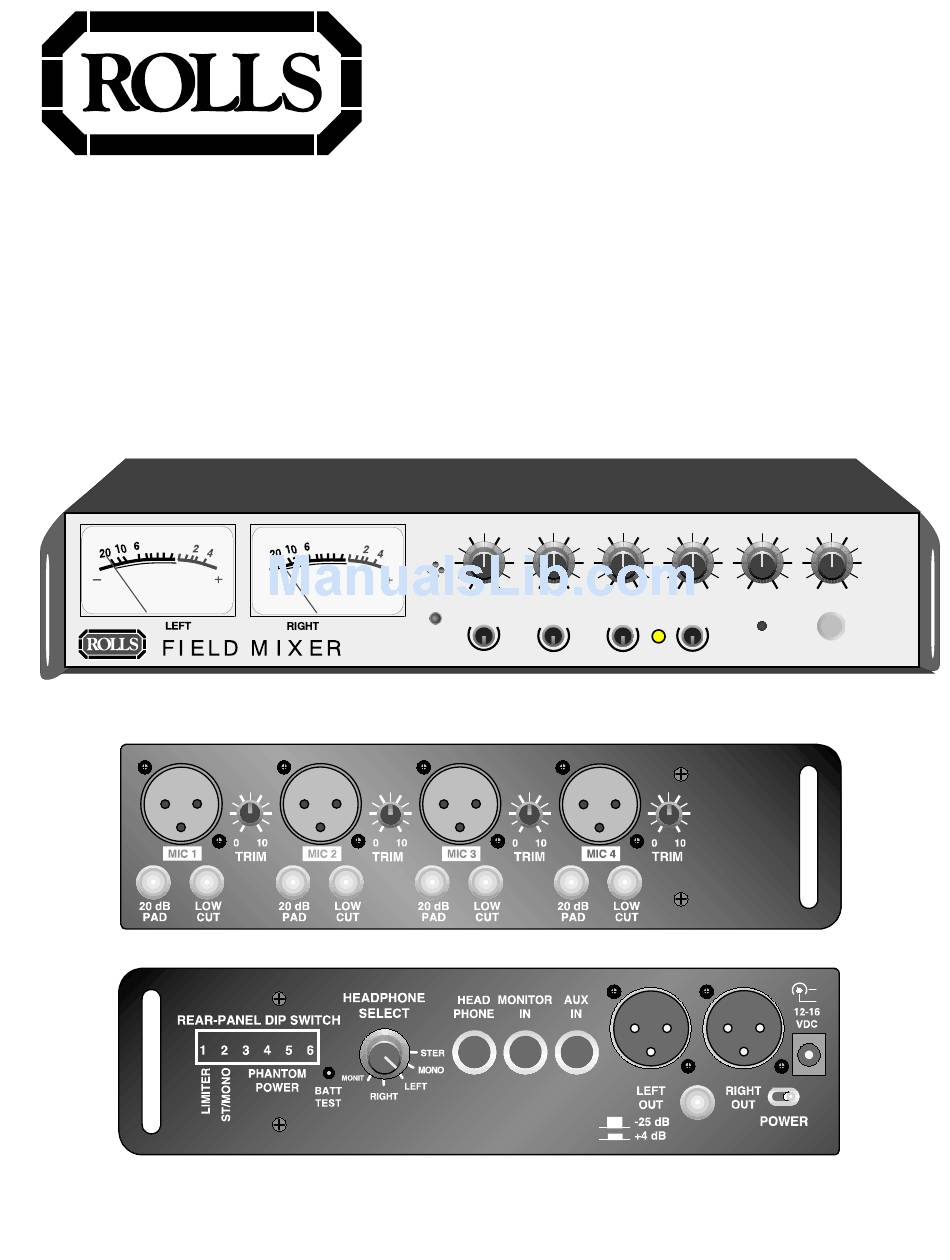

- Page 1 MX442 Field Mixer CH. 1 CH. 2 CH. 3 LEVEL LEVEL LEVEL SLATE O W N E R S MASTER HEADPHONE CH. 4 LEVEL LEVEL LEVEL MX442 POWER 400 Hz TONE M A N U A L...
-
Page 2: Table Of Contents
Thank you for your purchase of the Rolls MX442 Field Mixer. The MX442 is a breakthrough in price/performance for the broadcast engineer, remote sound engineer etc. This unit was researched and devoloped by industry professionals. You told us what you wanted, and we built it. Please read through the following manual to ensure proper operation of this unit. -
Page 3: Description
FRONT PANEL RIGHT LEFT FIELD MIXER LEFT/RIGHT VU Meters: Indicate the level of signal that is being monitored, or the signal present at the Headphone Output. The meters also indicate battery voltage. MIC: This is the Slate Mic. When the SLATE button is pressed, this mic picks up signal at its input and sends the signal via the Master Level control to the Right and Left Outputs. -
Page 4: Rear Panel
The 20 dB Pad switch is pressed in if the microphone is “too hot” or putting out a very high level signal. • The Low Cut switch The Low Cut switch, when pressed in, rolls off the low frequencies starting at 100 Hz. This is used for removing unwanted “rumble”. • The Headphone Select Switch There are many instances where different portions of the signal need to be monitored. -
Page 5: Specifications
3 through 6 provide the indicated channel with +48 volts of phantom power to power condenser type microphones. SPECIFICATIONS SCHEMATIC PHAN 2N5087 PHAN 2N5087 PHAN 2N5087 PHAN 2N5087 PHAN Title Size: Date: ROLLS CORPORATION 5968 South 350 West Salt Lake City,UT 84107 ROLLS FIELD MIXER MX442 Rev: Document Number: MX442SCH 19-Jul-2000 Sheet... -
Page 6: Limited Warranty
(1) year from the date of purchase as shown on the purchaser’s receipt. The obligation of Rolls Corporation under this warranty shall be limited to repair or replacement (at our option), during the warranty period of any part which proves defective in material or workmanship under normal installation, use and service, provided the product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID.
