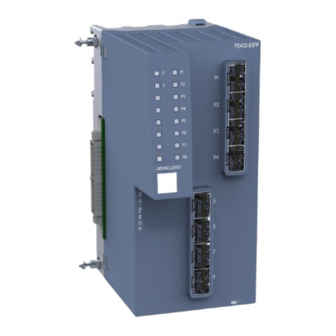

Siemens SIMATIC NET SCALANCE XM-400 Operating Instructions Manual

Network components extender
Hide thumbs Also See for SIMATIC NET SCALANCE XM-400:
Table of Contents

Advertisement

Quick Links

Download this manual
SIMATIC NET
Network components
Extender for SCALANCE XM-400
Operating Instructions
03/2021
C79000-G8976-C332-10
Introduction
Safety notices
Recommendations on
network security
Description of the device
Installation
Connecting up
Technical specifications
Dimension drawings
Approvals
1
2
3
4
5
6
7
8
A

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC NET SCALANCE XM-400

Summary of Contents for Siemens SIMATIC NET SCALANCE XM-400

  • Page 1 Introduction Safety notices Recommendations on network security SIMATIC NET Description of the device Network components Extender for SCALANCE XM-400 Installation Connecting up Operating Instructions Technical specifications Dimension drawings Approvals 03/2021 C79000-G8976-C332-10...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Table Of Contents

    Table of contents Introduction ............................5 On the Operating Instructions ....................5 Safety notices ............................9 Recommendations on network security ....................11 Description of the device ........................17 Properties and functions ....................17 Product overview ....................... 19 Device views ........................21 4.3.1 PE408..........................
  • Page 4 Table of contents Dimension drawings ..........................51 Approvals ............................. 55 Index ..............................63 Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 5: Introduction

    Introduction On the Operating Instructions Purpose of the Operating Instructions These operating instructions support you when installing and connecting extenders within the SCALANCE XM-400 product group. The configuration and the integration of the device in a network are not described in these operating instructions.
  • Page 6 • On the Internet pages of Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/ps/15315/man) When using the Function Extender BUS ANALYZER Agent XM-400, note the documentation of the BUS ANALYZER Agent XM-400 on the Siemens Industry Online Support website: • Product announcement (https://support.industry.siemens.com/cs/de/en/view/109745817) • Application example (https://support.industry.siemens.com/cs/de/en/view/109762541) Documentation on configuration...
  • Page 7 • On the Internet under the following address: 50305045 (https://support.industry.siemens.com/cs/ww/en/view/50305045) Security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement –...
  • Page 8 (https://www.siemens.com/industrialsecurity) Catalogs You will find the article numbers for the Siemens products of relevance here in the following catalogs: • SIMATIC NET Industrial Communication / Industrial Identification, catalog IK PI • SIMATIC Products for Totally Integrated Automation and Micro Automation, catalog ST 70 •...

  • Page 9: Safety Notices

    Safety notices Read the safety notices Note the following safety notices. These relate to the entire working life of the device. You should also read the safety notices relating to handling in the individual sections, particularly in the sections "Installation" and "Connecting up". CAUTION To prevent injury, read the manual before use.
  • Page 10 Safety notices Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 11: Recommendations On Network Security

    • Evaluate your plant as a whole in terms of security. Use a cell protection concept with suitable products (https://www.industry.siemens.com/topics/global/en/industrial-security/pages/ default.aspx). • When the internal and external network are disconnected, an attacker cannot access internal data from the outside. Therefore operate the device only within a protected network area.
  • Page 12 Industrial Security (https://www.siemens.com/ industrialsecurity) website. • Inform yourself regularly about security recommendations published by Siemens ProductCERT (https://www.siemens.com/cert/en/cert-security-advisories.htm). • Only activate protocols that you require to use the device. • Restrict access to the management of the device with rules in an access control list (ACL).
  • Page 13 Recommendations on network security Secure/non-secure protocols and services • Avoid or disable non-secure protocols and services, for example HTTP, Telnet and TFTP. For historical reasons, these protocols are available, however not intended for secure applications. Use non-secure protocols on the device with caution. •...
  • Page 14 Recommendations on network security Available protocols The following list provides you with an overview of the open protocol ports. The table includes the following columns: • Protocol • Port • Default port status – Open The factory setting of the port is "Open". –...
  • Page 15 Recommendations on network security Protocol Protocol/ Default port status Configurable port Authentication Encryption Port number RADIUS UDP/ Closed ✓ 1812,1813 UDP/520 Closed RIPng IPv6 UDP/521 Closed ✓ SMTP TCP/25 Closed ✓ TCP/465 SNMP UDP/161 Open ✓ Yes (when config‐ ured) TCP/22 Open ✓...
  • Page 16 Recommendations on network security Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 17: Description Of The Device

    Description of the device Properties and functions SCALANCE XM-400 product group The product group SCALANCE XM-400 consists of basic devices (compact switches) and extenders (port extenders and function extender). SCALANCE XM-400 basic device Basic properties The SCALANCE XM-400 basic devices are modular compact switches with fixed RJ-45 ports (10/100/1000 Mbps) and SFP transceiver slots that can be equipped individually.
  • Page 18 Description of the device 4.1 Properties and functions Port extender PE-400 Port extenders are modular network components with RJ-45 ports (10/100/1000 Mbps) or SFP transceiver slots. To the left they have an expansion interface to connect to the basic device or to another port extender and to the right they have an expansion interface for additional port extenders.

  • Page 19: Product Overview

    Description of the device 4.2 Product overview Product overview Port extender Type Properties Article number PE408 8 x 10/100/1000 Mbps RJ-45 ports 6GK5 408-0GA00-8AP2 PE408PoE 8 x 10/100/1000 Mbps, RJ-45 ports with PoE 6GK5 408-0PA00-8AP2 PE400-8SFP 8 x 100/1000 Mbps, SFP ports 6GK5 400-8AS00-8AP2 Function Extender BUS ANALYZER Agent XM-400 Device...
  • Page 20 Description of the device 4.2 Product overview Unpacking and checking WARNING Do not use any parts that show evidence of damage If you use damaged parts, there is no guarantee that the device will function according to the specification. If you use damaged parts, this can lead to the following problems: •...

  • Page 21: Device Views

    Description of the device 4.3 Device views Device views 4.3.1 PE408 The following figure shows an overview of the components of the PE408. ① Electrical ports ② Location for securing to an S7 standard rail (on the underside of the device, not in figure) ③...

  • Page 22: Pe408Poe

    Description of the device 4.3 Device views 4.3.2 PE408PoE The following figure shows an overview of the components of the PE408PoE. ① Electrical ports ② Location for securing to an S7 standard rail (on the underside of the device, not in figure) ③...

  • Page 23: Pe400-8Sfp

    Description of the device 4.3 Device views 4.3.3 PE400-8SFP The following figure shows an overview of the components of the PE400-8SFP. ① Slots for SFP transceivers ② Location for securing to an S7 standard rail (on the underside of the device, not in figure) ③...

  • Page 24: Accessories

    Description of the device 4.4 Accessories Accessories Pluggable transceiver The following SFP transceivers can be used for the port extender: Type Property Article number SFP991-1 1 x 100 Mbps, LC port optical for glass FO cable 6GK5 991-1AD00-8AA0 (multimode), up to max. 5 km SFP991-1 (C) 1 x 100 Mbps, LC port optical, for glass FO cable (mul‐...

  • Page 25: Led Display

    Description of the device 4.5 LED display LED display The following figure shows the arrangement of the LEDs. LEDs for displaying the device position L1/L2 LEDs for displaying the PoE power supply (PE408PoE only) LEDs for displaying the port status 4.5.1 LEDs "2"...

  • Page 26: Leds "L1" And "L2

    Description of the device 4.5 LED display 4.5.2 LEDs "L1" and "L2" Note Only the port extender PE408PoE has the LEDs "L1" and L2". The LEDs "L1" and "L2" display information about the PoE power supply at the connectors L1+/M1 und L2+/M2.
  • Page 27 Description of the device 4.5 LED display If there is a connection problem and the type of transmission is fixed (autonegotiation off), the desired status, in other words the set transmission speed (1000 Mbps, 100 Mbps, 10 Mbps) continues to be displayed. If there is a connection problem and autonegotiation is active, the port LED goes off.

  • Page 28: Power Over Ethernet (Poe)

    Description of the device 4.6 Power over Ethernet (PoE) Power over Ethernet (PoE) Function The "Power over Ethernet" function supplies connected devices with power via the Ethernet cable. Devices supplied with power via an Ethernet cable do not require a separate voltage source.
  • Page 29 You will find the configuration manuals here: • On the data medium that ships with some products: – Product CD / product DVD – SIMATIC NET Manual Collection • On the Internet pages of Siemens Industry Online Support. (https:// support.industry.siemens.com/cs/ww/en/ps/15315) Power supply and pin assignment The voltage is transferred on the data wires 1, 2, 3 and 6 of the Ethernet cable.
  • Page 30 Description of the device 4.6 Power over Ethernet (PoE) Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 31: Installation

    Installation Safety notices for installation Safety notices When installing the device, keep to the safety notices listed below. WARNING If a device is operated in an ambient temperature of more than 50 °C, the temperature of the device housing may be higher than 70 °C. The device must therefore be installed so that it is only accessible to service personnel or users that are aware of the reason for restricted access and the required safety measures at an ambient temperature higher than 50 °C.
  • Page 32 Installation 5.1 Safety notices for installation Safety notices for use according to ATEX and IECEx If you use the device under ATEX or IECEx conditions you must also keep to the following safety notices in addition to the general safety notices for protection against explosion: WARNING To comply with EC Directive 2014/34/EU (ATEX 114) or the conditions of IECEx, this enclosure or cabinet must meet the requirements of at least IP54 in compliance with EN 60529.

  • Page 33: Types Of Installation

    Installation 5.2 Types of installation Types of installation Types of installation You have the following options for the device: • DIN rail • S7-300 standard rail • S7-1500 standard rail Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 34: Installation On A Din Rail

    Installation 5.3 Installation on a DIN rail Installation on a DIN rail Installation WARNING Danger of injury by falling objects The 35 mm DIN rail does not provide adequate support in shipping or when there is severe vibration (> 10 g). When used under these conditions, the device can detach itself and may cause injury to persons.

  • Page 35: Installation On A Standard S7-300 Rail

    Installation 5.4 Installation on a standard S7-300 rail Installation on a standard S7-300 rail Installing on an S7-300 standard rail Figure 5-2 S7-300 standard rail mounting To screw the device to an S7-300 standard rail, you require a securing screw with the following properties: •...

  • Page 36: Installation On A Standard S7-1500 Rail

    Installation 5.5 Installation on a standard S7-1500 rail Installation on a standard S7-1500 rail Installing on an S7-1500 standard rail Figure 5-3 S7-1500 standard rail mounting To screw the device to an S7-1500 standard rail, you require a securing screw with the following properties: •...

  • Page 37: Fitting An Extender

    Installation 5.6 Fitting an extender Fitting an extender Position The following figure shows the elements required to connect two devices. ① Locking mechanism (on the rear of the device) ② Centering pin ③ Multipole connector for connection to the expansion interface ④...
  • Page 38 Installation 5.6 Fitting an extender Fitting and removing an extender Fitting an extender To fit an extender, follow the steps below: 1. Remove the cover of the expansion interface on the basic device. 2. Fit the two devices together so that the two centering pins are accommodated by the ①...
  • Page 39 Installation 5.6 Fitting an extender Exchanging extenders - with change of medium Exchanging extenders If you replace an electrical extender with an optical extender (or vice versa), this can lead to malfunctions. The IE switch therefore reacts as follows: • The extender is disabled. •...
  • Page 40 Installation 5.6 Fitting an extender Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 41: Connecting Up

    Connecting up Safety when connecting up Safety notices When connecting up the device, keep to the safety notices listed below. WARNING The equipment is designed for operation with Safety Extra-Low Voltage (SELV) by a Limited Power Source (LPS). This means that only SELV / LPS complying with IEC 60950-1 / EN 60950-1 / VDE 0805-1 must be connected to the power supply terminals, or the power supply unit for the equipment power supply must comply with NEC Class 2, as described by the National Electrical Code (r) (ANSI / NFPA 70).
  • Page 42 Connecting up 6.1 Safety when connecting up Safety notices for use according to ATEX and IECEx If you use the device under ATEX or IECEx conditions you must also keep to the following safety notices in addition to the general safety notices for protection against explosion: WARNING Take measures to prevent transient voltage surges of more than 40% of the rated voltage.

  • Page 43: Further Notes

    Connecting up 6.2 Further notes Further notes Further notes WARNING Commissioning devices and replacement devices If you use redundancy mechanisms (HRP/MRP ring redundancy and/or redundant coupling of rings with standby), open the redundant path before you insert a new or replacement device in an operational network.
  • Page 44 Connecting up 6.2 Further notes NOTICE Failure of the data traffic due to contamination of optical plug-in connections Optical sockets and plugs are sensitive to contamination of the end face. Contamination can lead to the failure of the optical transmission network. Take the following precautions to avoid functional impairments: •...

  • Page 45: Poe Power Supply Of The Pe408Poe

    Connecting up 6.3 PoE power supply of the PE408PoE PoE power supply of the PE408PoE Notes on the PoE power supply WARNING Incorrect power supply The power of all connected power supply units must total the equivalent of a power source with limited power (LPS limited power source).
  • Page 46 Connecting up 6.3 PoE power supply of the PE408PoE Contact Assignment L1+ 54 VDC Ground L2+ 54 VDC Ground Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...

  • Page 47: Technical Specifications

    Technical specifications Technical specifications of the PE408 The following technical specifications apply to the port extender PE408. Technical specifications Attachment to Industrial Ethernet Electrical connectors Quantity Connector RJ-45 jack Transmission speed 10 / 100 / 1000 Mbps Electrical data (supply from basic device) Current consumption at 24 V DC 200 mA...

  • Page 48: Technical Specifications Of The Pe408Poe

    Technical specifications 7.2 Technical specifications of the PE408PoE Technical specifications of the PE408PoE The following technical specifications apply to the port extender PE408PoE: Technical specifications Attachment to Industrial Ethernet Electrical connectors Quantity Connector RJ-45 jack Transmission speed 10 / 100 / 1000 Mbps Electrical data (supply from basic device) Current consumption at 24 V DC...

  • Page 49: Technical Specifications Of The Pe400-8Sfp

    Technical specifications 7.3 Technical specifications of the PE400-8SFP Technical specifications of the PE400-8SFP The following technical specifications apply to the port extender PE400-8SFP. Technical specifications Attachment to Industrial Ethernet Slots for SFP transceivers Quantity Connector SFP transceivers (LC port) Transmission speed 100 / 1000 Mbps Electrical data (supply from basic device) Current consumption...
  • Page 50 Technical specifications 7.3 Technical specifications of the PE400-8SFP Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
  • Page 51 Dimension drawings Note Dimensions are specified in mm. Front view Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
  • Page 52 Dimension drawings Side view 90,8 Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
  • Page 53 Dimension drawings From above 49,2 12,5 Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
  • Page 54 Dimension drawings Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
  • Page 55 Current approvals on the Internet You will find the current approvals for the product on the Internet pages of Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/15312/cert). Notes for the manufacturers of machines The devices are not machines in the sense of the EC Machinery Directive.
  • Page 56 • On the data medium that ships with some products: – Product CD / product DVD – SIMATIC NET Manual Collection • On the Internet pages of Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/view/78381013) The SIMATIC NET products described in these operating instructions meet the requirements of the EU directive 2014/34/EU "Equipment and Protective Devices for Use in Potentially Explosive...
  • Page 57 Approvals Permitted types of protection The following types of protection are possible: • nA ATEX classification: II 3 G Ex nA IIC T4 Gc Certificate no.: KEMA 07ATEX0145 X The products meet the requirements of the following standards: – EN 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of protection "n") –...
  • Page 58 Approvals The following types of protection are possible: • nA IECEx classification: Ex nA IIC T4 Gc Certificate no.: DEK 14.0025X The products meet the requirements of the following standards: – IEC 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of protection "n") –...
  • Page 59 Approvals Applied standards: • EN 61000‑6‑2 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments • EN 61000‑6‑4 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments You will find the current versions of the standards in the currently valid EC declaration of conformity.
  • Page 60 Approvals cULus Approval Hazardous Location cULus Listed I. T. E. FOR HAZ. LOC. Underwriters Laboratories Inc. complying with • UL 60950-1 (Information Technology Equipment) • ANSI/ISA 12.12.01-2007 • CSA C22.2 No. 213-M1987 Approved for use in Cl. 1, Div. 2, GP A, B, C, D T4 Cl.
  • Page 61 • "Industrial Ethernet / PROFINET Industrial Ethernet" System Manual (https:// support.industry.siemens.com/cs/ww/en/view/27069465) • "Industrial Ethernet / PROFINET - Passive Network Components" System Manual (https:// support.industry.siemens.com/cs/ww/en/view/84922825) • "EMC Installation Guidelines" configuration manual (https:// support.industry.siemens.com/cs/ww/en/view/60612658)
  • Page 62 Approvals Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
  • Page 63 Index Accessories, 24 LED display, 21, 23 Approvals, 55 Locking mechanism, 37 Article number, 19, 24 PE408PoE, 5, 37 Basic device, 5, 17 Pluggable transceiver, 5, 24 BUS ANALYZER, 6 PoE, 28, 37, 45 BUS ANALYZER Agent XM-400, 6, 18, 19 Port extender PE408PoE, 37 PoE power supply, 5, 24, 28, 37 PoE power supply unit, 5, 24, 28, 37...
  • Page 64 Index Transceiver, 5 WBM, 6 Web Based Management, 6 Extender for SCALANCE XM-400 Operating Instructions, 03/2021, C79000-G8976-C332-10...
