SCREEN
DS2058 A
Portable DVD Player
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Audiovox DS2058 A

Summary of Contents for Audiovox DS2058 A

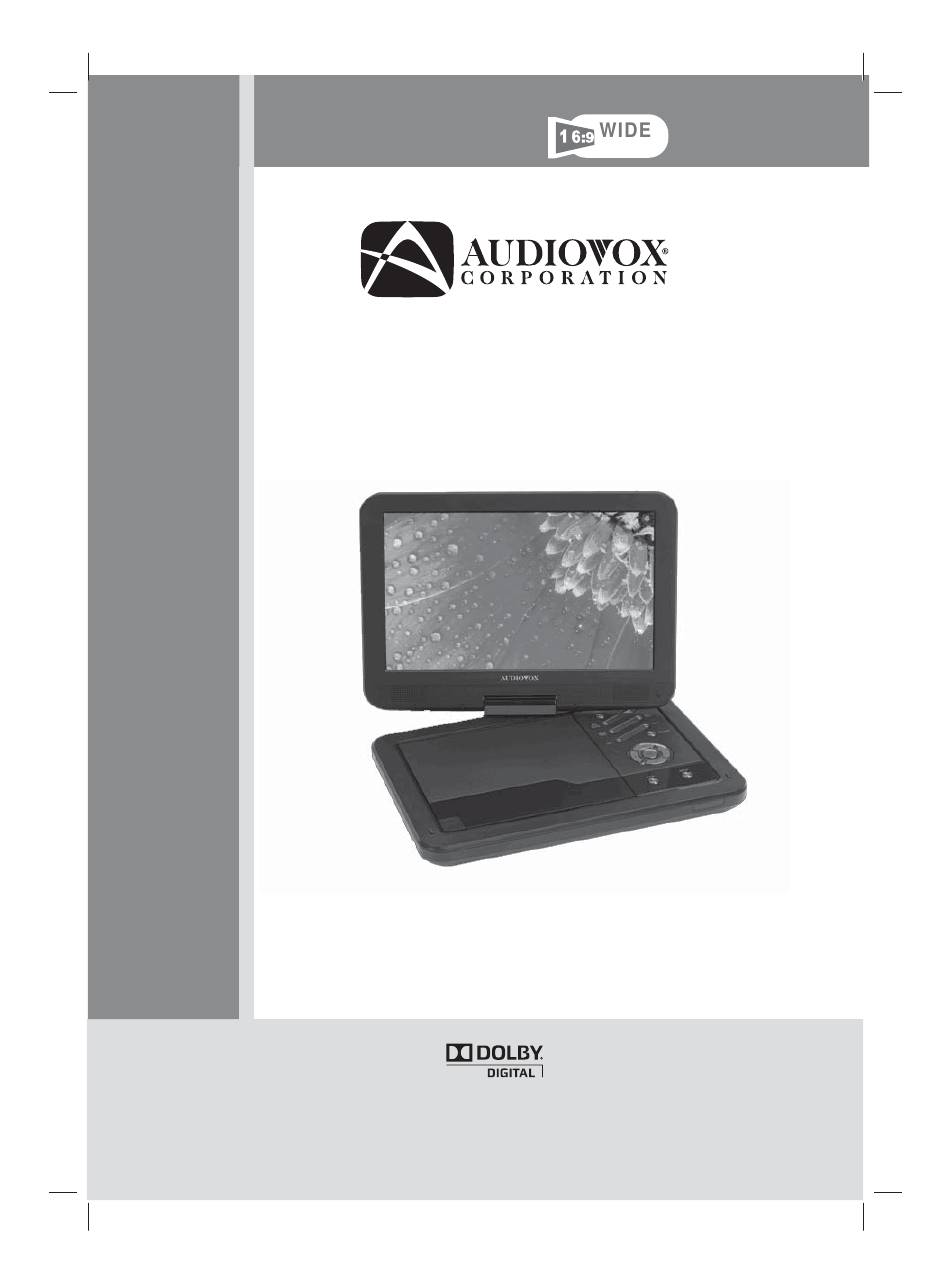

  • Page 1 SCREEN DS2058 A Portable DVD Player Owner’s Manual...

  • Page 2: Warnings And Cautions

    WARNINGS AND CAUTIONS Notice This Product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
  • Page 3 WARNINGS AND CAUTIONS Placement • To prevent fi re or electric shock, do not expose this unit to rain or moisture. • To prevent the unit from falling, do not place it on an unstable cart, stand, tripod, bracket or table.
  • Page 4 WARNINGS AND CAUTIONS Headphones • Excessive sound pressure from headphones can cause hearing loss. • Connect earphones or headphones to the headphone jack with the volume set low and increase it if required. When earphones or headphones are connected, no sound will be emitted from the unit’s speaker system.

  • Page 5: Table Of Contents

    CONTENTS Warnings and Cautions ........................2 Contents ............................5 Introduction ............................6 Charging the Battery.........................7 Controls and Indicators........................8 Remote Control Operation......................10 Audio/Video Connections .......................14 System Setup ..........................16 Playback ............................23 Specifi cations ..........................27 Troubleshooting ..........................28 Owner’s Notes ..........................30...

  • Page 6: Introduction

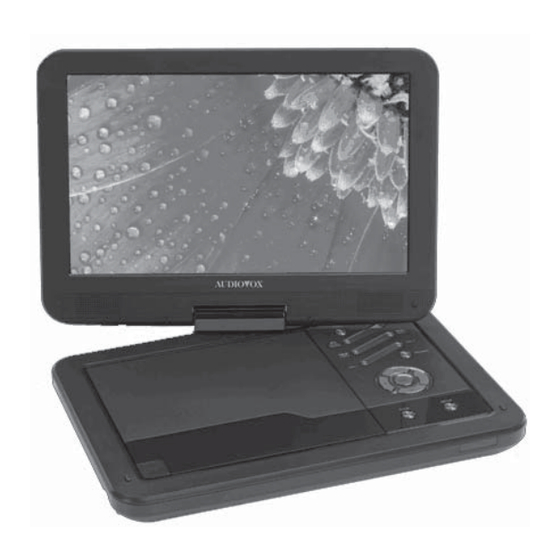

    INTRODUCTION Thank you for selecting the DS2058 A Portable DVD Player. The main features include a 10.1” Swivel Screen (16:9 Aspect Ratio), Liquid Crystal Display (LCD) monitor, and a DVD Player. The unit incorporates the latest state-of-the-art electronics and is designed for use in hotels, offi...

  • Page 7: Charging The Battery

    7. Heat is produced during charging. This is normal. 8. Do not subject the unit to strong impacts. 9. Keep the unit away from humidity and excessive heat. 10. The battery is not user serviceable. Please contact Audiovox in the event the battery will not charge.

  • Page 8: Controls And Indicators

    CONTROLS AND INDICATORS 1. SPEAKER OUTPUT Front View 2. DISPLAY SCREEN 3. RED LED CHARGE INDICATOR Flashes when the battery is charging. Steadily lit when the battery is charged. 4. INFRARED REMOTE SENSOR 5. GREEN LED ON/OFF INDICATOR Steadily lit when the unit is on. 6.
  • Page 9 CONTROLS AND INDICATORS Side View 1. USB Slot Insert USB device for playback of audio/video files. 2. SD/MMC/MS Card Slot Insert SD/MMC/MS card for playback of audio/video files. 3 4 5 6 7 3. 3.5mm HEADPHONE JACK When headphones are connected, no sound will be emitted from the speakers.

  • Page 10: Remote Control Operation

    REMOTE CONTROL OPERATION BATTERY INSTALLATION/REPLACEMENT Remove the battery compartment cover according to the diagram on the right. 1. Press the ridged area to the left. 2. At the same time, pull the battery tray out. 3. Remove the old CR2025 battery. Replace it with a new CR2025 lithium battery on the tray with the positive side facing upward.
  • Page 11 REMOTE CONTROL OPERATION 8. SUBTITLE Press repeatedly to switch/show the subtitle(s) or turn off the subtitle function. Note: This function only works with discs encoded with subtitles. 9. PLAY ( Press to start a playback or resume normal playback from fast forward, fast reverse, slow-motion, frame-by-frame playback, etc.
  • Page 12 REMOTE CONTROL OPERATION 15. A-B REPEAT Press to repeat a specifi c section of a disc. Press this button to mark down the starting point (A) and press it again to mark down the ending point (B). The unit will play back this section over and over again.
  • Page 13 REMOTE CONTROL OPERATION 20. NEXT ( ) / DOWN Press to skip to the next chapter/track. Press to navigate in the down direction when menu is displayed on the screen. 21. STOP ( Press once to pause a playback, then press Play ( ) to continue playback.

  • Page 14: Audio/Video Connections

    AUDIO/VIDEO CONNECTIONS Connecting to a TV Audio/video from this unit can be played on an external TV. To connect this unit to a TV: 1. Use an AV output cable to connect the AV OUT jack on the unit to the video input terminal and L/R channel audio input terminals of a TV.
  • Page 15 AUDIO/VIDEO CONNECTIONS Connecting to an External Audio/Video Source The unit can play audio/video from an external source. To connect the unit to an external audio/video source: 1. Use an AV cable to connect the AV IN jack to the video output terminal and L/R channel audio output terminals of a DVD player, VCD player, CD player, VCR etc.

  • Page 16: System Setup

    SYSTEM SETUP The System Setup menu allows you to personalize the DVD Player settings to your preference. Once the initial settings are set, they are retained in the DVD player until modifi ed. SETUP MENU OPERATION 1. Press the SETUP button on the remote control to show the Setup Menu. 2.
  • Page 17 SYSTEM SETUP ANGLE MARK This function is available when a disc is encoded with multiple camera angles. Options: Enables the Angle Mark function. When a disc with multiple camera angles is playing, an angle mark will display on the screen. You can then view the video of different camera angles by pressing the ANGLE button on the remote control.
  • Page 18 SYSTEM SETUP ANALOG AUDIO SETUP PAGE There is one item in the ANALOG AUDIO SETUP PAGE - DOWNMIX. --ANALOG AUDIO SETUP PAGE-- GO TO SPEAKER SETUP PAGE DOWNMIX This function only applies to Dolby AC-3 encoded 5.1-channel discs. Options: LT/RT: The 5.1-channel audio is mixed into the left channel and right channel.
  • Page 19 SYSTEM SETUP VIDEO SETUP PAGE There are three items in the VIDEO SETUP PAGE. They are SHARPNESS, BRIGHTNESS, and CONTRAST. SHARPNESS Adjusts the edge enhancement of the picture. Options: HIGH, MEDIUM, and LOW. BRIGHTNESS Adjusts the black level in the picture. Options: -20 to +20: Press LEFT ( ) or RIGHT (...
  • Page 20 SYSTEM SETUP PREFERENCE PAGE There are seven items in the PREFERENCE PAGE. They are TV TYPE, AUDIO, SUBTITLE, DISC MENU, --PREFERENCE PAGE-- PARENTAL, PASSWORD, and DEFAULT. TV TYPE NTSC AUDIO SUBTITLE DISC MENU The Preference Page is NOT available if a disc is PARENTAL PASSWORD playing in the disc tray.
  • Page 21 SYSTEM SETUP SUBTITLE MENU This item allows a user to select a preferred subtitle language. This function only applies to discs encoded with subtitles. Options: English, French, Spanish, Chinese, Japanese, Korean, Russian, Thai, and Off. You can also change the subtitle language by pressing SUBTITLE on the remote control. Note: If the selected language is not available for the currently playing disc, the disc’s default setting is applied.
  • Page 22 SYSTEM SETUP DEFAULT This item allows a user to restore all the default settings except the settings in the Password Setup Page and the PARENTAL item. Options: RESET: Restores the default settings. PASSWORD SETUP PAGE There are two items in the PASSWORD PAGE. They are PASSWORD MODE and PASSWORD.

  • Page 23: Playback

    PLAYBACK DVD PLAYBACK To get the optimum use out of the DVD Player, make sure you read this section completely. DVD REGION CODE The DVD player is preset to a region code at the factory depending on where the DVD player is sold.
  • Page 24 PLAYBACK TYPES OF DISCS YOUR DVD PLAYER WILL PLAY Your system will play the following types of discs: • DVD* disc - DVD discs which contain video. • VCD disc - VCD discs which contain video. • Audio disc - Audio CDs contain musical or sound content only. •...
  • Page 25 PLAYBACK MP3 DISC PLAYBACK MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. The DVD player plays the songs in the order they were burned on to the disc. When playback is started the elapsed time of the track that is playing will be displayed.
  • Page 26 PLAYBACK KODAK PICTURE CD OR JPEG IMAGE CD PLAYBACK 1. Place a Kodak Picture CD or JPEG image CD in the disc tray. The unit will load the disc automatically. 2. Press STOP ( ) to enter the thumbnail mode to preview the pictures. 3.

  • Page 27: Specifications

    SPECIFICATIONS Compatible DISC DVD/VCD/CD/MP3 Signal System PAL/NTSC Panel Size 10.1 inch Resolution 1024 x 600 Frequency Response 20 Hz to 20 kHz Video Output 1.0 ± 0.2 Vp-p 75 Ohm unbalanced Audio Output 1.8 ± 0.2 V RMS/10 kOhm ≥ 85 dB Dynamic Range Laser Semiconductor laser, wavelength: 650 nm/795 nm...

  • Page 28: Troubleshooting

    TROUBLESHOOTING If your DVD player does not appear to be functioning correctly, check the items below before contacting Audiovox technical support. Symptom Cause(s) Remedy No Power • The adapter is not • Connect the adapter to the connected to the unit...
  • Page 29 TROUBLESHOOTING Symptom Cause(s) Remedy The remote control does • There is no battery in the • Install a CR2025 lithium battery not function. remote control. in the remote control. • The battery is discharged. • Replace the battery with a new one.

  • Page 30: Owner's Notes

    OWNER’S NOTES...
  • Page 31 90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option) without charge for parts and repair labor.
  • Page 32 © 2011 AUDIOVOX,150 Marcus Blvd. Hauppauge, NY 11788 128-8981a...
