Table of Zones

Zone No. Trigger type
1 Instant
2 On-board shock sensor
3 Two-stage, progresses from
4 Multiplexed Input
5 Two-stage (similar to doors)
N N O O T T E E : : The Warn Away
Long Term Event History
The system stores the last two full triggers in memory. These are not erasable. Each time the unit
sees a full trigger, the older of the two triggers in memory will be replaced by the new trigger. To
access long term event history:

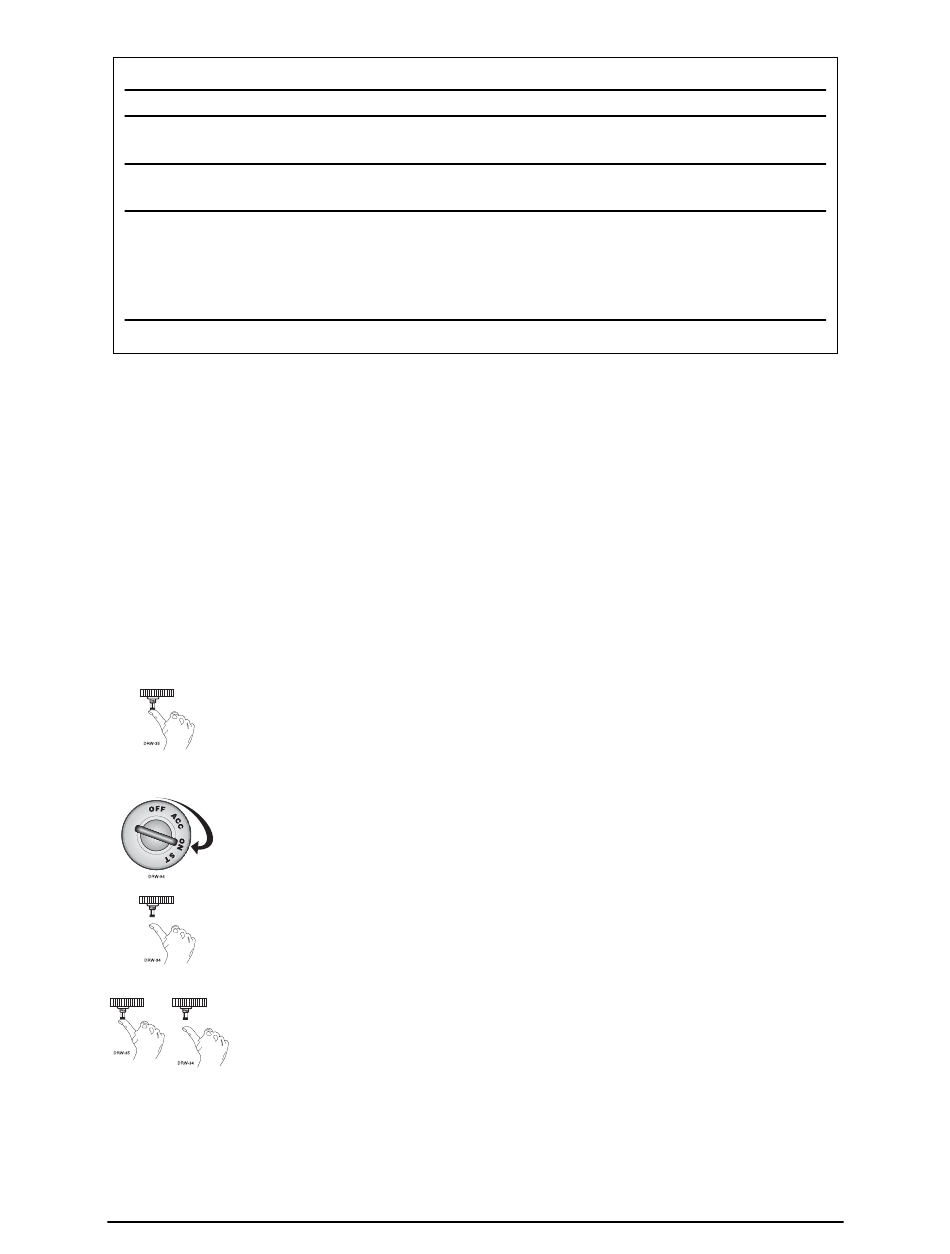

1. With the ignition off, press and HOLD the Valet/Program switch.
2. Turn on the ignition.
3. Release the Valet/Program switch.
4. Press and release the Valet/Program switch within 5 seconds. The LED will
flash in groups indicating the last two zones that triggered the unit. The LED
will flash for one minute or until the ignition is turned off.
N N O O T T E E : : The Warning Zone triggers are not stored to memory and will not be reported.
2005
©
Directed Electronics, Inc. all rights reserved
Input description
H1/6 BLUE - Connect to optional hood/trunk pins.
Heavy impact detected by the on-board shock
sensor.
Door switch circuit. H1/5 GREEN or H1/7
VIOLET warning to full alarm
BLUE and GREEN wires of optional sensor
plug. Inputs shorter than 0.8 seconds will trigger
a Warn Away response, while inputs longer than
0.8 seconds will instantly trigger a full alarm
sequence and report Zone 4.
Ignition input. H1/9 YELLOW.
response does not report on the LED.
®
