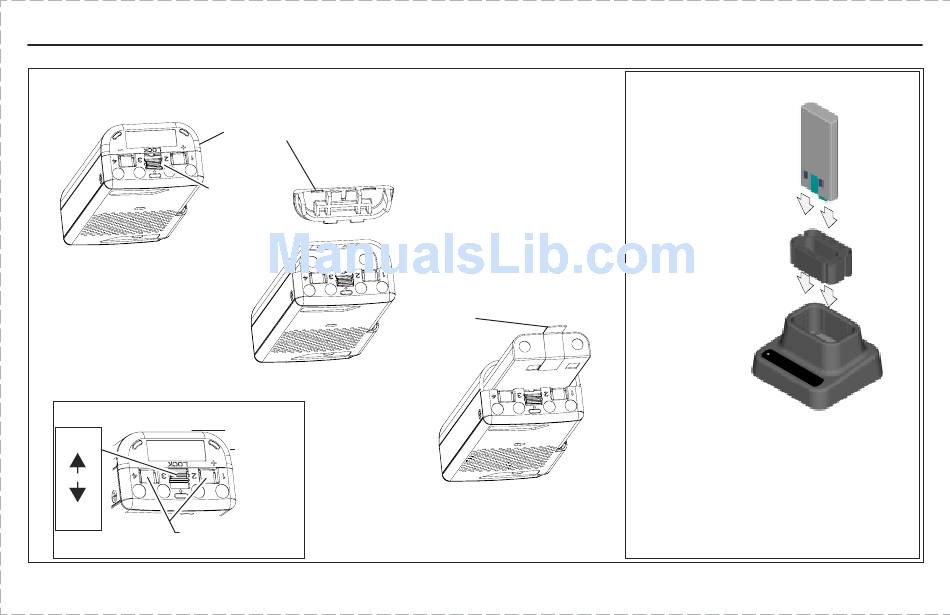

FIG-5: BATTERY ACCESS & INSTALLATION FIG-5: BATTERY ACCESS & INSTALLATION
FIG-5: BATTERY ACCESS & INSTALLATION FIG-5: BATTERY ACCESS & INSTALLATION FIG-5: BATTERY ACCESS & INSTALLATION
(A)
1.
Hold the radio as shown above (A).
2.
Use your thumbnail to open the
Door Latch, as shown below (B).
3.
Lift and rotate the Battery Access
Door to release it (C).
(B)
BOTTOM VIEW OF THE RADIO
LATCH
CLOSED
LATCH
OPEN
Drop-in Charger
Contacts
page 3 RITRON, INC. 1-800-USA-1-USA (1-800-872-1872)
page 8
BATTERY ACCESS
DOOR
DOOR LATCH
F F F F F
(C)
}
Battery
Access
Door
For assistance, call 800-USA-1-USA

BATTERIES

4.
Use the Pull-tab to pull the battery
pack out of the case (D).
5.
Insert the replacement battery
pack, being certain to POSITION IT
RELATIVE TO THE CASE AS
SHOWN IN (D). Push the Battery
Pack in as far as possible.
6.
Replace the Battery Access Door.
Secure it by closing the Door Latch
as shown in (B).
7.
Be certain to firmly lock the Door
Latch, as shown in (B).
-
PULL TAB
(D)
800-USA-1-USA 800-USA-1-USA 800-USA-1-USA 800-USA-1-USA (800-872-1872)

OPTIONAL CHARGING ACCESSORIES:

Spare/ Replacement
Battery Pack
Drop-in Battery Charger
with Spacer
JOBCOM JMX Accessories:
BPJS-6N 700 mAH Spare Battery Pack
BCJS-AD Drop-in Charger Adapter
PATRIOT SST Accessories:
BPS-6N-SC 800 mAH Spare Battery Pack
BPS-6N-MH 1500 mAH Spare Battery Pack
BCPS-AD Drop-in Charger Adapter
BCC-PS Drop-in Charger/ Conditioner
