Namron ZIGBEE DIMMER TW 400W Manual

Important: Read All Instructions Prior to Installation

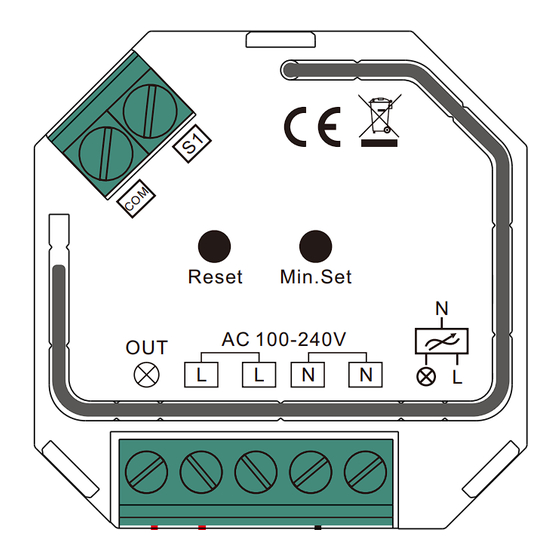

Function introduction
Push switch input
"Reset" Key: for
network pairing,
touchlink, factory
reset of the dimmer,
Reset
turn on/off load
AC 100-240V
OUT
L
Load output
Product Data
Input Voltage Output Voltage
Output Current
100-240VAC 100-240VAC
Load Symbol Load Type
Dimmable LED lamps
Dimmable LED drivers
Incandescent lighting,
HV Halogen lamps
Low voltage halogen
lighting with electronic
transformers
"Min. Set" Key:
1) to set or delete a minimum
dimming level
2) to set or delete a startup
Min.Set
brightness level
N
L N N L
AC 100-240V power input
Allowed Inrush Current
1.8A max Cold Start 75A max.
Compatible Load Types
Maximum Load
Due to variety of LED lamp
designs, maximum number
200W @ 220V of LED lamps is further
100W @ 110V dependent on power factor
result when connected to
dimmer.
Maximum permitted number
200W @ 220V
of drivers is 200W divided
100W @ 110V
by driver nameplate power
rating.
400W @ 220V
200W @ 110V
200W @ 220V
100W @ 110V
• ZigBee AC phase cut tunable white dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads and capacitive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
• Enables to control color temperature, light intensity, ON/OFF of phase cut dimming tunable white LED drivers or lamps
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Can be controlled by universal push switches
• Mini size, easy to be Installed into a standard wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
ZigBee Clusters the device supports are as follows:
Input Clusters
• 0x0000: Basic
• 0x0006: On/off
Output Clusters
• 0x0019: OTA
Operation
1.Do wiring according to connection diagram correctly.
Size(LxWxH)
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This
45.5x45x20.3mm
receiver receives and is controlled by wireless radio signals from the compatible ZigBee system.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
Remarks
fail. Please refer to the part "Factory Reset Manually".
Step 2: From your ZigBee Controller or hub interface, choose to add lighting device and enter Pairing mode as
instructed by the controller.
Step 4: Connected light will blink 5
times and then stay solid on, then the
device will appear in your controller's
menu and can be controlled through
controller or hub interface.
• 0x0003: Identify • 0x0004: Groups
• 0x0005: Scenes
• 0x0300: Color Control
• 0x0008: Level Control
Reset Min.Set
AC 100-240V
OUT
L L N N
• 0x0b05: Diagnostics
Step 3: power on the device, it will be
N
set into network pairing mode
L
(connected light flashes twice slowly),
the network pairing mode will last until
the device is added to a zigbee
network.
L
N
