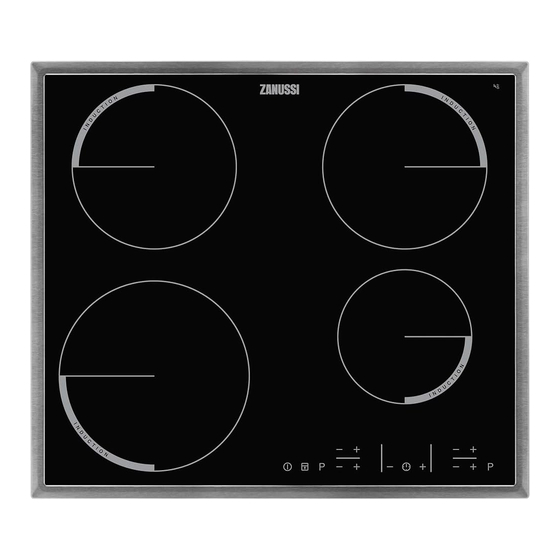

- Page 1 User Manual GETTING STARTED? EASY. ZIT6460XB EN User Manual...
-
Page 2: Safety Information
SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 3: Safety Instructions
CAUTION: The cooking process has to be supervised. A short • term cooking process has to be supervised continuously. WARNING: Danger of fire: Do not store items on the cooking • surfaces. Metallic objects such as knives, forks, spoons and lids should •... -
Page 4: Electrical Connection
ELECTRICAL CONNECTION • Remove all the packaging, labelling and protective film (if applicable) before first use. WARNING! Risk of fire and electric • Use this appliance in a household environment. shock. • Do not change the specification of this appliance. •... -
Page 5: Installation
• This appliance is for cooking purposes only. It SERVICE must not be used for other purposes, for • To repair the appliance contact an Authorised example room heating. Service Centre. • Use original spare parts only. CARE AND CLEANING •... -
Page 6: Product Description
min. 28 mm min. 60mm If the appliance is installed above a drawer, the hob ventilation can warm min. up the items stored in the drawer 12 mm during the cooking process. PRODUCT DESCRIPTION COOKING SURFACE LAYOUT Induction cooking zone Control panel 180 mm 180 mm... -
Page 7: Control Panel Layout
CONTROL PANEL LAYOUT Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Comment field ON / OFF To activate and deactivate the hob. Lock / Child Safety Device To lock / unlock the control panel. Heat setting display To show the heat setting. -
Page 8: Daily Use
Display Description PowerBoost operates. There is a malfunction. + digit A cooking zone is still hot (residual heat). Lock / Child Safety Device operates. Incorrect or too small cookware or no cookware on the cooking zone. Automatic Switch Off operates. RESIDUAL HEAT INDICATOR The induction cooking zones make the heat necessary for cooking process directly in the... - Page 9 To activate the function for a cooking zone: back to 00. The indicator of the cooking zone goes out. touch comes on). Immediately touch When the time comes to an end, the comes on). Immediately touch until the sound operates and 00 flashes. The correct heat setting comes on.
-
Page 10: Hints And Tips
• The heat setting display of the reduced zones To override the function for only one cooking alternates between the chosen heat setting and time: activate the hob with comes on. the reduced heat setting. After some timer the heat setting display of the reduced zones stays Touch for 4 seconds. -
Page 11: Care And Cleaning
The data in the table is for guidance only. Time Heat setting Use to: Hints (min) Keep cooked food warm. as nec- Put a lid on the cookware. essary 1 - 2 Hollandaise sauce, melt: butter, 5 - 25 Mix from time to time. chocolate, gelatine. -
Page 12: Troubleshooting
• Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a moist cloth. TROUBLESHOOTING WARNING! Refer to Safety chapters. WHAT TO DO IF... Problem Possible cause Remedy You cannot activate or operate The hob is not connected to an Check if the hob is correctly the hob. -
Page 13: Technical Data
Make sure, you operated TECHNICAL DATA RATING PLATE Model ZIT6460XB PNC 949 492 314 00 Typ 61 B4A 00 AA 220 - 240 V / 400 V 2N 50 - 60 Hz Induction 7.35 kW... -
Page 14: Cooking Zones Specification
ENERGY EFFICIENCY PRODUCT INFORMATION ACCORDING TO EU 66/2014 Model identification ZIT6460XB Type of hob Built-In Hob Number of cooking zones Heating technology Induction Diameter of circular cooking Left front 21.0 cm... -
Page 15: Environmental Concerns
ENVIRONMENTAL CONCERNS with the symbol with the household waste. Recycle materials with the symbol . Put the Return the product to your local recycling facility or packaging in relevant containers to recycle it. Help contact your municipal office. protect the environment and human health by recycling waste of electrical and electronic appliances. - Page 16 WWW.ZANUSSI.COM/SHOP...
