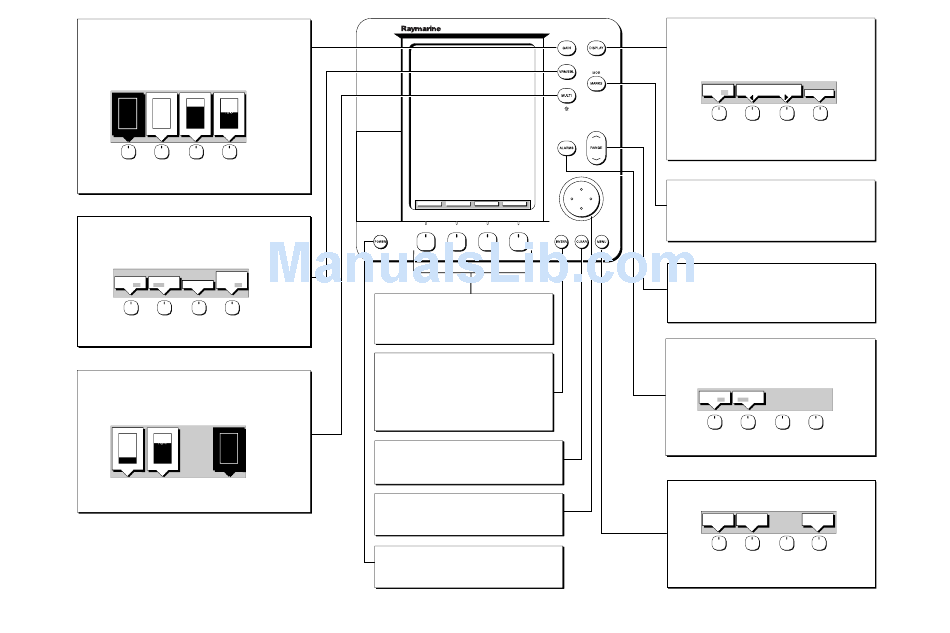

Raymarine hsb2 PLUS Quick Reference Card

GAIN
Controls the presentation of radar targets.
GAIN controls background noise (speckle).
SEA controls sea clutter.
RAIN controls rain clutter around the vessel.
FTC controls rain clutter at a distance.
- Press for soft keys display.
MANUAL
O
O
F
F
75%
F
F
FTC RAIN SEA
Select a slider using the soft key or trackpad.
Toggle between Auto/Man or off/on by pressing soft key again.
Adjust slider using trackpad, and press ENTER to finish.
VRM/EBL
Used to measure range and bearing to/between targets.
- Press to place VRM/EBL if one not already placed.
Adjust position using trackpad, and press ENTER to finish.
- Press to display soft keys if VRM/EBL already placed.
VRM/EBL1 VRM/EBL2
OFF ON OFF ON FLOAT¬
Use soft key to toggle VRM/EBL on or off.
Press FLOAT to access float options for existing VRM/EBL.
Press VRM/EBL DATABOX to toggle data box display off/on.
MULTI
Controls guard zone alarm sensitivity, and tuning the receiver.
Also controls display lighting and brightness.
- Press to display sliders.
Press and hold MULTI key to set brightness to 100%.
ON
75%
25%
ALARM
LIGHT
Select a slider using the soft key or trackpad.
Toggle between Auto/Man or off/on by pressing key again.
Adjust slider using trackpad, and press ENTER to finish.
Quick Reference Card: hsb
86058_1
MANUAL
50%
GAIN
VRM/EBL
DATABOX
OFF ON
Soft keys
Press to select option, or highlight option or slider.
Labels change when you press soft/dedicated key.
Elipses (...) after the text indicate that pressing soft
key leads to a further display of soft key options.
ENTER
Confirms selection and (if appropriate) clears current
soft key labels. It performs the selected task,
accepts changes, or leads to display of more options.
When cursor text is displayed, takes cursor control
of the object.
When arrow-head cursor symbol is displayed, drops
the object under cursor control.
A
U
CLEAR
T
O
Cancels operation in progress and returns to the
TUNE previous display.
Deletes an object/function under cursor control.
Trackpad
Controls cursor position on the screen, and also the sliders
and setup options.
Hold the trackpad down to move the cursor faster.
POWER
Press and hold until unit beeps to turn on display.
Press to toggle between Standby and Transmit.
Press for 3 seconds to turn off display.
2
PLUS Series Color LCD Radar Displays
Soft Key Labels:
Change when you press a key.
Default soft key labels are shown.
HDG MODE TARGETS SCREEN MARPA
DISPLAY
Controls display mode and windows.
- Press for display mode and soft keys display.
- Press again to toggle through display modes, and ENTER
- Press and hold for 2 seconds for full screen display of the upper
window.
WINDOWS SELECT
OFF ON WINDOW
ZOOM...
Press soft key to toggle window on/off, or return to full screen.
Zoom: Press ZOOM key to display zoom window option.
Move Zoom box using trackpad, press ENTER to finish.
MARKS / MOB
Controls placing marks, and Man Overboard function.
- Press to place mark at cursor position, and use trackpad
to move mark. Press ENTER to finish.
- Press and hold for 2 seconds to activate or cancel MOB.
RANGE
Controls range scale. Range scale and range rings are
shown in the Status Bar.
- Press top of key to increase the range scale.
- Press bottom of key to decrease the range scale.
- Press and hold to change the scale faster.
ALARMS
Used to control guard zones.
- Press to place guard zone if one not already placed.
Adjust size/shape using trackpad, press ENTER to finish.
- Press to display soft keys if guard zone already placed.
GUARD 1 GUARD 2
OFF ON OFF ON
Use soft key to toggle zone on or off.
Adjust size/shape using trackpad, and press ENTER to finish.
MENU
Provides access to setup options.
- Press to display soft keys.
SYSTEM RADAR MARPA
SET UP¬ SET UP¬ SET UP¬
Press soft key to display required setup menu, then use trackpad
to select option and soft key to change setting.
Press ENTER to close menu, and CLEAR to to finish.
