Summary of Contents for Metrologic M20-EPS

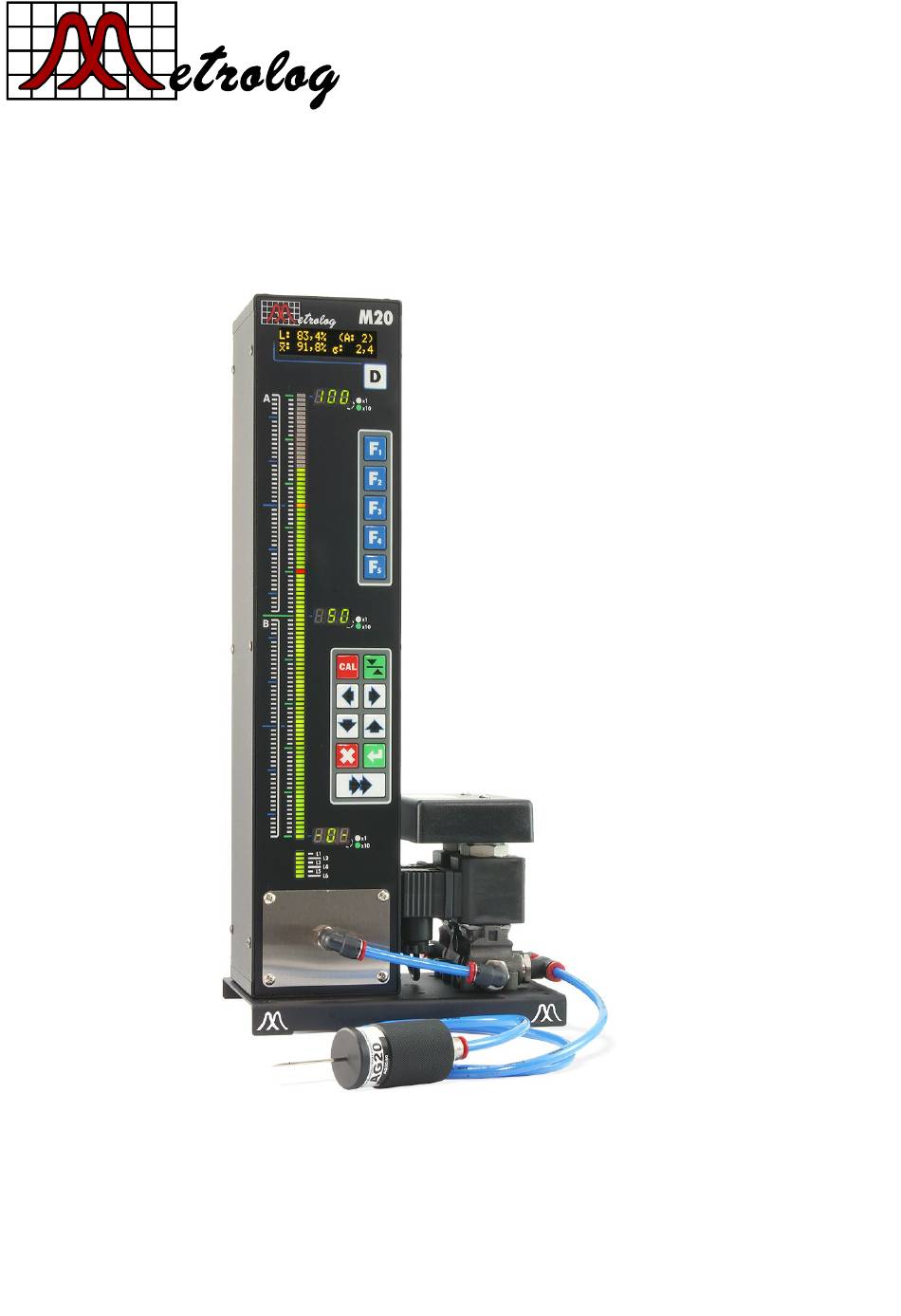

- Page 1 ETROLOG ONTROLES DE EDIÇÃO , 2656 – C – S – SP – B ETE DE ETEMBRO ENTRO ÃO ARLOS RASIL : +55 (16) 3371-0112 – +55 (16) 3372-7800 – METROLOG METROLOG METROLOG Fusion Strength Tester M20-EPS User Guide...
- Page 2 Metrolog M20-EPS User guide / Technical document (CE) Version 2.3 Compatible with Metrolog Fusion Tester M20-EPS firmware v2.1 b0002+...
- Page 3 Safety Information Read all manual before using this equipment. Turn it off before cleaning; use only slightly wet cloth for cleaning. Do not install it close to heavy machinery with exposed running liquids. Do not install it over irregular surfaces. Do not install it near strong heat sources.
- Page 4 RISK OF INJURY DUE TO PIERCING COMPONENT WARNING: THE EQUIPMENT USES A PRESSURIZED NEEDLE TO TAKE MEASUREMENTS. THE GUIDELINES PRESENTED IN THIS MANUAL MUST BE CAREFULLY OBSERVED BEFORE USING THE EQUIPMENT, UNDER THE RISK OF SERIOUS INJURY. M20-EPS User Guide...
- Page 5 Warranty This equipment has a warranty of 6 months from the invoice expedition date. During this period it may be repaired without any part or labor costs. This warranty will be void if detected damage results of misused, fall, mechanical shock, incorrect cable connection, use by untrained personal, fire, floods or other accidents.
- Page 6 The panel is internally connected to the supply earth wire that must be connected to a reliable ground. Cable shields to be earthed at only one end and routed away from any obviously powerful sources of electrical noise, e.g. electric motors, relays, solenoids and electrically noisy cables. M20-EPS User Guide...
- Page 7 Measuring instruments (MID) Compliance Although the M20-EPS meter is a measuring device, is not directly covered by the Directive 2014/32/EU " Measuring Instruments Directive (MID)" and other country specific measuring instruments calibration standards. The procedure that the equipment performs, based on an empirical study and correlation with the usual "break and count"...
-
Page 8: Table Of Contents
5.2.2 – Transmission of acquired data ......................... 38 6. SPECIAL PROCEDURES ............................40 6.1 – U ........................40 SER PARAMETERS FACTORY RESET 6.2 – S ......................... 41 ECURITY RESTRICTIONS UNLOCK 6.3 – F ..............................42 IRMWARE UPDATE 7. INTERNAL PARAMETERS AND ROUTINES REFERENCE................. 43 M20-EPS User Guide... -
Page 9: Technical Specifications
I. Technical Specifications Bargraph - 101 multicolor leds (256,5 mm total length); High contrast OLED display 2 lines, 16 characters per line; Readout 6 auxiliary multicolor leds; Side scale indication (bargraph top, central and base) with 3 numeric digits each. -
Page 10: Panel And Connectors
Optional items, when available, are individually identified below. Picture 1 – Frontal and rear panel of Metrolog M20-EPS Fusion Tester M20-EPS User Guide... - Page 11 OLED Display – 2 lines, 16 alphanumeric characters per line. Main textual information and digital readout display. : allow quick selection of readout information displayed in the LCD during measurement process. Bargraph: 101 segment bar capable of displaying percentual information in graphical form (multicolor points/segments).
- Page 12 PLCs. Allow data acquisition and remote command. RS232 Interface: standard RS232C connector (DB9F) compatible with computers, data collectors and PLCs. Allow data acquisition and remote command. On/Off switch. Power cord outlet (standard 3-pin cable connection). Compressed air inlet. M20-EPS User Guide...
-
Page 13: Equipment Placement And Safety Information
2. Equipment placement and safety information 2.1 – Instruction and site selection The Metrolog M20-EPS fusion tester has a robust case, designed for continuous floor shop use; however, some simple guidelines should be followed to reduce maintenances: • Place the equipment base over a flat and leveled surface. -
Page 14: Compressed Air Supply
2.2 – Compressed air supply The M20-EPS requires compressed air supply to work. The connect must the made using the back quick-fit connection (6mm OD hose), as shown below. Inlet air pressure must be between 40 and 110 psi (2.7 to 10.2 bars). -
Page 15: Ag20 Measurement Needle Installation
Connect the supplied hose to the AG20 quick fitting; • • Connect the other hose end to the M20-EPS Measurement needle connection port, as highlighted below as D; Remove the AG20 cover cap with care and place the needle in the resting pad, •... -
Page 16: Safety Guidelines While Using The Ag20
In these applications it is highly recommended that the needle be incorporated into an automated insertion system. See section 3.4 – Deep Measuring for details. For storage, always keep the protective cap over the needle. M20-EPS User Guide... -
Page 17: Regulations And Injuries Prevention
The M20-EPS includes a needle stand that should always be used when the equipment is not in use or during the calibration and needle cleaning processes. The creation of special guides, according to the part geometry and the regions to be inspected, is also recommended, especially when using needles longer than 50mm. - Page 18 The steps to be taken by employees in the case of accidents and incidents; Guidance on existing legislation relating to the protection of employees at work • from the risks to health and safety from sharps; The importance of recording accidents and incidents involving sharps. • M20-EPS User Guide...
- Page 19 Training: The Regulations require the employer to provide training relating to risks from sharps to employees who are exposed to the risks. The Regulations build on this requirement by ensuring that the training provided includes those matters: The correct use of the device and associated sharps protection mechanisms; •...
-
Page 20: Basic Measurement Principles
The M20-EPS measurement column uses an air to electronic principle to detect and evaluate the fusion strength index of low density expanded thermoplastics. State of the art signal conditioning and processing results in high measurement, stability, repeatability and accuracy. -
Page 21: Calibration Routine
3.2 – Calibration routine The calibration routine must be used periodically, usually before working shifts. A warm up period of 15 minutes is also required before calibration after powering up for the first time, time required for thermal equalization of all internal circuits. Follow the following procedures for system calibration: Place the needle in its resting pad. -
Page 22: Measurement Routine
The measuring head, composed of a handle and the sensor needle, should be handled with extreme care. It has sharp edges and it is a piercing object; When not in use place the needle on its holder pad, located above the external solenoids. M20-EPS User Guide... -
Page 23: Deep Measuring
3.4 – Deep Measuring For application on large workpieces and EPS blocks, AG20 needles are available with lengths between 100 and 1000mm. Picture 8 – AG20 needles for deep measurement The needles allow inspection of the fusion index at different depths, even in blocks with high densities. -
Page 24: Creation Of Guide Holes
After the guide holes have been created, the needle should be inserted freely up to near the measuring point. At this point, the operator should apply slight force to the final perforation of the material (approximately 50mm wall), positioning the needle at the intended measurement point. M20-EPS User Guide... -
Page 25: Statistical Analysis
3.5 – Statistical analysis The M20-EPS column computes and displays in real time statistical information about the sample population acquired from a part. This functionality is very important because allows the user to evaluate the average fusion strength index of a particular part, as well its index standard deviation. -
Page 26: Tolerance Limits
3.6 – Tolerance limits User may set up to 3 process limits in the M20-EPS, defined as upper limit, middle limit and lower limit. The tolerance limits are displayed as fixed points in the bargraph and they define color zones for measurement approval/reproval. -
Page 27: Needle Clean Up And Air Blockage
LCD. To return to normal measurement mode just press any key. As a standard behavior the M20-EPS will automatically block the air flow to the needle if no measurement change occurs during 2 minutes. This functionality can be changed or disabled as required. -
Page 28: Digital I/O Interfaces
To use the RS232 serial interface a standard patch cable must be used. DB9 male DB9 female (attached to the M20-EPS) (attached to the computer) Picture 11 – Standard RS232 patch cord Note: If the computer or data logger have only a DB25 connector input, use a standard DB9 to DB25 adapter. -
Page 29: Standard Ascii Protocol
- Sending a request character to the equipment; - Pressing momentarily the key - From an external button attached to the equipment digital input port. As reply from the data request the M20-EPS will return 14 characters, generically described as follows: S999,9______<CR><LF>... -
Page 30: M20 Communication Protocol
[05h][setup/product number] (setup/product from [00d] to [99d]) Reply: ‘O’ ‘K’ Description: Emulate key strokes Request: [10h][key code]. Where [key code] can be: [00h] = Key [01h] = Key [02h] = Key [03h] = Key [04h] = Key [05h] = Key M20-EPS User Guide... - Page 31 [06h] = Key [11h] = Key (needle clean-up) [12h] = Key 3s (block/unblock compressed air to the needle) [08h] = Key [09h] = Key [0Ah] = Key [0Bh] = Key [0Fh] = Key (remove last acquired sample) [0Fh] = Key 3s (clear all acquired samples) [0Dh] = Key [0Eh] = Key...
-
Page 32: Digital Parallel Interface
4.2 – Digital parallel interface The M20-EPS features two digital ports, each 10-bit wide, as shown in Picture 12). Both input and output interfaces are photo-coupled, with high immunity to external environment and coupled noise. In Picture 13 an electrical diagram details each interface and connector pins. - Page 33 Picture 14 – M20 output interface – Typical connection to a PLC input port Picture 15 – M20 output interface – Relay connection Picture 16, Picture 17 and Picture 18 show typical application where output signal are applied to the M20 input ports. Picture 16 shows a simple application where a dry contact (push button, relay, limit-switch or other device) is connected to an input interface.
- Page 34 Before connecting any component to the output port check the maximum required current. If the required current overpass 500mA or even a short- cut occurs, permanent damage will occur to the output driver interface. M20-EPS User Guide...
-
Page 35: Digital Interfaces Working Modes
4.2.1 – Digital interfaces working modes The M20-EPS has several working modes for the input/output digital interface. Each mode implements specific functions for each interface pin, designed for different user applications (special functionalities may be added under customer request). To select the working mode for the input digital interface access menu System parameters and select submenu Digital port 10-bit input. - Page 36 Table 3 – Digital input interface – Mode 1 The equipment will access the setup/product based on the binary combination applied to pins IN10 to IN4. Valid values are ‘0000000’ (setup/product 1), ‘0000001’ (setup/product 2), ‘0000010’ (setup/product 3), up to ‘10011001’ (setup/product 100). M20-EPS User Guide...
- Page 37 4.2.1.3 – Digital output interface – Mode 0 (signal, tolerances) The working Mode 0 of the digital output interface enables inspection of tolerance limits violations, as shown on the table below: DB25F connector Signal Description pin-out H = Signal actual readout < upper limit OUT1 OUT2 H = Signal actual readout <...
-
Page 38: Pe-10 Switch Setup (Optional Component)
The actual function of each pin is defined by the working mode of the input interface (see 4.2.1 – Digital interfaces working modes for details). Figure 20 – PE-10 configuration Dip-Switch Note: Invalid switch combinations are ignored by the input interface. M20-EPS User Guide... -
Page 39: Data Logger
5. Data logger 5.1 – Integrated data logger All M20 Series measurement columns feature an internal data collector. This data collector can hold up to 90.000 samples into its non-volatile memory, allowing data transfer to a computer or data logger at a later time. The data logger memory is shared among all setup/products and each sample acquired is tagged to its parent setup/product. -
Page 40: Data Logger Setup And Use
• 5.2.2 – Transmission of acquired data All stored samples can be transferred to a computer or external data logger at any time (connected by USB or RS232 interface). Data transmission can be triggered by two methods: M20-EPS User Guide... - Page 41 Using native equipment interface: Press key for 2 seconds; • Use key , and go to submenu Transmit acquired data; • Press key to access this routine. User should selected what setup/product • group should be transmitted. Use key to select a specific setup/product or select option All products to transmit all available data;...
-
Page 42: Special Procedures
After few seconds the message Flash INIT will appear. Wait until it is complete. Do not interrupt. After completion the equipment will boot up normally and will be ready for use. M20-EPS User Guide... -
Page 43: Security Restrictions Unlock
6.2 – Security restrictions unlock When security restrictions are in place, the user may forgot the access password, locking out access to some menu options. In these scenarios it is possible to reset the access password to factory default: Turn off the equipment; Keep key pressed and turn the equipment back on;... -
Page 44: Firmware Update
A Pentium, or higher, microcomputer with Windows 98, Windows 2000, • Windows XP or Windows 2003 operational system; A standard USB cable (type A-B); • To start the update process just run the supplied executable file and follow the instructions: Firmware update utility – M20 firmware M20-EPS User Guide... -
Page 45: Internal Parameters And Routines Reference
7. Internal parameters and routines reference The following list show all available internal parameters and routine, including access path with the menu structure and a brief description. Procedure: Erase all acquired data Functional description: Data collector system Menu access path: (2s) Erase all acquired data ... - Page 46 Description: When active, highlights the entire tolerance bargraph segment where the instantaneous readout is located at. Procedure: System information Functional description: Utilities Menu access path: Utilities System information Description: Show internal kernel firmware version, equipment model and contact information. M20-EPS User Guide...
- Page 47 Parameter: Detection sensibility Functional description: Product parameters (Statistical processing) Default factory value: 0.5% Menu access path: Product parameters Product n Statistical processing Detection sensibility Description: Defines the maximum allowed readout fluctuation before sampling it as stable. Parameter: Lower limit Functional description: Product parameters (limit setup)
- Page 48 Procedure: Remove last sample Functional description: Data logger system Menu access path: (2s) Remove last sample Description: Erases last sample from the data logger internal memory. See 5. Data logger for details. M20-EPS User Guide...
- Page 49 Procedure: Restore product config Functional description: Utilities Menu access path: Utilities Restore product config. Description: Restores a setup/product config, copying contents from the backup area to the user area. Procedure: Restore product default config Functional description: Utilities Menu access path: Utilities Restore prod.
- Page 50 Functional description: Data logger System Menu access path: (2s) Transmit acquired data Description: Start data transfer routine from internal equipment memory to external device (connected to the USB or RS232 interface). See section 5. Data logger for details. M20-EPS User Guide...
- Page 51 Metrolog Controles de Medição Ltda Rua Sete de Setembro, 2656 – Centro 13560-181 – São Carlos – SP – Brazil Phone: +55 (16) 3371-0112 / +55 (16) 3372-7800 www.metrolog.net – www.metrolog.com.br – www.metrolog.ind.br E-mail: metrolog@metrolog.net...
