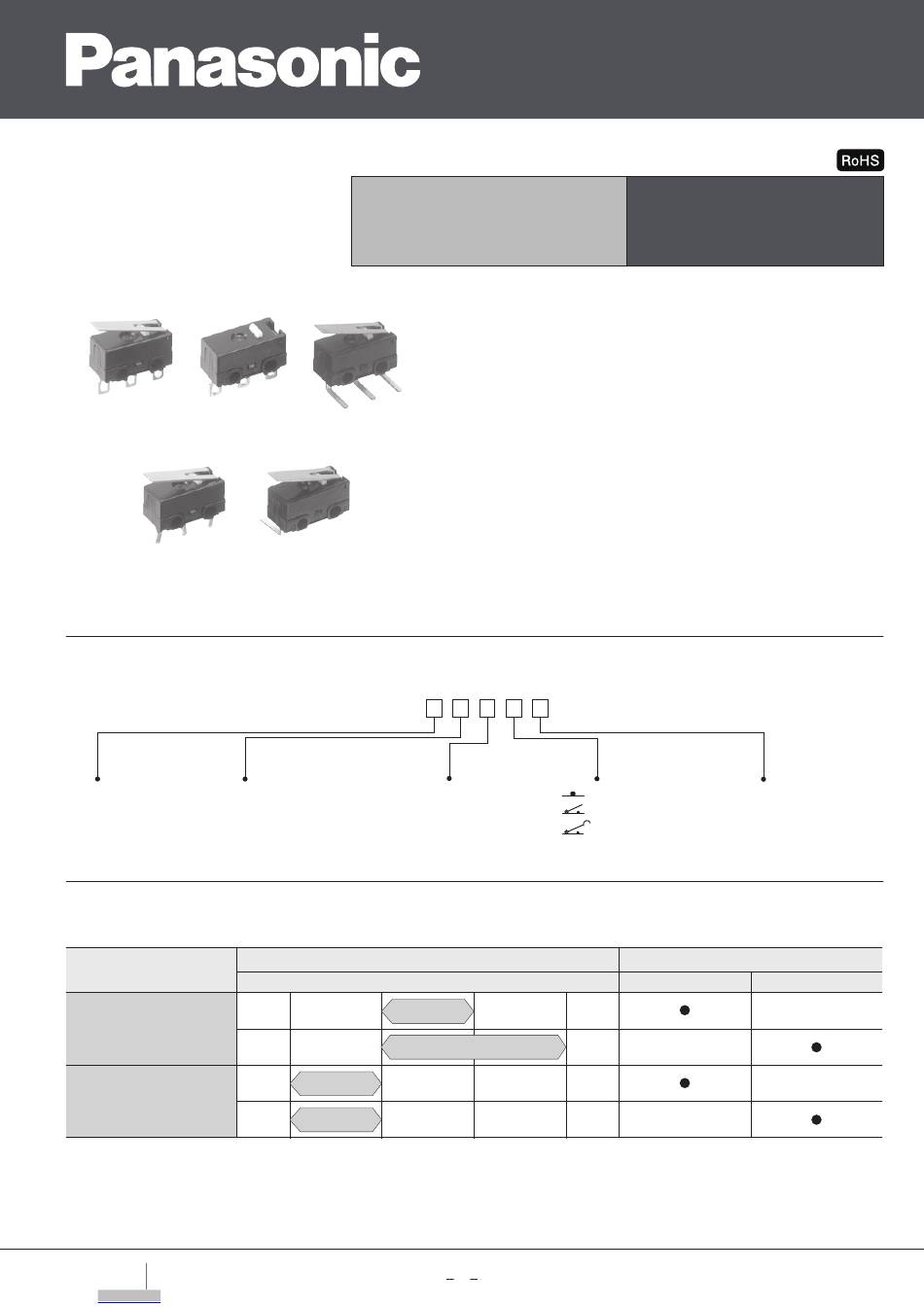

Panasonic AH1 Quick Start Manual

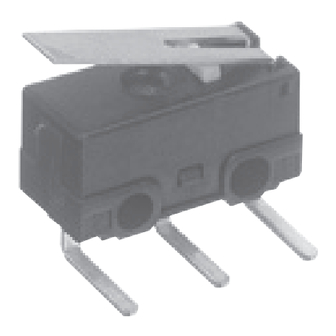

Ultra-miniature size switches with high precision
Hide thumbs Also See for AH1:
Table of Contents

Advertisement

Quick Links

Download this manual
ORDERING INFORMATION
Mounting hole and terminal
4: Self-standing PC board
terminal
5: Straight PC board terminal
6: Solder terminal
7: Right angle terminal
8: Left angle terminal
PRODUCT TYPES TABLE
Mounting hole M2 mm type (with stand off)
Contact specification
AgNi alloy contact type
AgNi alloy +
Au-clad contact type
2019.03
industrial.panasonic.com/ac/e/
Arrow.com.
Downloaded from
Ultra-miniature Size
Switches with High
Right angle terminal
Left angle terminal
AH 1
Operation Force (OF) by pin plunger, Max.
6: 1.47 N
8: 0.74 N
Applicable current range
1mA
0.1A
Automation Controls Catalog
Precision
FEATURES
• Compact size, light weight and high precision
• Switches that can be used with M2 general-purpose
screws
• Integrally molded terminals that discourage inflow of
solder flux provide and also switch body has stand-off
• Lineup also includes AgNi alloy + Au-clad contact types
optimized for low-voltage current loading
• Self-standing terminal easily mounted on PC boards
• Protection grade: IP40
TYPICAL APPLICATIONS
• Electric pot
• Automobiles (Detection of key position), etc.
Contact material
Actuator
Nil: AgNi alloy contact
0: Pin plunger
61: AgNi alloy + Au-clad contact
2: Hinge lever
4: Simulated roller lever
1A
3A
1
© Panasonic Corporation 2019
AH1 (FJ)
Switches
Safety standard
9: UL/C-UL
●
Available
Available
Operating Force OF (max.)
0.74N
1.47N
AECTB15E 201903

Advertisement

Table of Contents
loading

Related Manuals for Panasonic AH1

Summary of Contents for Panasonic AH1

  • Page 1 Mounting hole M2 mm type (with stand off) ● Available Available Applicable current range Operating Force OF (max.) Contact specification 0.74N 1.47N 0.1A AgNi alloy contact type AgNi alloy + Au-clad contact type 2019.03 industrial.panasonic.com/ac/e/ AECTB15E 201903 © Panasonic Corporation 2019 Arrow.com. Downloaded from...

  • Page 2: Product Types

    0.25 N AH17829 AH1782619 Hinge lever 0.49 N AH17629 AH1762619 0.26 N AH17849 AH1784619 Simulated roller lever 0.54 N AH17649 AH1764619 Panasonic Corporation Electromechanical Control Business Division AECTB15E 201903 industrial.panasonic.com/ac/e/ © Panasonic Corporation 2019 Arrow.com. Arrow.com. Downloaded from Downloaded from...

  • Page 3: Specifications

    Approx. 0.5g Protection grade IP40 Notes: 1. Test conditions and judgement are in accordance with NECA C 4505. 2. OF: Value of pin plunger type Panasonic Corporation Electromechanical Control Business Division AECTB15E 201903 industrial.panasonic.com/ac/e/ © Panasonic Corporation 2019 Arrow.com. Arrow.com.
  • Page 4 (Distance from mounting hole) DIMENSIONS (Unit: mm) General tolerance: ±0.25 The CAD data of the products with a CAD Data mark can be downloaded from https://industrial.panasonic.com/ac/e/ ■ Self-standing PC board terminal Pin plunger CAD Data External dimensions PC board pattern ±...
  • Page 5 ± 0.15 5.08 5.08 ± 0.15 12.8 Note: As for other actuator types, dimensions are the same as those of corresponding self-standing PC board terminal. Panasonic Corporation Electromechanical Control Business Division AECTB15E 201903 industrial.panasonic.com/ac/e/ © Panasonic Corporation 2019 Arrow.com. Arrow.com.

  • Page 6: Cautions For Use

    Please consult us if you intend to use a movement less than 70% may cause soldering iron of 60 W or higher. degrading of the electrical mechanical performance. Panasonic Corporation Electromechanical Control Business Division AECTB15E 201903 industrial.panasonic.com/ac/e/ © Panasonic Corporation 2019 Arrow.com.

  • Page 7: Technical Terminology

    Technical Terminology & Cautions for Use Technical Terminology & Cautions for Use (Detection Switches) TECHNICAL TERMINOLOGY ■ Detection Switches ■ Contact form A compact switch equipped with an enclosed micro-gap snap- This refers to the action contact mechanism that makes a specified motion with a components SPDT specified force to open/close a circuit, and an actuator outside...

  • Page 8: Operating Characteristic

    Technical Terminology & Cautions for Use OPERATING CHARACTERISTIC ■ Definition of operating characteristic The main terminological illustrations and Varying Classification Terminology Symbol Unit display Starting current meanings which are used with snap- method action switches are as follows. The force required to cause contact snap-action. It Operating Max.
  • Page 9 Technical Terminology & Cautions for Use TECHNICAL NOTES ON ELECTRICAL CHARACTERISTICS 1) The snap-action switch is designed for AC operations. While it beginning of use. However, as the contact surfaces develop films has small contact gaps and no arc absorber, it may be used for with time, the film may not be broken by the switching operation, low-capacity DC operations.

  • Page 10: Soldering Precautions

    Technical Terminology & Cautions for Use MOUNTING STATE AND ENVIRONMENT ■ Checking the insulation distance ■ Soldering precautions After mounting and wiring, check the insulation distance For manual soldering, lay the terminals flat (horizontal with the between terminals and the ground. If the insulation distance is ground) and quickly perform the soldering operation using a inadequate, mount insulating material between as required.
  • Page 11 Technical Terminology & Cautions for Use ■ Usage, storage, and transport conditions (except ■ We reserve the right to modify without notice the turquoise switches) materials, internal components, and other parts to improve product quality. During usage, storage, or transportation, avoid locations subject to direct sunlight and maintain normal temperature, humidity, ■...
  • Page 12 Technical Terminology & Cautions for Use ■ Types of actuators Operating Pretravel Overtravel Vibration Shape Classification Force Features (PT) (OT) Shock (OF) Appropriate for linear short-stroke action. Pin plunger acts directly on snap Out- action mechanism, enabling high-precision positioning. Amount of movement Pin plunger Small Small...
  • Page 13 2019 AECTB15E-1 201903 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
