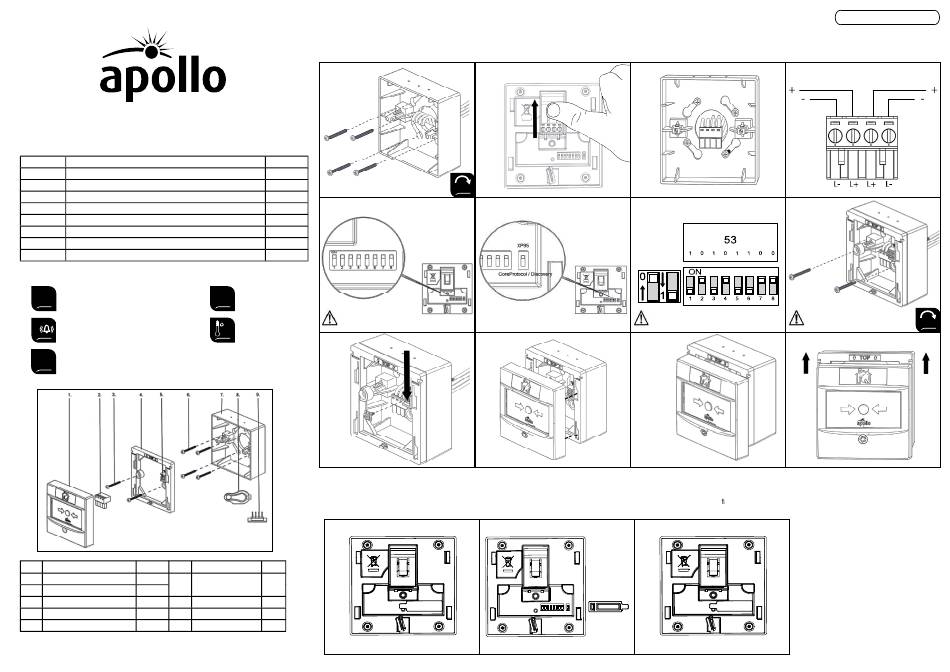

Intelligent Manual Call Point
Installation Guide
Part No
Product Name
SA5900-908 Intelligent Manual Call Point
SA5900-928 Intelligent Marine Manual Call Point
SA5900-948 Intelligent Marine Manual Call Point (SIL Approved)
SA5900-903 Intelligent Manual Call Point (White)
SA5900-904 Intelligent Manual Call Point (Yellow)
SA5900-905 Intelligent Manual Call Point (Blue)
SA5900-906 Intelligent Manual Call Point (Green)
SA5900-907 Intelligent Manual Call Point (Orange)
Technical Information
I
100µA (24V supply voltage)
I
4.0mA (24V supply voltage)
IP
IP44 (SA5900-928MAR)
Product Overview
Item
Qty.
1.
Head unit
1
6.
(NOT SUPPLIED)
2.
Connector block
1
3.
Fixing screws
2
7.
4.
Mounting bracket
1
8.
5.
Earth Continuity Terminal
1
9.
Continuity link
1
Type
Indoor
Indoor
Indoor
5
Indoor
Indoor
Indoor
Indoor
Indoor
V
17-35V DC
For SA5900-928MAR, please ensure gasket
C
is removed as per below.
-40°C to 70°C
9
SA5900-928MAR
For maintaining IP44 rating, please take care to remove the gasket before addressing and replacing after. This step ts
inbetween image 4 and 5, and is placed back on between image 7 and 8.
Item
Qty.
Fixing screws
N/A
Backbox
1
Reset key
1
1
Gasket in place
Installation
2
0.6Nm
6
10
Remove gasket and keep in a safe place
3
4
7
8
The 8th segment must be in set to "0"
Do not over tighten screws
for Discovery or XP95 operation
11
12
Note the alignment marks
Insert gasket after addressing
39214-996/Issue 4
0.6Nm
