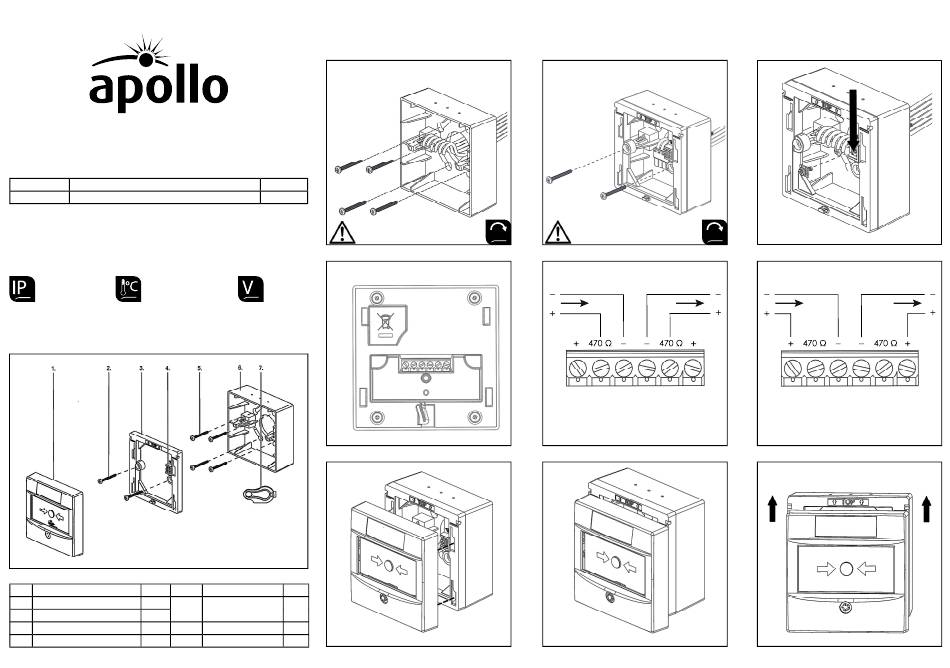

Apollo SC2900-001 Installation Manual

Conventional Manual Call Point
Installation Guide
Part No Product Name
SC2900-001 Conventional Manual Call Point
Technical Information
IP44 -40°C to 70°C
Product Overview
Item Qty
1. Head unit 1
5.
2. Fixing screws 2
3. Mounting bracket 1 6.
4. Earth Continuity Terminal 1 7.
1
Type
Indoor
Do not overtighten screws
4
18-30 V dc
6
Item Qty
Fixing screws
N/A
(NOT SUPPLIED)
Backbox 1
Reset key 1
Installation
2
Do not overtighten screws
0.6Nm
5a
LED will illuminate when call point is activated
7
Note the alignment marks
ABM22001-061/Issue 3
3
Functional Earth Wiring
0.6Nm
5b
LED will NOT illuminate when call point is
activated
8
