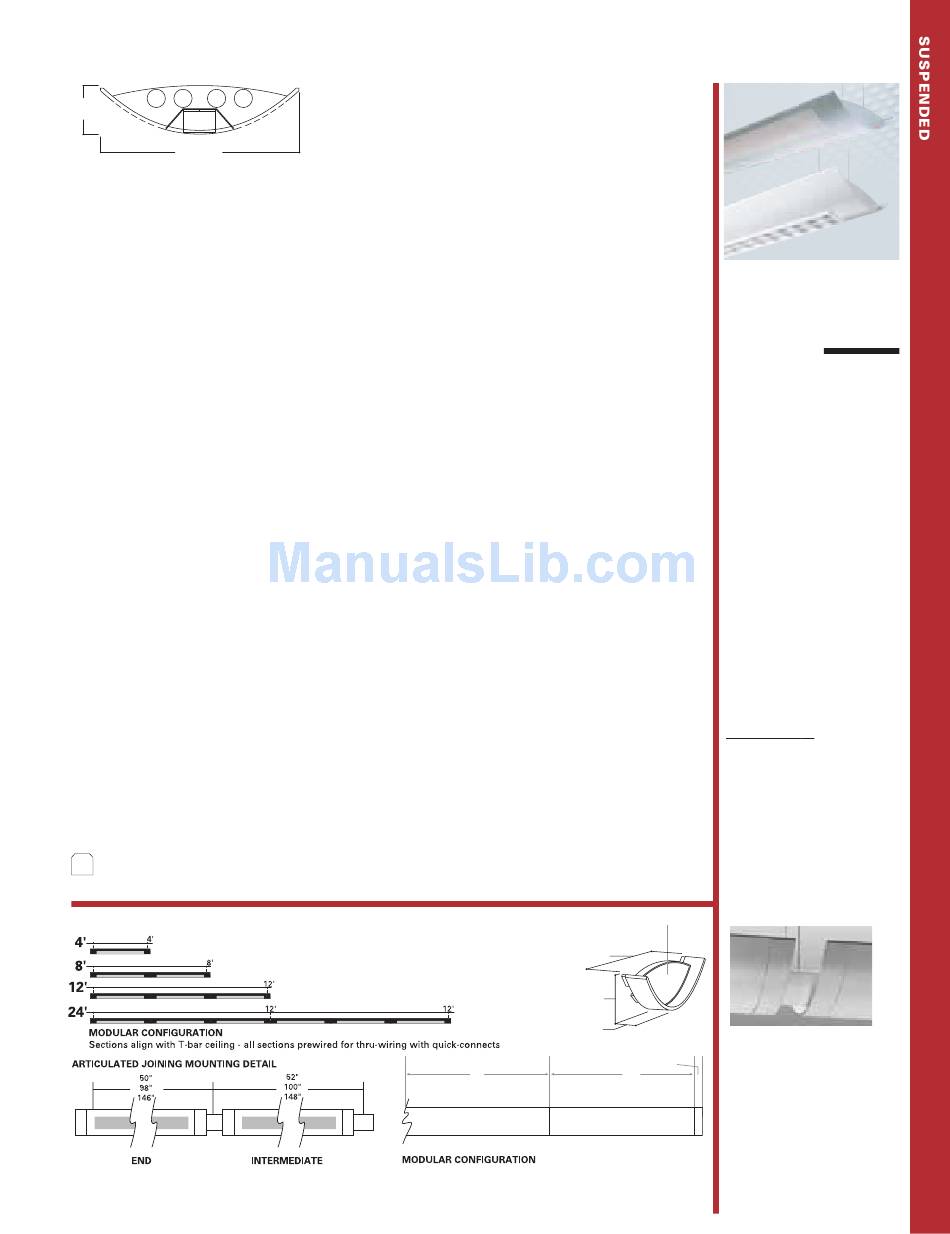

2-1/2"
[63mm]
S
10-3/4" [275mm]
T8 = 1, 2, 3 Lamp
T5 = 2, 3, 4 Lamp
Construction: Housing is one-piece, die-formed,
cold rolled steel, forming a 10-3/4" x 2-1/2" curved
architectural profile. Perforated sections are 33%
open with staggered hole pattern and opal diffuser.
Standard 4'-0", 8'-0" and 12'-0" luminaire lengths
combine for continuous runs.
End Caps: End caps are precision die-cast
aluminum mechanically attached without exposed
fasteners.
Reflectors: Center reflector is die-formed, highly
specular aluminum.
Electrical: Luminaires are prewired with quick wire
connectors and use UL list Class P, T5HO or T8
program rapid start universal voltage electronic
ballasts. Power factor of 97% with less than 10%
THD. Fixtures and electrical components certified to
UL and CUL standards.
Finish: Luminaire housings are standard white
using electrostatically applied acrylic powder coat
paint.
Mounting: Standard mounting includes dual
aircraft cable and mounts directly to all ceiling
types. Row mounted fixtures are continuous with
hairline joints unless Articulated Joint option is
specified. Mounts on fixtures with Articulated Joint
option will not align with grids.
S
= Slim Line Ballast only.
S T A N D A R D L U M I N A I R E L E N G T H S *
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
Ordering Information:
Sample number: 201-IP-SP-1T5HO-1C-277-DC48-T1-48
Series
201-IP=Shell II
201-DI=Shell D/I
Optics Up
S=Specular
Optics Down
P=Perforated (IP)
H=RPerformance ™ Louver (DI)
Number of Lamps
(not included)
1=1 Lamp (T5HO)
3=3 Lamps (T5HO, T8)
2=2 Lamps(T5HO, T8)
4=4 Lamps (T8)
Lamp Type
(Length)
T5HO=54W (4' Unit)
T8=32W (4' Unit)
1
Number of Circuits
1=1 Circuit 2=2 Circuits (*Standard 2 circuit option will switch
Inboard lamps together. Out board lamps will be on
circuit two.)
1
Wiring
C=Standard Circuit
B=Battery Pack
E=Emergency/Nightlight T=Nightlight
*Slim line ballast only (small case)
1
Voltage
1=120V
2=277V
3=347V
U=Universal
Suspension
D=Dual Cable
P=Rigid Pendant
Power Feed
1
C=Straight Cord
P=Rigid Pendant
Suspension Length
-Adjustable Cable
48", 120", 240", 300" or 360" (infinite adjustment along entire cable)
2
-Rigid Pendant
12", 15", 18", 21", 24" or 27"
Ceiling Type
T1=1" T-Bar
ST=Structure
T9=9/16" T-Bar
JB=4" Octagonal J-Box
Run Length
(Specify luminaire length in feet)
-Individually Mounted Luminaires may be 4', 8' or 12' in length.
-Continuously Mounted Standard row configurations over 12' consist
of 8' and 12' sections.
Joining
3
AJ=Articulated Joining Luminaire sections may be joined with an
optional aluminum coupler, which visually separates sections. Refer to
back page for mounting details.
1 Due to various constraints, some options may not be combined with others.
2 Consult factory for custom rigid pendant lengths.
3 Articulated Joining option will not align with grids.
4 Available with 7° or earthquake 45° swivel canopy assembly.
END CAP
10-3/4" [275mm]
2-1/2" [63mm]
1-1/4" [32mm]
8'
D=Dimming
• Die formed steel perforated
modular housing lengths –
4', 8' and 12' (201-IP only).
• Optional articulated joiners
4
[not suitable for precise
(single stem)
incremental mounting
centers]
K=Curly Cord
• Dual aircraft cable hangers
for superior leveling.
• Incremental mounting on the
ceiling grid - 4', 8' and 12'
(201-IP only) centers.
• Wide number of T5 and T8
TS=Slotted T-Bar
lamping options.
• Precision die cast end caps.
201-D/I features
• RPerformance TM parabolic
semi specular louver for RP-
1 compliance.
• Die formed modular housing
lengths – 4' and 8'
• Incremental mounting on the
ceiling grid - 4' and 8'
centers.
AJ - Articulated Joining
B
Optional aluminum coupler
1-1/4"
8'
NEO-RAY
™
SHELL II
201-IP
201-D/I
S E M I - I N D I R E C T ( I P )
D I R E C T- I N D I R E C T ( D / I )
717
COOPER LIGHTING
