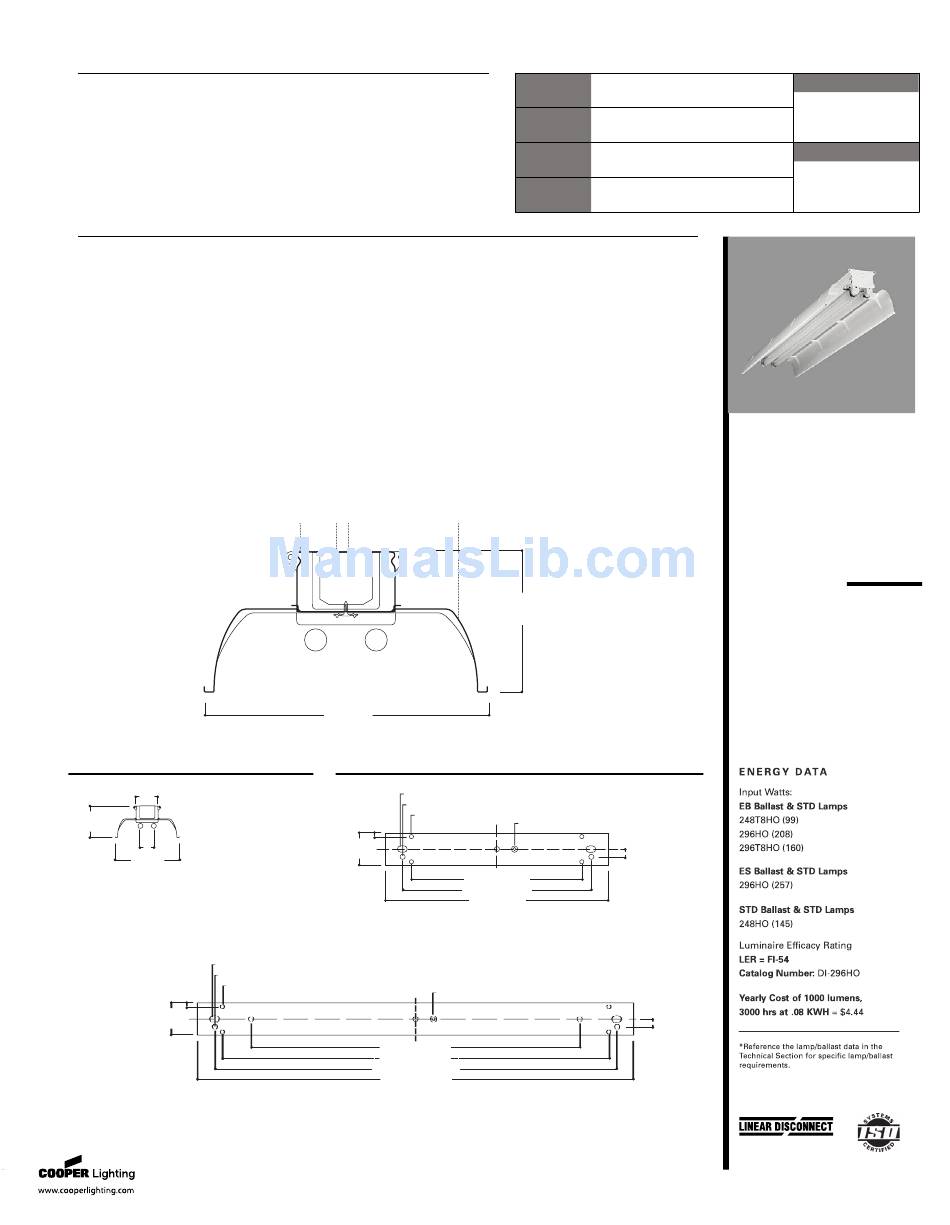

Cooper Lighting Metalux 248HO Specifications

DESCRIPTION

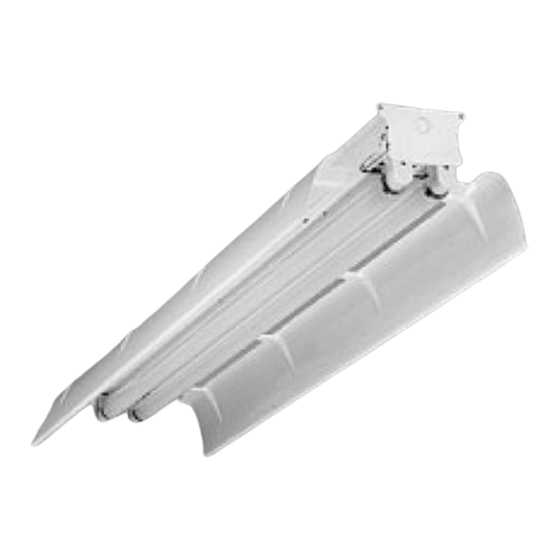

The DI Series is an energy efficient family of industrials that feature
premium performance and durability. The industrial series incorporates
heavy duty, embossed, reflectors that precisely direct and effectively control
light. The versatile DI Series can be installed using various mounting
methods and numerous options and accessories are available.
The DI Series can be utilized in simple task and area lighting to the most
demanding industrial applications.
SPECIFICATION FEATURES
A ... Construction
Channel is code gauge prime cold
rolled steel. Die formed with deep
V-grooves for tong hanger. Die
formed channel connector assures
straight rows and continuity of
ground through set screws.
Numerous KOs for ease of
installation. Lampholder mounting
brackets are easily inserted with
snap-in action.
LAMP CONFIGURATIONS
X
6-1/8"
[156mm]
X=4-1/4"
Y
[108mm]
13-1/2"
Y=2-5/8"
[343mm]
[67mm]
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (5)
5/16"
7/32" [6mm] x 3/8" [10mm] K.O. (4)
[8mm]
4-1/4"
[108mm]
COOPER LIGHTING - METALUX
B ... Electrical*
Ballast are CBM/ETL Class "P" and
positively secured by mounting
bolts. Spring loaded lampholders.
UL/CUL listed. Suitable for damp
locations.
C ... Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
Lighting grade, baked white
enamel finish.
A B C
13-1/2"
[343mm]
MOUNTING DATA
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (3)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
5/16"
[8mm]
4-1/4"
[108mm]
76" [1930mm]
85-1/4" [2165mm]
89-1/2" [2273mm]
96" [2438mm]
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Reflectors
Die formed prime steel, code
gauge. Deep draw full width ribs
formed with one press stroke. Side
flanges lend strength with upward
turn. Easily cleaned. Baked white
enamel 13-1/2" width. Four foot
sections. Reflectors secured by
positive retaining screw. Reflector
aligners provided. Standard with
6% uplight (DI). Closed top
reflector (DCI).
D
6-1/8"
[156mm]
Ground Screw Bump
37-1/4" [946mm]
41-1/2" [1054mm]
48" [1219mm]
Ground Screw Bump
HIGH OUTPUT, 800 MA
Medium Duty Industrial
1-1/16"
[27mm]
1-1/16"
[27mm]
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
09/17/2008 1:00:58 PM
®
Type
Date
DI
248HO
296HO
248T8HO
296T8HO
4' OR 8' INDUSTRIAL
2 LAMP
ADF020757
