LENCO Concerto DIR-2000 User Manual

Hide thumbs Also See for Concerto DIR-2000:

Advertisement

Quick Links

Download this manual

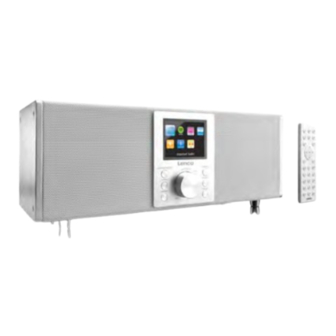

Model Lenco Concerto DIR-2000
User manual (2.1 WiFi Internet Radio with Bluetooth®, DAB+ and
Spotify Connect)
Gebruiksaanwijzing (2.1 WiFi Internet radio with Bluetooth®, DAB+
en Spotify Connect)
Benutzerhandbuch (2.1 WiFi Internet Radio mit Bluetooth®, und
Spotify Connect)
Mode d'emploi (Radio Internet 2.1 avec Bluetooth®, DAB+ et Sportify
Connect)
Manual del usuario (Radio Internet WI-FI 2.1 con Bluetooth®, DAB+ y
Spotify Connect)

Advertisement

loading

Related Manuals for LENCO Concerto DIR-2000

Summary of Contents for LENCO Concerto DIR-2000

  • Page 1 Model Lenco Concerto DIR-2000 User manual (2.1 WiFi Internet Radio with Bluetooth®, DAB+ and Spotify Connect) Gebruiksaanwijzing (2.1 WiFi Internet radio with Bluetooth®, DAB+ en Spotify Connect) Benutzerhandbuch (2.1 WiFi Internet Radio mit Bluetooth®, und Spotify Connect) Mode d’emploi (Radio Internet 2.1 avec Bluetooth®, DAB+ et Sportify Connect) Manual del usuario (Radio Internet WI-FI 2.1 con Bluetooth®, DAB+ y...
  • Page 2 Index English................(Page Number) Nederlands..............(Page Number) Deutsch................(Page Number) Français................(Page Number) Español................(Page Number) Version 1.0...
  • Page 3 Network Requirements  A broadband connection in combination with a wireless access point, router or similar network device is required.  Ensure the network device supports WiFi (802.11a/b/g/n) wireless connection.  Ensure the network which is connected with your PC, tablet or smartphone, etc.
  • Page 4 should disconnect the plug from the main power socket immediately.  This device must be well ventilated at all time!  This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
  • Page 5 disposal.  The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.  The rating label has been marked on the bottom panel of the apparatus.  This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received instructions about the correct use of the device by the person who is...

  • Page 6: Installation

    does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.  It is not recommended to use headphone with the device via 3.5mm Audio Out socket. In case of using the headphones, be reminded that excessive sound pressure or volumes from headphones or earphones can lead to damage to the hearing.
  • Page 7 Identification of Parts and Controls 9 10 Description Functions 3.2” TFT Screen Color display Buttons and Controls Standby/Mode Menu/Info Tuning- : FM Tuning- / Downward selection on the sub-menu Tuning+ : FM Tuning+ / Upward selection on the sub-menu Preset Back Reel: Volume and Navigate and press to OK...
  • Page 8 Antenna Rod antenna On/Off switch Power On/off Earphone socket 3.5mm socket for earphone connection Line In 3.5mm socket for line in Line Out 3.5mm socket for line out DC IN Power supply SPDIF OUT SPDIF socket for audio in connection to Hi-Fi system USB port Plug the USB drive, portable hard disk or...
  • Page 9 Warnings - Do not ingest the battery, Chemical Burn Hazard The included remote control: - This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. - Keep new and used batteries away from children.
  • Page 10 Getting Started Remove all packaging from the device. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included:  2.1 Wifi internet radio with Bluetooth and DAB+.  Power adaptor ...
  • Page 11 connect to the network the next time when you turn the device on again. In case you would like to change the network, enter System Setting to configure the corresponding connection. You may refer to Section 5.2.1 and 5.2.3 for details.
  • Page 12 Allow to share your media to the device (default name: Lenco Concerto) Add the audio files and folders that you want to share with the device to the media library. Operations Main Menu In the main menu, you can select the following modes: Internet Radio, Spotify...
  • Page 13 The time and date can be updated manually or automatically from DAB, FM or network. Auto-update is available in DAB, FM or Internet mode. The time will only be updated when in a corresponding mode, so it is best to select a mode that you use regularly.
  • Page 14 SSID (the name of network device). Select the one you want to connect. For the wireless connection, input encryption is required in the next step. Standard encrypted network To enter the network’s key, use the Navigation Control on the device or direction keys on the remote control to move the cursor through the characters and press to confirm.
  • Page 15 The device generates an 8-digit code number, which you enter into the wireless router, access point, or an external registrar. o Skip WPS Enter key as for a standard encrypted network. For more information on setting up a WPS encrypted network, please refer to your WPS router’s instructions.
  • Page 16 5.2.2 Equalizer Allows you to select different equalizers: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News. You may also create your own equalizers with customized bass, treble and loudness. Press on the remote control to enter the equalizer menu quickly. 5.2.3 Network ...
  • Page 17 DHCP (Dynamic Host Configuration Protocol).  Network profile The device has memory function to memorize the last four wireless networks that it has been connected to. The device will automatically connect to one of them whichever could be found and is available. The list of registered networks will be displayed.
  • Page 18 However, the current software version of the device can be stored as it is registered with the internal radio portal. All favorites in the Internet radio are also stored. Unless you re-register your device with another account on the portal website. 5.2.7 Software update Software upgrade to fix bugs and/ or additional features will be available.
  • Page 19 stations. While listening to an Internet radio station, you can press the Back button on the device/remote control to quickly return to the last visited branch of the menu tree. You may also press MENU/INFO on the device or MENU on the remote control to go to the first menu of the Internet radio mode.
  • Page 20 5.3.3 Favorites Favorites are stored in the Internet radio portal, and are available through all Internet radios registered on the same account. Before the favorites can be used, the radio has to be registered with the Internet radio portal. To register your device, choose Station list > Help > Get access code to get your radio’s unique portal access code.
  • Page 21 you may want to listen to stations not listed. You can add your own station via the portal. 5.3.5 Presets Presets are stored in the radio and cannot be accessed by other radios. To store an Internet radio preset, press and hold PRESET on the device on the remote control until the display shows the Save preset screen.
  • Page 22 Step 1. Add your new device to the same WiFi network as your phone, tablet or PC (see product user instructions for details). Step 2. Open the Spotify app on your phone, tablet or PC, and play any song. Step 3. If you’re using the app on a phone - tap the song image in the bottom left of the screen.
  • Page 23 5.5.1 Shared media If you have set up shared media, an entry consisting of <computer name>: <Shared media name> will be displayed.. If you have more than one computer sharing media, the alternatives are listed. Select the shared media that you want to play. The menus are now generated from the shared media server.
  • Page 24 Noted : The USB port is not support charging. 5.5.3 Repeat/shuffle Allows you to repeat tracks or play them in a random order. Press REPEAT/SHUFFLE on the remote control for shortcut. 5.5.4 Now playing information While a track is playing, the screen shows its track and artist (UPnP). There is also a progress bar with figures for elapsed and total track time.
  • Page 25 Control Panel > Network and Internet > Network and Sharing Center > Change advanced sharing settings > Media streaming options Open Windows Media Player to enable Allow remote control of my Player. Select any music in the library and choose Play to “Lenco Concerto”...
  • Page 26 A box of music playback pops up for the streaming. 5.6.2 Control on Smartphone / Tablet You may search (with keyword: DLNA) and install any free or commercial DLNA apps from Google Play or Apple Store if you are using Android mobile, tablet or iPhone / iPad. It is suggested to use BubbleUPnp or Twonky Beam on Android mobile, tablet;...
  • Page 27 Procedures for playing shared music on the app are as follows: Select the device as the player. Select music server and choose the music. Select player Select server (BubbleUPnp) (TwonkyBeam) NOTE: Some apps may not support streaming music from iPhone/iPod but the iPhone/iPod can still be used to control streaming music from other servers.
  • Page 28 time. Some apps can create a playlist if you choose several songs. If you want more details, please refer to your own instruction of the software or apps that you used for DLNA streaming. DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing.
  • Page 29 To remove stations that are listed but not unavailable, choose Prune invalid. Turn on the Navigation Control on the device to view a list of stations and press OK to confirm. The screen will show information of the selected station, track or shown as broadcast. 5.7.2 Presets To store a DAB+ preset, press and hold PRESET on the device or on the remote control until the display shows the Save preset screen...
  • Page 30  Station order Allow you to rearrange the order of the DAB+ station list to be either Alphanumeric, Ensemble or Valid. Ensemble lists groups of stations that are broadcasted together on the same ensemble. Valid lists and valid stations first, alphanumerically, then off-air stations.
  • Page 31 You can turn on your smart phone/ tablet/ other Bluetooth device for pairing. The Bluetooth pairing name is “Lenco Concerto”. You can control the music playback on your BT device. It is supported by play/pause, Next track/Prev track on the remote control.
  • Page 32 Press and hold to release BT pairing. 5.10 AUX IN Aux in mode plays audio files from an external source such as an MP3 player. To play an audio file with the Aux in mode follow the steps below: Turn the volume low on both the device and, if adjustable, the audio source device.
  • Page 33 function which can turn the system off after a set period. Each alarm can be set in a particular mode. Select Alarms in the Main menu or press Alarm on the remote control to set or change an alarm. Select the alarm number (1 or 2) then configure the following parameters: Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays, Time...
  • Page 34 5.13.1 Audio out socket It allows you to connect an audio cable from the device to your own HiFi speaker system to enhance sound performance. 5.13.2 Earphone out socket It allows you to connect an audio cable from the device to your earphone.
  • Page 35 2. The station may not be available currently, try it again later or select another station. 3. The link of the station is changed or the station no longer transmits – ask the provider for information. 4. The link of the manually added station is not correct, make sure it is correct and re-enter.
  • Page 36 If the display indicates a problem, move the device away from near devices which cause electromagnetic interference or reset the device. Specification Model number Lenco Concerto Description Internet radio with DAB/DAB+/FM/Bluetooth Display 3.2", 320 x 240, TFT colour display Network supported IEEE 802.11 b/g/n wireless (WiFi)
  • Page 37 (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.
  • Page 38 (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. Hereby, Lenco Benelux BV, Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
