Randell 2010 Specifications

Upright reach-in single door refrigerator
Hide thumbs Also See for 2010:

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Upright Reach-In Single Door Refrigerator
model
2010 (Stainless Steel Door)
Description:
Randell Series 2000 Upright are built for years of efficient, high
performance service. The top mounted, expansion valve refrig-
eration system offers the highest, most consistent performance
available while maximizing usable interior space.
Finishes:
Standard Series
Doors/Louver: Stainless steel.
Exterior Sides: Anodized aluminum. Interior: Anodized aluminum
E Series
Cabinet interior, exterior sides, fronts,
and doors stainless steel.
Specifications:
CABINET EXTERIOR: Cabinet body is constructed of all metal,
inside & out. The top, bottom, & back are galvanized steel. Front
and sides are available in finishes as listed above. Door and louver
are stainless steel and are removable without tools. Unit on 6"
casters, front two are locking.
CABINET INTERIOR: Interior of cabinet is fully coved to meet N.S.F.
standard #7. The interior walls, ceiling and door liner are available
in either stainless steel or anodized aluminum as listed above.
Foamed in place, CFC free urethane insulation. Snap-in A.B.S.
breaker strips.
DOORS: Stainless steel front with either anodized aluminum
or stainless steel liner, mounted on heavy duty cam lift hinges
with automatic light switch, heavy duty chrome handle, cylinder
door lock. Glass doors to be insulated glass with bright extruded
aluminum frames, switch for interior light mounted on exterior of
glass door unit.
REFRIGERATION: Top mounted condensing unit and evaporator coil,
expansion valve system with thermostatic control, factory tested
and balanced to maintain 38˚ F. average interior temperature utiliz-
ing CFC free 134a refrigerant. Evaporator coil is coated to resist
corrosion. Unit supplied with master on/off switch and 8' cord and
plug. Access to service points without tools is standard.
Standard Features:
• Expansion Valve
• Exterior LED Temperature Display
• Top mounted Compressor & Evaporator Coil
• C.F.C. Free R-134a Refrigerant
• Efficient Hot Gas Condensate Evaporator
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-266-5244
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
2011 (Glass Door)

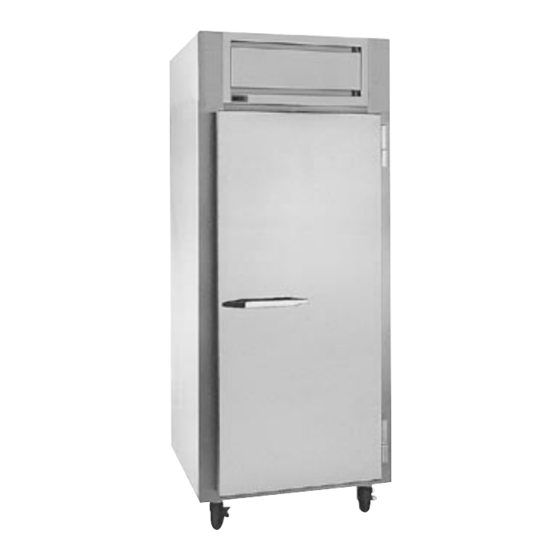

model 2010 shown
Standard Features Continued:
• Automatic Defrost
• 8' Cord & Plug
• Main Power Supply Switch
• Self-Closing Cam Lift Hinges with 120˚ Open Feature (Lifetime Warranty)
• Automatic Interior Light for door
• 6" Casters - Factory Mounted (Front two Locking)
• Cylinder Door Locks
• Polyurethane Insulation
• Snap-In Magnetic Door Gaskets
• 3 Baked Epoxy Coated Wire Shelves With Stainless Steel Support Clips
(Adjustable every 1")
• Fully Coved Interior Meeting N.S.F. Standard #7
Options & Accessories:
Universal Tray Slides (set of two)
*1/2 Doors
Solid
6" Legs
Remote (Add Suffix "R")
Extra Interior Shelves Qty.
(maximum of (23) or (20) additional on 1.5" centers-leaves 1" clear)
Finished Back
Export Voltage(s) Specify Voltage
Prison Package
*Split glass door option available on model 2011 only.
models 2010
Qty.
Sets
Glass
Qty.
Location
Randell Upright, Page 1
Revised 08/05
