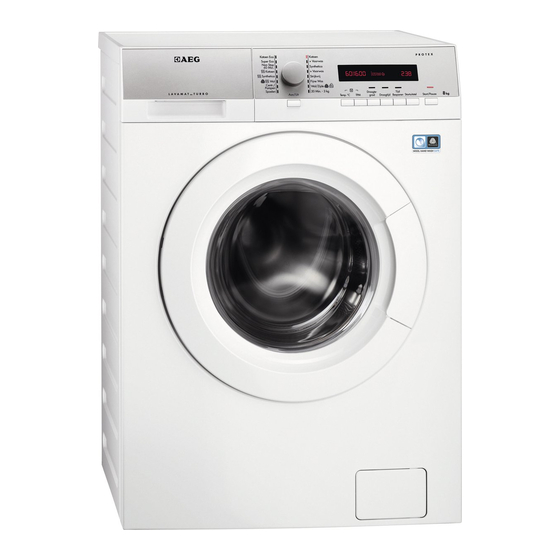

AEG L76680WD User Manual

AEG L76680WD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
User Manual
L76680WD
Washer Dryer

Advertisement

Table of Contents
loading

Related Manuals for AEG L76680WD

Summary of Contents for AEG L76680WD

  • Page 1 User Manual L76680WD Washer Dryer...

  • Page 2: Table Of Contents

    16. TECHNICAL DATA..................... 32 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
  • Page 4 Connect the mains plug to the mains socket only at • the end of the installation. Make sure that there is access to the mains plug after the installation. The ventilation openings in the base (if applicable) • must not be obstructed by a carpet.

  • Page 5: Safety Instructions

    ENGLISH Fabric softeners, or similar products, should be used • as specified by the fabric softener instructions. Remove all objects from pockets such as lighters and • matches. Never stop the wash dryer before the end of the • drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
  • Page 6 • Do not touch the mains cable or the • Do not dry the damaged items which mains plug with wet hands. contain padding or fillings. • Only for UK and Ireland: The • If you have washed your laundry with appliance has a 13 amp mains plug.

  • Page 7: Product Description

    ENGLISH 3. PRODUCT DESCRIPTION 3.1 Appliance overview Worktop Detergent dispenser Control panel Door handle Rating plate Drain pump filter Feet for the appliance level 3.2 Installation on suspended 3.3 Fixing plate kit flooring (4055171146) Suspended wooden floors are Available from your authorized dealer. particularly susceptible to vibration.

  • Page 8: Control Panel

    4. CONTROL PANEL 4.1 Control panel description Cottons Super Eco + Prewash Wash/Dry Synthetics 60 min. Cottons Dry + Prewash Synthetics Dry Easy Iron Wool Dry Delicates Spin/Drain Wool/Silk Rinse 20 Min. - 3 kg On/Off On/Off button Drying time button...
  • Page 9 ENGLISH Spin area: Spin speed indicator No Spin indicator Rinse Hold indicator 1) Only available for Spin/Drain programme. Dryness level symbols Iron dry Cupboard dry Extra dry Display indicators Door locked - You cannot open the door when this symbol is on. You can open the door only when the symbol goes off.

  • Page 10: Programmes

    Time area: Programme duration (washing and/or drying phase) When the programme starts, the time decreases with steps of 1 mi- nute. Delay start When you press the delay start button, the display shows the delay start time. Alarm codes If the appliance has a malfunction, the display shows alarm codes.
  • Page 11 ENGLISH Programme Maximum load Programme description Temperature Maximum spin (Type of load and soil level) range speed Synthetic items to be gentle washed. Normal and 3.5 kg 800 rpm light soil. Easy Iron 60°C - Cold 3.5 kg Delicate fabrics as acrylics, viscose, polyester items.
  • Page 12 Programme Maximum load Programme description Temperature Maximum spin (Type of load and soil level) range speed White cotton and colour-fast cotton. Normal soil. 8 kg 1600 rpm The energy consumption decreases and the time of Cottons Eco the washing programme is extended.
  • Page 13 ENGLISH Programme Extra Delay Spin Time Save Start Rinse Cottons Eco ■ ■ ■ ■ ■ 1) If the Permanent Extra Rinse option is activated, the appliance adds some additional rinses. In the Rinse programme, if you set a low spin speed the appliance performs delicate rinses and a short spin. 2) If you set a shorter duration, we recommend that you decrease the quantity of the load.

  • Page 14: Consumption Values

    Dryness Level Type of fabric Load Spin Suggested (kg) speed duration (rpm) (mins) Cupboard Dry Cottons and Linen 1600 145 - 160 For items to put away (bathrobes, bath towels, etc) 1600 75 - 90 1600 50 - 60...

  • Page 15: Options

    ENGLISH At programme start the display shows the duration programme for the maximum load capacity. During the washing phase the programme duration is automatically cal- culated and can be greatly reduced if the laundry load is lower than the maximum load capacity (e.g. Cotton 60°C, maximum load capacity 8 kg, the programme duration exceeds 2 hours;...

  • Page 16: Settings

    7.3 Drying level You cannot set all time values for different types of Press this button to set one of 3 fabrics. automatic dryness levels proposed by the appliance. The display shows the 7.5 Time Save symbol of the set level: With this option you can decrease the Iron dry –...

  • Page 17: Daily Use

    ENGLISH 2. Put a small quantity of detergent in This removes all possible dirt from the the compartment for washing phase. drum and the tub. 3. Set and start a programme for cotton at the highest temperature without laundry. 10. DAILY USE 10.1 Loading the laundry Compartment for prewash phase, 1.
  • Page 18 3. Press button On/Off to activate the appliance. A short tune sounds. 10.5 Setting a programme 1. Turn the programme knob and set the programme: • The related programme indicator comes on. • The indicator of Start/Pause flashes. • The display shows: the default temperature, the spin speed, the 4.
  • Page 19 ENGLISH 10.7 Behaviour of the 2. Change the function set. 3. Press the button Start/Pause again. appliance The programme continues. After approximately 15 10.11 Cancelling a running minutes from the start of the programme programme: • The appliance adjusts 1. Press button On/Off to cancel the automatically the cycle programme and to deactivate the time to the laundry you...

  • Page 20: Daily Use - Drying Only

    After five minutes from the end of the 4. Press On/Off some seconds to programme, the energy saving function deactivate the appliance. automatically deactivates the appliance. The appliance drains and When you activate the spins automatically after appliance again, the display approximately18 hours.

  • Page 21: Daily Use - Washing & Drying

    ENGLISH 11.2 Drying at automatic levels The appliance calculates also the duration of the anti-crease and The laundry can be dried at pre-defined the cooling phases. levels of dryness: 2. Press Start/Pause to start the programme. 1. Press Drying level again and again •...
  • Page 22 12.3 Washing & Timed Drying 2. Load the laundry one item at a time. To have a good drying To have a good drying the appliance performance do not exceed does not let you set a too low spin speed the maximum drying loads for the items to be washed and dried.

  • Page 23: Hints And Tips

    ENGLISH • To do not wash dark fabrics after you 1. Empty the drum. washed and dried light coloured 2. Clean the drum, the gasket and the fabrics (new sponge, wool, sweatshirt ) door with a wet cloth. and the contrary. 3.
  • Page 24 • Quilts. level of soil. • Bed covers. • If your appliance has not the • Duvets. detergent dispenser with the flap • Anoraks. device, add the liquid detergents with • Sleeping bags a dosing ball (supplied by the •...

  • Page 25: Care And Cleaning

    ENGLISH To avoid the static charge at the end of When the drying programme is the drying cycle: completed remove the laundry in a short time. 1. Use fabric conditioner in the washing cycle. 2. Use special fabric conditioner for tumble dryers.
  • Page 26 14.6 Cleaning the inlet hose and the valve filter 45° 20° 14.7 Cleaning the drain filter Do not clean the drain filter if the water in the appliance is hot.
  • Page 27 ENGLISH...

  • Page 28: Troubleshooting

    14.8 Emergency drain 0° C, remove the remaining water from the inlet hose and the drain pump. Because of a malfunction, the appliance 1. Disconnect the mains plug from the cannot drain the water. mains socket. If this occurs, do steps (1) through (9) of 2.
  • Page 29 ENGLISH • - No communication between WARNING! electronic elements of the appliance. Deactivate the appliance Switch off and switch on again. before you do the checks. • - The anti-flood device is on. Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.
  • Page 30 Problem Possible solution Set the drain programme if you set an option which ends with water in the tub. The spin phase does not Set the spin programme. operate or the washing cycle lasts longer than usually. Make sure that the drain filter is not clogged. Clean the filter, if necessary.
  • Page 31 ENGLISH Problem Possible solution Decrease the laundry load. You cannot set an op- Make sure that you press only the wanted button(s). tion. The appliance does not Turn the water tap on. dry or does not dry cor- rectly. Make sure the drain filter is not clogged. Reduce the laundry load.

  • Page 32: Technical Data

    5. Take out the laundry and then close the appliance door. 6. Close the filter flap. 16. TECHNICAL DATA Dimension Width/ Height/ Depth/ 600 mm/850 mm/ 522 mm/ 540 mm Total depth Electrical connection Voltage 230-240 V Overall power...
  • Page 33 ENGLISH...
  • Page 34 www.aeg.com...
  • Page 35 ENGLISH...
  • Page 36 www.aeg.com/shop...
