Section 2 - OPERATING INSTRUCTIONS
2.3 STARTING – STOPPING

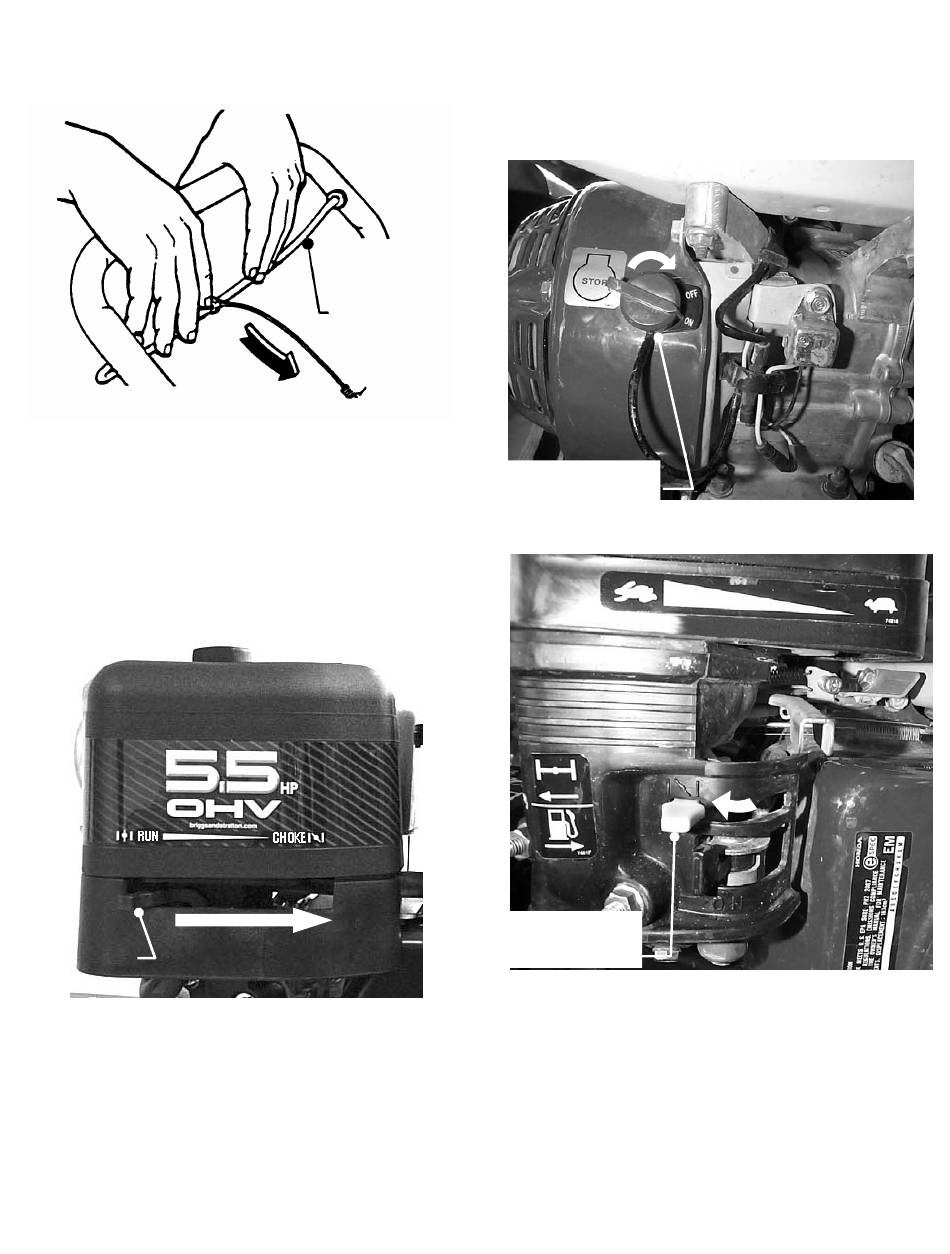

FIGURE 4
2.4 ENGINE STARTING PROCEDURE
Step 1: Place the WHEEL and TINE SHIFT LEVER in
the NEUTRAL position and make sure the WHEEL and
TINE CONTROL BAIL is in the released position.
Step 2: Briggs Engine - For cold starts, move the
CHOKE CONTROL on the engine forward into CHOKE
position. See Figure 5.
CHOKE
PUSH FORWARD TO CHOKE
LEVER
FIGURE 5
Step 2: Honda Engine - For cold starts, move the
ENGINE KILL SWITCH to the "ON" position. See Figure
5A. Move the CHOKE CONTROL on the engine
rearward into CHOKE position. See Figure 5B.
TO STOP
WHEEL & TINE
DRIVE RELEASE
WHEEL & TINE
CONTROL BAIL
MOVE THE ENGINE
KILL SWITCH TO "ON"
MOVE THE CHOKE
CONTROL TO THE
CHOKE POSITION
7
FIGURE 5A
FIGURE 5B
