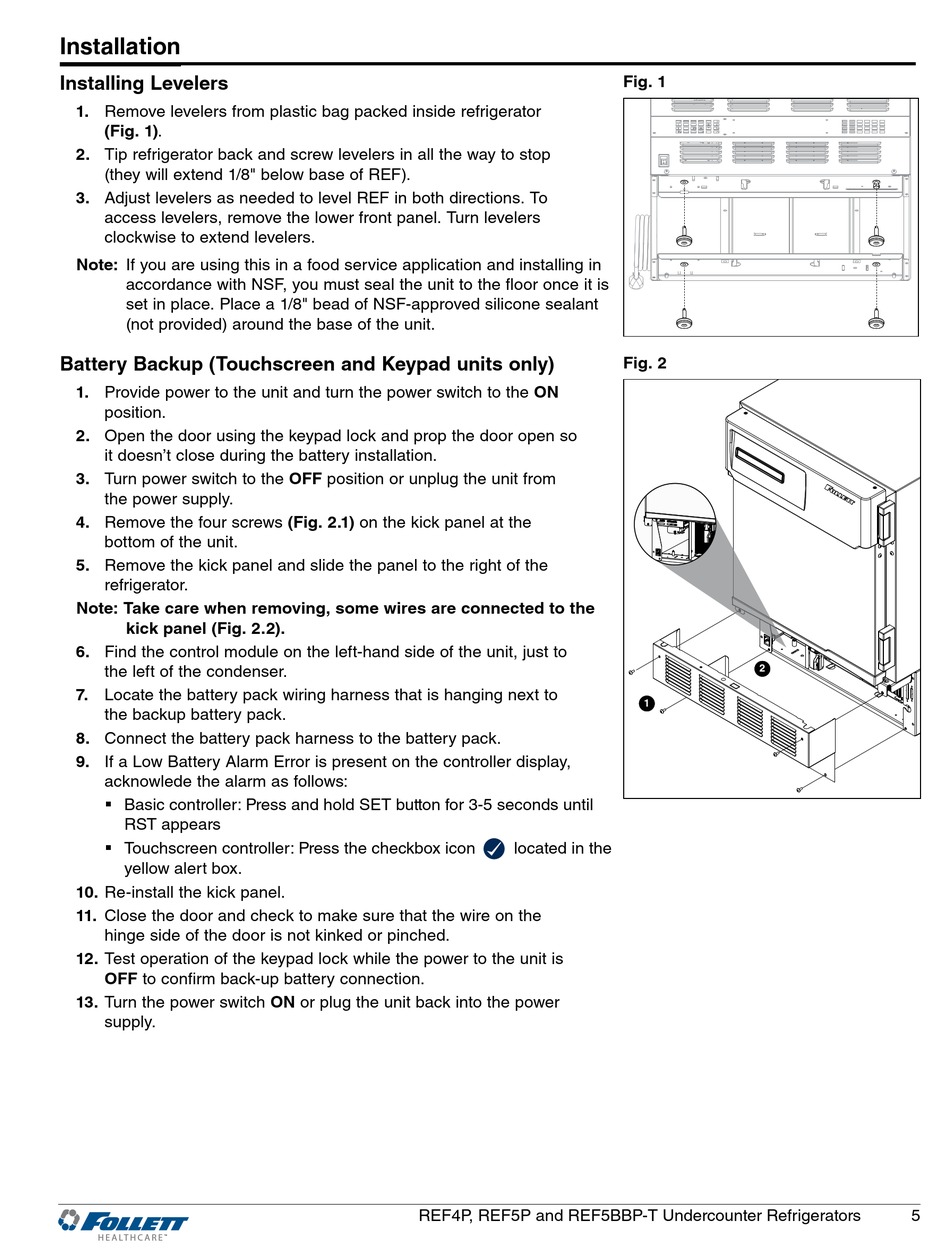

Installation

Installing Levelers

1. Remove levelers from plastic bag packed inside refrigerator
(Fig. 1).
2. Tip refrigerator back and screw levelers in all the way to stop
(they will extend 1/8" below base of REF).
3. Adjust levelers as needed to level REF in both directions. To
access levelers, remove the lower front panel. Turn levelers
clockwise to extend levelers.
Note: If you are using this in a food service application and installing in
accordance with NSF, you must seal the unit to the floor once it is
set in place. Place a 1/8" bead of NSF-approved silicone sealant
(not provided) around the base of the unit.

Battery Backup (Touchscreen and Keypad units only)

1. Provide power to the unit and turn the power switch to the ON
position.
2. Open the door using the keypad lock and prop the door open so
it doesn't close during the battery installation.
3. Turn power switch to the OFF position or unplug the unit from
the power supply.
4. Remove the four screws (Fig. 2.1) on the kick panel at the
bottom of the unit.
5. Remove the kick panel and slide the panel to the right of the
refrigerator.
Note: Take care when removing, some wires are connected to the
kick panel (Fig. 2.2).
6. Find the control module on the left-hand side of the unit, just to
the left of the condenser.
7. Locate the battery pack wiring harness that is hanging next to
the backup battery pack.
8. Connect the battery pack harness to the battery pack.
9. If a Low Battery Alarm Error is present on the controller display,
acknowlede the alarm as follows:
§ Basic controller: Press and hold SET button for 3-5 seconds until
RST appears
§ Touchscreen controller: Press the checkbox icon
yellow alert box.
10. Re-install the kick panel.
11. Close the door and check to make sure that the wire on the
hinge side of the door is not kinked or pinched.
12. Test operation of the keypad lock while the power to the unit is
OFF to confirm back-up battery connection.
13. Turn the power switch ON or plug the unit back into the power
supply.
