Summary of Contents for ABB OPT-MF-005

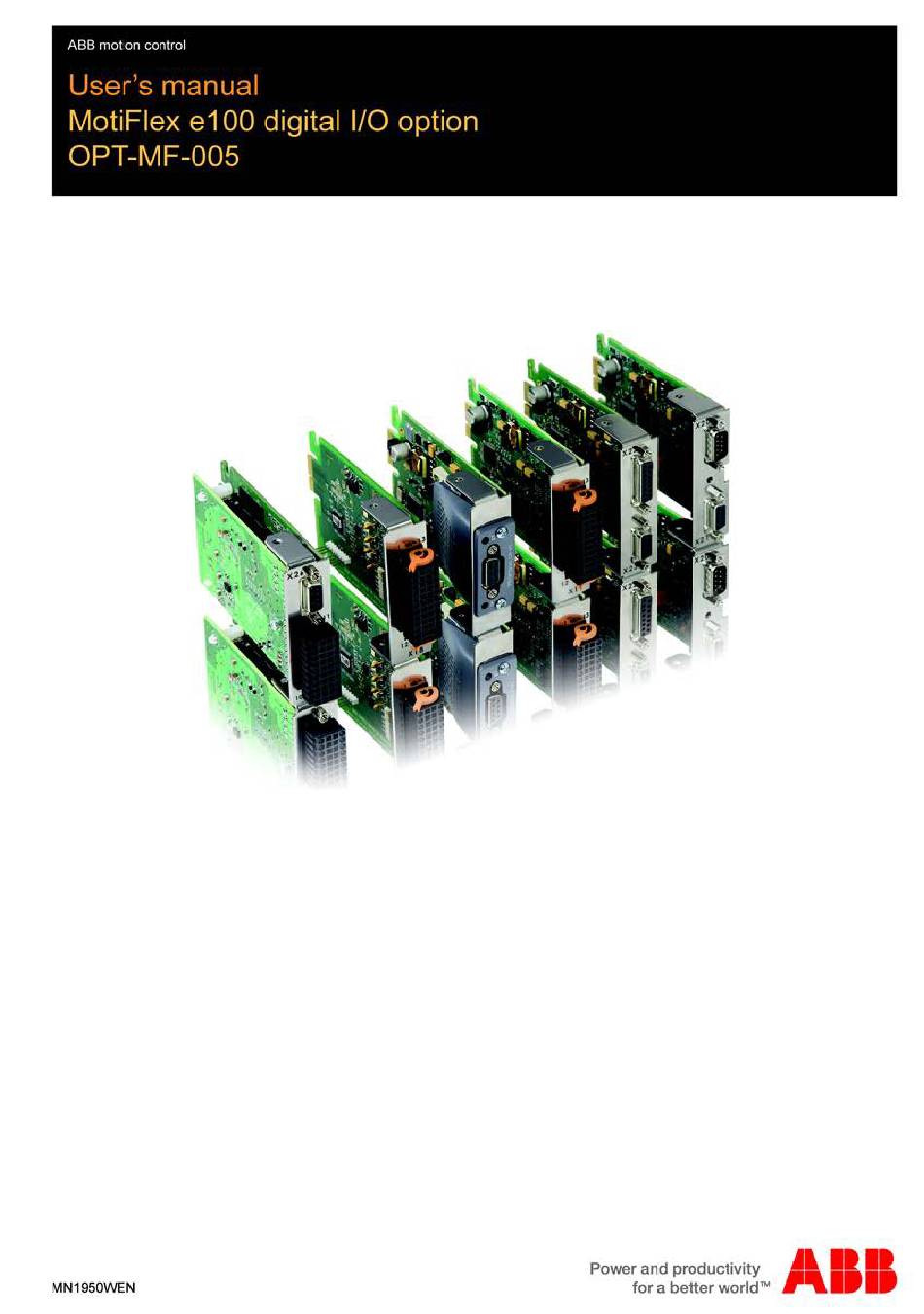

- Page 1 All manuals and user guides at all-guides.com MN1950 Digital I/O Option...
- Page 2 All manuals and user guides at all-guides.com...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Contents General Information Introduction Digital I/O option features ....... 2-1 2.1.1 Installation . - Page 4 All manuals and user guides at all-guides.com ii Contents MN1950WEN...
-
Page 5: General Information
This manual is copyrighted and all rights are reserved. This document or attached software may not, in whole or in part, be copied or reproduced in any form without the prior written consent of ABB. ABB makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of fitness for any particular purpose. - Page 6 All manuals and user guides at all-guides.com Product Notice Only qualified personnel should attempt the start-up procedure or troubleshoot this equipment. This equipment may be connected to other machines that have rotating parts or parts that are controlled by this equipment. Improper use can cause serious or fatal injury. Safety Notice Intended use: Drives incorporating this product are intended for use in stationary ground based applications in industrial power installations according to the standards EN60204 and VDE0160.
-
Page 7: Introduction
All manuals and user guides at all-guides.com Introduction 2 Introduction 2.1 Digital I/O option features The Digital I/O option is available as a customer-fitted option for the MotiFlex e100 range of drives. The option adds a number of features to the drive: Six opto-isolated digital inputs. - Page 8 All manuals and user guides at all-guides.com 4. Confirm that the correct option card is being installed. The description is printed on the leading edge of the card, furthest from the mounting bracket. Insert the option card with the main component side facing towards the center of the drive.
-
Page 9: Input / Output
All manuals and user guides at all-guides.com Input / Output 3 Input / Output 3.1 Introduction All external connections to the Digital I/O option card are made using the 24-pin connector. The required Weidmüller Minimate B2L 3.5/24 mating connector is supplied. The digital inputs and outputs are described in the following sections. - Page 10 All manuals and user guides at all-guides.com DOUT32- 1 13 DOUT32+ DOUT33- 2 14 DOUT33+ DOUT34- 3 15 DOUT34+ DOUT35- 4 16 DOUT35+ Shield 5 17 Shield Shield 6 18 Shield DIN32- 7 19 DIN32+ DIN33- 8 20 DIN33+ DIN34- 9 21 DIN34+ DIN35- 10 22 DIN35+...
-
Page 11: Digital Inputs
OPT-MF-005 Digital I/O NextMove e100 / controller User UDN2982 supply USR V+ 24 V Mint OUTX(0) DOUT0 DIN32/64+ 100R DIN32/64- USR GND TLP280 User supply Figure 3-4: Digital input - typical connection from an ABB NextMove e100 MN1950WEN Input / Output 3-3... -
Page 12: Digital Outputs
This is to protect the output from the back-EMF generated by the relay coil when it is de-energized. The sense of the output can be configured in Mint WorkBench, and its state is displayed in the Spy window. User supply OPT-MF-005 Digital I/O 24 V +3.3V Fuse... - Page 13 User TLP280 supply Figure 3-6: Digital output - typical connections to an ABB NextMove e100 3.1.4 Power consumption The maximum overall power consumption of the Digital I/O option card is 0.5 W. See the main MotiFlex e100 installation manual (MN1943WEN) for further details about the option slots’...
- Page 14 All manuals and user guides at all-guides.com 3-6 Input / Output MN1950WEN...
- Page 15 All manuals and user guides at all-guides.com MN1950WEN Input / Output 3-7...
- Page 16 All manuals and user guides at all-guides.com 3-8 Input / Output MN1950WEN...
- Page 17 If you have any suggestions for improvements to this manual, please let us know. Write your comments in the space provided below, remove this page from the manual and mail it to: Manuals ABB Ltd Motion Control 6 Bristol Distribution Park...
