Getting Started

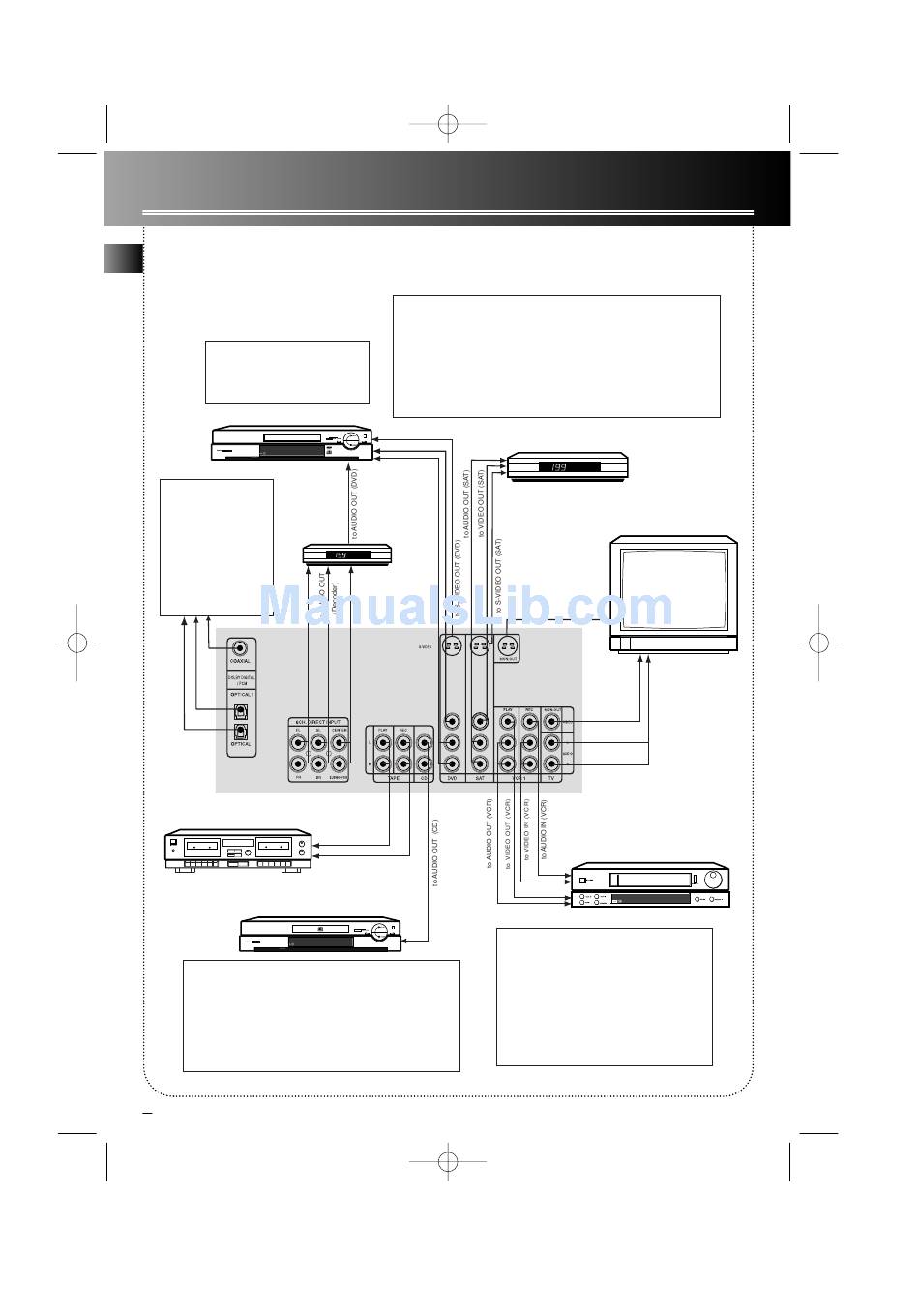

Connecting to Audio-Visual Components
EN
Remark: If you have a video
camera, video game machine, or an
extra VCR, connect it to VCR 2 jack
at the front of the receiver
Connect components
capable of outputing
DTS/ Dolby Digital (e.g.
DVD or SAT) or standard
PCM (CD) format digital
signals. Read section on
"Input Signal Setting"
under "Advanced
Sound Control" carefully
to adjust the matching
input settings.
Tape Deck
If your CD player is equipped with digital optical jacks, using of
optical cable is preferred. What you need is just one more
optical digital connecting cord(not supplied). Plug it in the digital
input jack of the receiver and you can enjoy better sound quality
brought to you by the optical cable. When optical cable is used,
no more analog cable is needed.
Note: This receiver has one digital optical jack only. Be sure that
such connection does not prevent optical cable connection of
other components (e.g. DVD & SAT)
4
2:56 PM Page 8
DVD
to VIDEO OUT (DVD)
to AUDIO OUT(DVD)
Multi-Channel
Decoder
e.g. DTS
(CD)
(SAT)
2
(DVD)
UNIT
BACK PANEL
to LINE OUT
(Tape Deck)
to LINE IN ( Tape Deck )
CD Player
If you have a SAT receiver or DVD player, you can make use of an optical
digital connecting cord (not supplied) or coaxial digital connecting cord
(not supplied) to enjoy DTS/ Dolby Digital sound quality. One optical /
coaxial cable is needed for each SAT receiver / DVD player. When optical
or coaxial cable is used, no more analog cable is needed.
Note: This receiver provides one optical and one coaxial digital input for
the connection of your auxillary components. Please connect your
components (e.g. DVD, SAT or CD) to the appropriate digital inputs and
press SET/ DEMO and then rotate MULTI JOG to match your connection.
to S-VIDEO IN (TV)
If your video component has a S-Video jack
included, you can make use of it to enjoy
enhanced video quality by connecting it to the
relevant S-Video jack at the rear side of the
receiver. One video cable is needed for each
component. When S-Video cable is used, no
more analog video cable is needed.
Note: Before plugging in the optical cable or S-
Video cable, make sure to match the shape of the
plug and jack, otherwise, you will not be able to
plug in completely.
SAT
TV
to VIDEO IN (TV)
to AUDIO OUT (TV)
VCR
