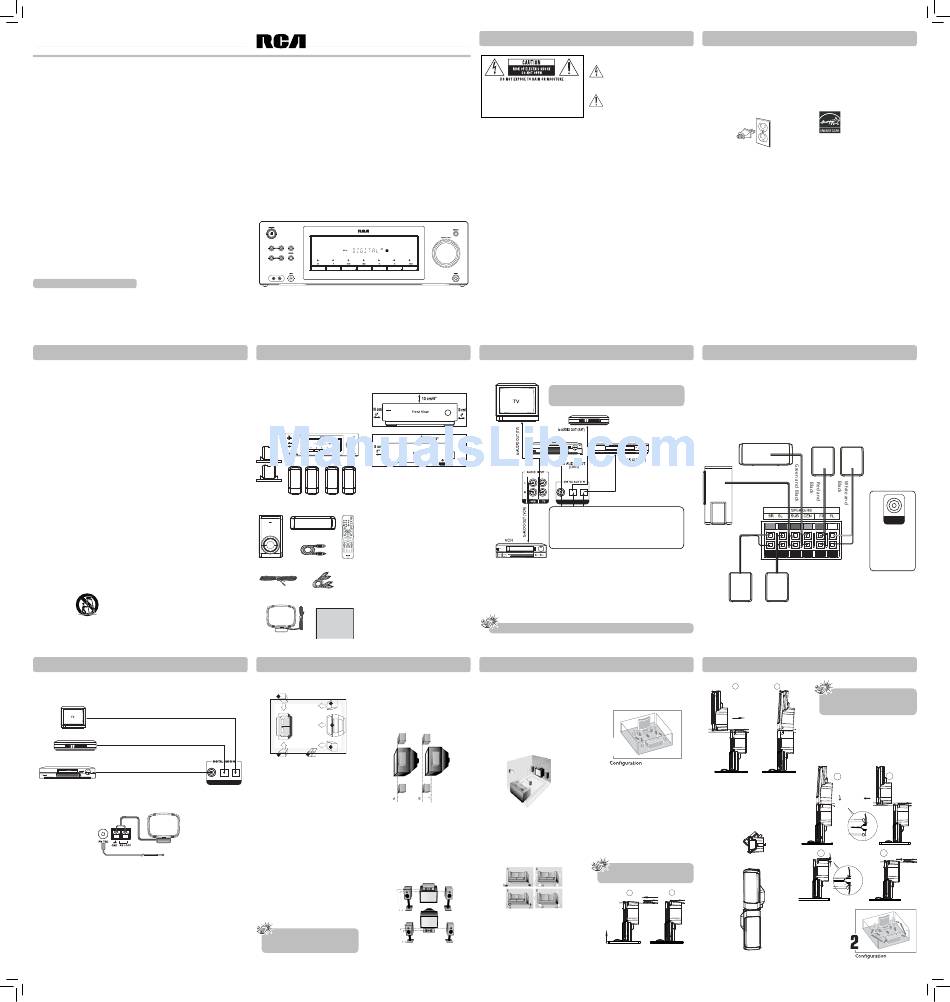

RCA RT2870R User Manual

EXPORTER
AVC Multimedia
www.RCAav.com
Printed in China
811-AV6291W073

Important Safety Instructions

Please read and save for future reference. • Unplug this apparatus during lightning storms
or when unused for long periods of time.
Some of the following information may not apply
• Refer all servicing to qualifi ed service personnel.
to your particular product; however, as with
Servicing is required when the apparatus has
any electronic product, precautions should be
been damaged in any way, such as the power
observed during handling and use.
cord or plug is damaged, liquid has been spilled
• Read these instructions.
or objects have fallen into the apparatus, the
• Keep these instructions.
apparatus has been exposed to rain or moisture,
• Heed all warnings.
does not operate normally, or has been
• Follow all instructions.
dropped.
• Do not use this apparatus near water.
Additional safety information
• Clean only with a dry cloth.
• Apparatus shall not be exposed to dripping or
• Do not block any ventilation openings. Install in
splashing and no objects fi lled with liquids, such
accordance with the manufacturer's instructions.
• Do not install near any heat sources such as vases, shall be placed on the apparatus.
as radiators, heat registers, stoves, or other • Always leave suffi cient space around the product
for ventilation. Do not place product in or on a bed,
apparatus (Including amplifiers) that produce
rug, in a bookcase or cabinet that may prevent air
heat.
fl ow through vent openings.
• Do not defeat the safety purpose of the
• Do not place lighted candles, cigarettes, cigars,
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the etc. on the product.
other. A grounding type plug has two blades • Connect power cord only to AC power source as
marked on the product.
and a third grounding prong. The wide blade or
• Care should be taken so that objects do not fall
the third prong is provided for your safety. If the
into the product.
provided plug does not fi t into your wall outlet,
• Do not attempt to disassemble the cabinet. This
consult an electrician for replacement of the
obsolete outlet. product does not contain customer serviceable
• Protect the power cord from being walked on components.
or pinched particularly at plugs, convenience
If your product operates on batteries, adhere to the
receptacles, and the point where they exit from
following precautions:
the apparatus.
• Only use attachments / accessories specifi ed by
A. Any battery may leak electrolyte if mixed with a
the manufacturer.
• Use only with a cart, stand, tripod, bracket, or diff erent battery type, inserted incorrectly, or if all
table specifi ed by the manufacturer, or sold with batteries are not replaced at the same time.
B. Any battery may leak electrolyte or explode if
the apparatus. When a cart is used, use caution
disposed of in fi re or an attempt is made to charge
when moving the cart / apparatus combination
a battery not intended to be recharged.
to avoid injury from tip-over.
C. Discard leaky batteries immediately. Leaking
batteries can cause skin burns or other personal
]
injury. When discarding batteries, be sure to
dispose of them in a proper manner, according
to your state/provincial and local regulations.
D. Battery shall not be exposed to excessive heat
Portable Cart
such as sunshine, fi re or the like.
Warning
- 3 -
Connections and Setup
Digital Connections
The digital audio jacks can accept Dolby Digital (Surround Sound) or PCM (Stereo) signals when compatible
components are connected.
BD/DVD/SAT/CAB/TV/GAME
Optical Digital In (Audio)
Connect to optical digital output of Cable box, Satellite receiver, DVD, Blu-ray player,
Cable box TV or other compatible devices using the Optical Fiber Cable (not included).
BD/DVD/SAT/CAB/TV/GAME
Coaxial Digital In (Audio)
Connect to coaxial digital output of DVD, Cable box, Satellite
DVD player
receiver, TV or other compatible devices using the Coaxial Digital
Cable (included).
BD/DVD/SAT/CAB/TV/GAME
COAXIAL OPTICAL1 OPTICAL2
DVD
Connecting the Antennas
Connect the AM and FM antennas to the AM and FM terminals on the system's back panel.
They must be hooked up in order to receive clear reception. For FM reception, extend antenna to its full
length. For AM reception, rotate the antenna horizontally to get better reception.
AM Loop Antenna and FM Indoor Antenna
1. Uncoil the antenna wire and locate the base end of the AM antenna.
2. Press down on the antennas tab to open the terminal.
3. Insert the antenna wires into the terminal and release the tabs to secure the wires in place.
4. Make sure the white wire on the AM loop antenna is inserted into the AM loop terminal and the other
wire is inserted into the ground loop terminal.
- 7 -
GAME
It's important to read this instruction prior to using your new product for the fi rst time.
Connections and Setup
• One main unit
Setup and Maintenance of the Unit
• One remote control with batteries
Provides spaces for suffi cient ventilation as
• One pair of front speakers, one pair of rear speakers,
indicated:
one center speaker and one subwoofer
• One pair of front speaker stands (for use in Front
Surround Sound Confi guration only)
• One pig-tail antenna wire
• One AM loop antenna
• One coaxial digital cable
• One pair of audio cable for analog connections
• One English & one Spanish user manuals
GAME
GAME
Main unit
• Do not connect to the AC power cords until all
connections are completed.
Front
• Do not use your set immediately after transferring
speaker
it from a cold place to a warm place: there is risk
stands
of condensation.
Left and right Left and right
• Do not expose your set to water and excessively
front speakers rear speakers
high temperatures.
• After having disconnected your set, clean the
case with a soft cloth, or with a slightly damp
leather chamois. Never using strong solvents.
Center speaker
Protect your Components from
Overheating
AM/FM GAME/LINE-IN BD
TV VCR DVD SAT/CAB • Do not block ventilation holes in any component.
SOURCE
Arrange the components so that air can circulate
Subwoofer Coaxial digital
Remote
freely.
cable
control with
• Do not stack components directly on top of each
batteries
other.
• Do not place the unit near other components
that generate heat such as heating vents.
Pig-tail
Audio cable for
• Allow adequate ventilation when placing your
antenna wire
analog connections
components in a stand.
• Place an amplifi er near the top shelf of the stand
User manual
so heated air rising from it will not aff ect other
components. If you have a satellite receiver, you
should place it on the top shelf.
AM loop antenna
- 4 -
Connections and Setup
Positioning Speakers Front Speaker Placement
For best results, follow the speaker placement
3
below.
1
Alignment
Align the center speaker evenly with (A) or slightly
behind (B) (the left and right speakers), but not
2 ahead of them.
1
4
3
Courtesy Dolby Laboratories
1. Left, Right (Front Speakers)
Front speakers carry primarily music and sound
SAT / CAB BD
eff ects.
2. Center
In surround mode, the center speaker carries most
of the dialog as well as music and eff ects.
Courtesy Dolby Laboratories
It should be set between the left and right
speakers.
Angle
3. Surround (Rear Speakers)
Place the left and right speakers to form a 45-
The surround speakers' overall sound balance
degree angle with your favorite viewing position
should be as close as possible to the front speakers.
to duplicate the soundtrack mixer's perspective.
Proper placement is vital to establish an evenly
distributed sound fi eld.
Height
4. Subwoofer
The three front speakers should be as close as
A subwoofer is designed to reproduce powerful
possible to the same height. This often requires
low bass eff ects (explosions, the rumble of
placing the center speaker directly on top (A) or
spaceships, etc.).
beneath (B) the TV set.
Magnetic Shielding
Speakers placed less than two feet from the TV set
A
must be magnetically shielded in order to prevent
picture distortion. Center speaker provided with
this unit is magnetically shielded to protect your
TV set.
B
Note: Place the rear speakers and
subwoofer a foot or more away from
TV when using the Front Surround sound
Eff ect (FSsE).
Courtesy Dolby Laboratories
- 8 -
FCC Information
User Manual
RT2870R
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio / TV technician for help.
WARNING: Changes or modifi cations to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment
Regulations.
The Shock Hazard Marking and Associated Graphical Symbol is provided on the bottom panel of unit.
GAME
Refer to the identification / rating label located on the back panel of your product for its proper
operating voltage.
IMPORTANT: The power cord can be unplugged to turn off the main power to the unit. It should also be
easily accessible in an emergency.
• Leave suffi cient space around the appliance to allow adequate ventilation: 10cm on either side and
at the back, as well as 7cm above it are ideal.
WARNING: To reduce the risk of fi re or electric shock, do not expose this apparatus to rain or moisture.
- 1 -
Connections and Setup
Connecting to Audio Components
Note: If your TV has digital audio output, you can connect it
to one the unit's digital audio inputs, instead of using analog
connection.
SAT
I I I I
COAXIAL OPTICAL1 OPTICAL2
DVD SAT / CAB BD
Digital Input
Connect components, such as DVD players, Satellite receiver/
Cable boxes, BD (Blu-ray Disc
outputting Dolby Digital (Surround Sound) or standard PCM
(Stereo) format digital signals.
Note: "Blu-ray Disc" is a trademark of Blu-ray Disc Association.
Digital Connection
• This unit provides two optical and one coaxial digital input jacks for the connection of your
components that have digital audio outputs.
• To connect DVD player, Satellite receiver, Cable box, Blu-ray Player, or TV that has a digital audio
output, use a coaxial digital (included) or an optical digital cable (not included) to carry the audio
signal and enjoy Dolby Digital sound quality.
• A separate optical or coaxial cable is needed for each digital connection.
Note: Optical and coaxial cables carry only the audio portion of the signal.
- 5 -
Connections and Setup
Better Surround Placement
Location
If possible, place surround speakers to either side of
the listening area, not behind it.
Height
If space permits, install surround speakers 2-3 feet
above viewers. This helps to minimize localization
eff ects.
Aiming
Aim surround speakers straight across the room,
not down at viewers, to help create a more open,
spacious surround sound fi eld.
Courtesy Dolby Laboratories
Alternative Surround Placement
Rear wall
If rear wall mounting is the only choice, aim the
speakers at each other (A), towards the front (B) or
towards the sidewalls (C, D).
Experiment with placement until sounds seem to
surround you, rather than come from behind you.
Courtesy Dolby Laboratories
No adjacent walls
Surround speakers can go on stands facing each
other to approximate sidewall mounting (A), or to
the sides or rear of the viewing area, aimed upwards;
they can go right on the fl oor, or preferably, a few
feet off the fl oor such as on end tables (B).
- 9 -
FCC Information
For Your Safety
THE LIGHTNING FLASH AND ARROWHEAD
The AC power plug is polarized (one blade is
WITHIN THE TRIANGLE IS A WARNING
wider than the other) and only fi ts into AC power
SIGN ALERTING YOU OF "DANGEROUS
outlets one way. If the plug won't go into the outlet
VOLTAGE" INSIDE THE PRODUCT.
completely, turn the plug over and try to insert it
the other way.
THE EXCLAMATION POINT WITHIN THE
If it still won't fi t, contact a qualifi ed electrician to
TRIANGLE IS A WARNING SIGN ALERTING
change the outlet, or use a diff erent one. Do not
YOU OF IMPORTANT INSTRUCTIONS
attempt to bypass this safety feature.
ACCOMPANYING THE PRODUCT.
CAUTION:
• To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
• Main plug is used as disconnect device and it
should remain readily operable during intended
use. In order to disconnect the apparatus from
the mains completely, the mains plug should
be disconnected from the mains socket outlet
completely.
Service Information
This product should be serviced only by those
specially trained in appropriate
techniques. For instructions on how to obtain
service, refer to the warranty included in this user
manual.
Connecting for Power
Make sure you connect all your other electronic
components and the speakers before plugging
your unit into the outlet. Plug the power cord in the
wall outlet, matching the wide blade of the plug
with the wide slot in the outlet. Be sure to insert
the plug completely.
Connections and Setup
Connecting the speakers
Speaker wires are color-coded to match the terminals. Connect the speaker wire from the back of each
speaker to the corresponding color terminal at the back of the unit. Press down the tab to open the
terminal and insert the wire. Release the tab to lock wire in the terminal.
When connecting the speakers, make sure the polarities ("+" speaker wire to "+" on the unit. For example, red
wire to red terminal on the unit) of speaker wires and terminals match.
If the cords are reversed, the sound will be distorted. Do not let the speaker wires touch each other, it will
damage the Home Theater's amplifi er.
BD
Center Speaker
BD
Subwoofer
Purple and Black
TM ) Players or TV's, capable of
Grey and Black
Right
Rear Speakers
(Surround Sound)
Connections and Setup
Front Surround Mode Speaker Placement
3
Confi guration 1
Follow the suggestion for speaker placement in the
Rear
section before.
Speaker
1
Front
1 Speaker
Confi guration 2
If placing the rear speakers (surround speakers) at
Adjust the Angle of the Speakers
the back is not a good choice for you, you can use
the Front Surround sound Eff ect (FSsE). Follow the To achieve the best Front Surround sound Eff ect
following instruction for setting the speakers. (FSsE), adjust the mounted front left and the rear
left speakers to the left for an angle of 25
Mounting the Speakers
from the center.
- Place the front speaker upside down and attach
Adjust the mounted front right and rear right
the supplied speaker stands to the top of the
speakers to the right in the same way.
front speakers.
- Slide in the hinge to the bottom of the front
speaker until the 'click' sound is heard.
Front
- Slide in the rear speaker to the hinge until the
Speaker
'click' sound is heard.
Rear
Speaker
Note: Match the front left and rear left
speakers together and match the front
right and rear right speakers together.
Rear
1 Hinge 2
Speaker
Bottom
Front
Speaker
Front
Speaker
Top
Speakers stand
Technical Specifi cation
Product: Audio Receiver with Dolby Digital
Brand : RCA
Electrical Consumption
Power Supply: 120V ~ 60Hz
Power Consumption: 90 Watts
This Home Theater has earned
the ENERGY STAR.
Headset Safety
• Do not play your headset at a high volume.
Hearing experts warn against extended high-
volume play.
• If you experience a ringing in your ears, reduce
volume or discontinu use.
• You should use extreme caution or temporarily
discontinue use in potentially hazardous
situations.
• Even if your headset is an open-air type
designed to let you hear outside sounds,
don't turn up the volume so high that you are
unable to hear what is around you.
• Excessive sound pressure from earphones and
headphone can cause hearing loss.
servicing
- 2 -
Front Speakers
Right Left
SUBWOOFER
AUDIO OUT
Use this jack on
the rear panel
to connect an
active subwoofer
other than the
one supplied.
Blue and Black
Left
- 6 -
4
Note:
Place the rear speakers and subwoofer a
foot or more away from TV when using
the Front Surround sound Eff ect (FSsE).
Disconnecting the Speakers
1. To unlock the speakers, press and hold the
hinge spring as illustrated below.
2. Slide out the rear speaker from the hinge.
3. Press and hold the two hinge springs.
4. Slide out the hinge from the front speaker.
1 2
o - 45 o
Hinge Spring
Press
and
hold
3 4
Hinge Spring
Press
and
hold
After adjusting the
angle, the speaker
should look like this
illustration.
2
- 10 -
