Extron electronics VLP 202 Setting Up

This guide provides instructions for an experienced installer to set up, install, and
connect the Extron VLP 202 VoiceLift Compact Pendant Microphone or VLH 102 VoiceLift
Handheld Microphone, the VLC 202 Charging Station and the VLR 102 Receiver in a system
with a PVS 405D PoleVault Digital Switcher.

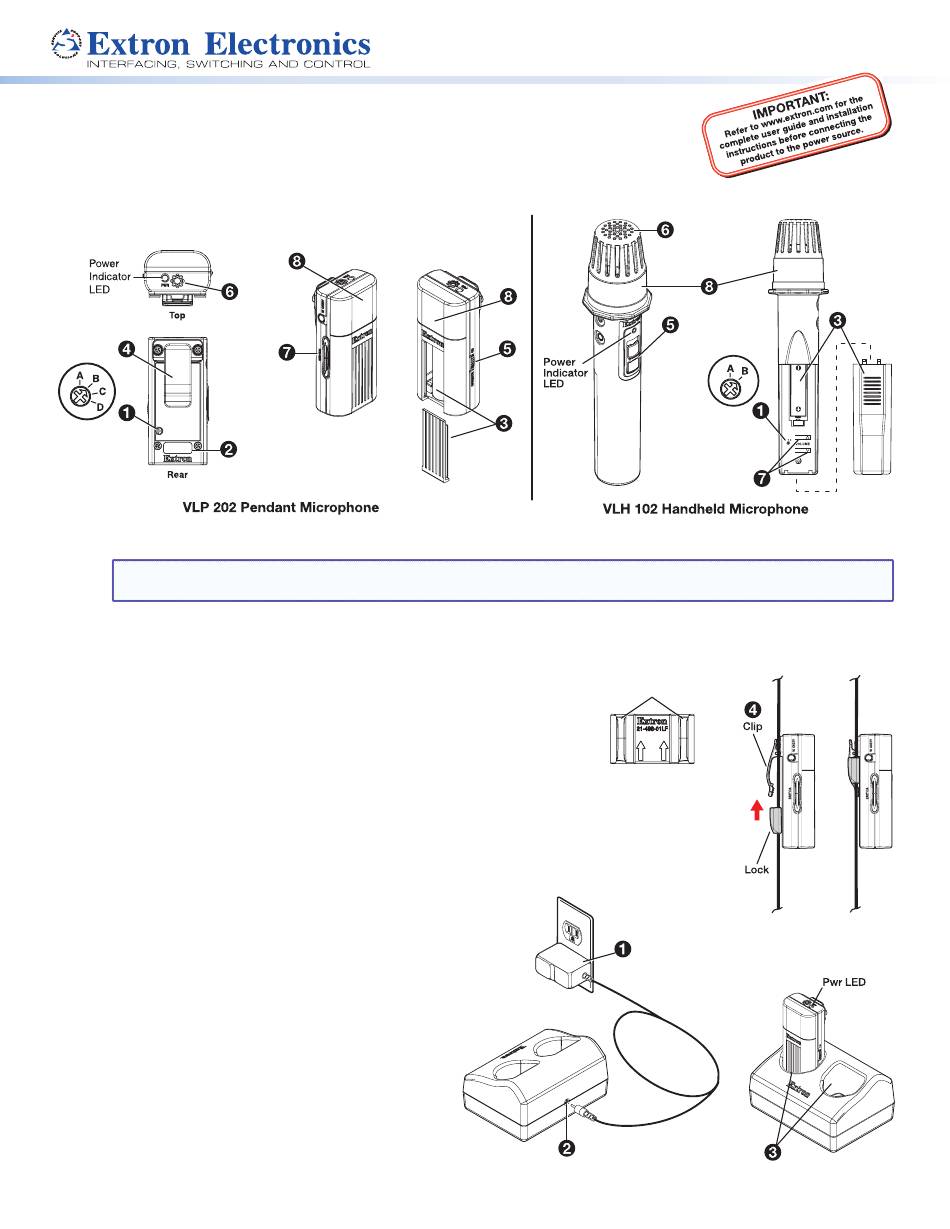

Setting Up the VLP 202 and VLH 102 Microphones
Set the channel using the rotary switch. A and C = 2.3 MHz; B and D = 2.8 MHz. For the VLH 102, remove the battery cover
1.
to access this switch.
NOTE:
Each microphone must be on a different frequency. On the pendant microphone, set the channel to C or D to
disable the volume buttons (the handheld microphone has only channels A and B, and its volume cannot be disabled).
For pendant microphones only, apply the appropriate sticker (provided) to identify the microphone.
2.
Remove the battery cover and insert a AA battery. If necessary, replace the battery cover and
3.
charge the rechargeable battery (see "Installing the VLC 202 Charging Station," below).
For pendant microphones only, attach the lanyard to the microphone as follows:
4.
Press the lanyard into the guides on the sides of the lanyard clip
a.
(see the VoiceLift System with PVS 405D Installation Guide for details).
Press the top of the microphone clip to lift it.
b.
Slide the lanyard lock under the clip and release the clip (see the illustration at right).
c.
Place the lanyard around your neck and slide the lanyard through the lock until the microphone
d.
is positioned approximately 4 inches (10.2 cm) below your chin.
Turn the microphone on by sliding the power switch up.
5.
Speak in a normal tone of voice. Do not block the microphone port or grille opening.
6.
Adjust the volume if necessary.
7.
Ensure that a direct line of sight exists from the
8.
microphone to the receiver (required for proper
operation). Do not block the IR transmitter window.
Installing the VLC 202 Charging Station
To install the charging station (see the illustration at right):
Plug the wall charger (5 V, 1 A) into a wall outlet.
1.
Connect the wall charger cable to the charging station
2.
power jack.
Place the microphone in one of the slots in the charger.
3.
The charge is complete when the microphone LED
turns green (this can take up to 5 hours).
