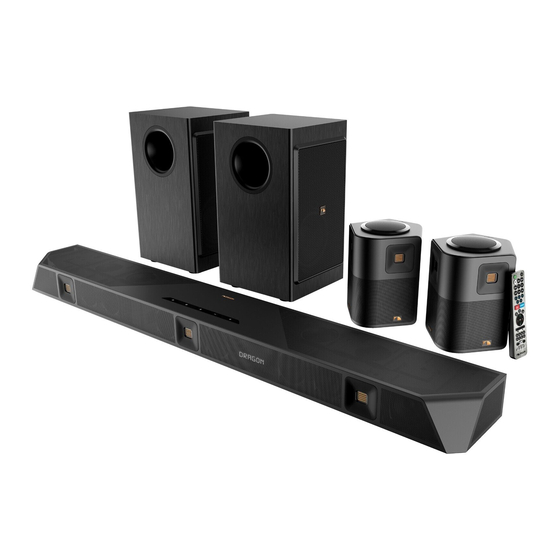

Nakamichi DRAGON 11.4.6 Quick Start Manual

Watch set-up video here:
11.4.6
bit.ly/dragon-unboxing-setup
Quick Start Guide
1 Get Best Performance: Establish a Fresh HDMI Connection Between
Disconnect ALL HDMI cables connected to and
Leave devices unplugged from power for 5 minutes
TV
2 Power up DRAGON
Press
Auto On / Off
Omni-Motion Reference Surrounds
Toggle
Quad Subwoofers
Subwoofers turn off automatically when main unit is shut down.
3
Connect DRAGON to TV
Connect DRAGON to TV via HDMI ARC/eARC ports
using the Nakamichi HDMI 2.1 cable (included)
and
4 Connect Source Devices
Connect to DRAGON: Gaming consoles, streaming devices or blu-ray players
Connect to TV: Satellite and cable TV boxes
Streaming Game Blu-ray
Devices Consoles Player
Streaming
Gaming
Blu-ray
Player
Top of Main Unit
5
Enjoy an Authentic 3D Home Cinema Experience
Rotate the PerfectHeight mechanism on the top of each surround speaker. Point line towards the
center of your listening area.
Bottom of Main Unit
ARC / EARC
Side/Back
of TV
Side of Main Unit
Satellite
TV
TV Box
Cable TV
Box
Remote Guide
On / Off DRAGON
TV
HDMI 2 HDMI 3
HDMI 4 OPT
USB
OUTPUT AUX
All Channel Stereo
Recommended for stereo content
(YouTube, Music, Spotify). Enhance
soundstage by utilizing all speakers
in system.
ALL CH
SURROUND
STEREO
INFO
HOME RETURN
SUB
Personalize DRAGON
ENTER
On Screen Display (OSD) SUB
HOME
Press . Use navigation
( ) buttons to configure
settings. Use to exit OSD.
BASS VOL
SURROUND SPEAKERS
CR TR SS
SB
Personalize your Sound
CR TR SS
CR TR SS SB
CR: Center Volume
FAVORITE SETTINGS
TR: Treble
1 2
SS/SB: Surround (Rear) Side /
Back Volume
ADAPTIVE HEIGHT DISPERSION
FH RH FH FH RH RH
FR/RH: Front and Rear Height
Volume
AHD: Nakamichi exclusive height
processing
Orange denotes default settings. Default surround mode for HDMI: Dolby Surround.
Default for Bluetooth: All Channel Stereo. Default EQ: Movie 2 / Music 1
* To learn more about other settings, go to "Chapter 4: Control" section of the manual.
TV
HDMI 2 HDMI 3
Input
Press "TV" when watching TV or devices
connected to TV.
Press "HDMI 2 / 3 / 4 / Optical / Aux / BT"
for other sources.
Surround Modes: For true 360° sound
SURROUND: For all Dolby
(incl. Atmos) and LPCM 5.1/7.1 content.
NEURAL:X: For all DTS content.
DTS:X content will be rendered as DTS:X
PRO.
STUDIO: Side surround speakers in the
main unit are repurposed as left and right
channels, enhancing front soundstage
while applying the same channel
upmixing fundamentals as above.
Equalizer
Optimize DRAGON's playback
based on content type.
Favorite Settings
FAVORITE SETTINGS
1 2
To save: Press and hold "1" or "2"
until "FAV1 SAVED / FAV2 SAVED"
appears.
