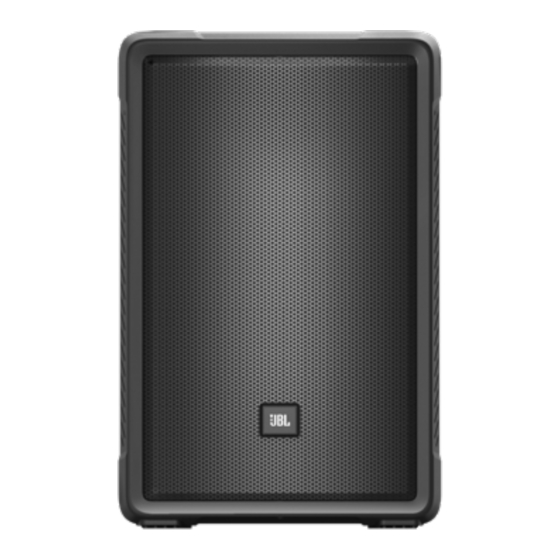

Harman JBL IRX112-BT User Manual
Hide thumbs
Also See for JBL IRX112-BT:
- User manual (13 pages) ,
- User manual (27 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Harman JBL IRX112-BT
Summary of Contents for Harman JBL IRX112-BT

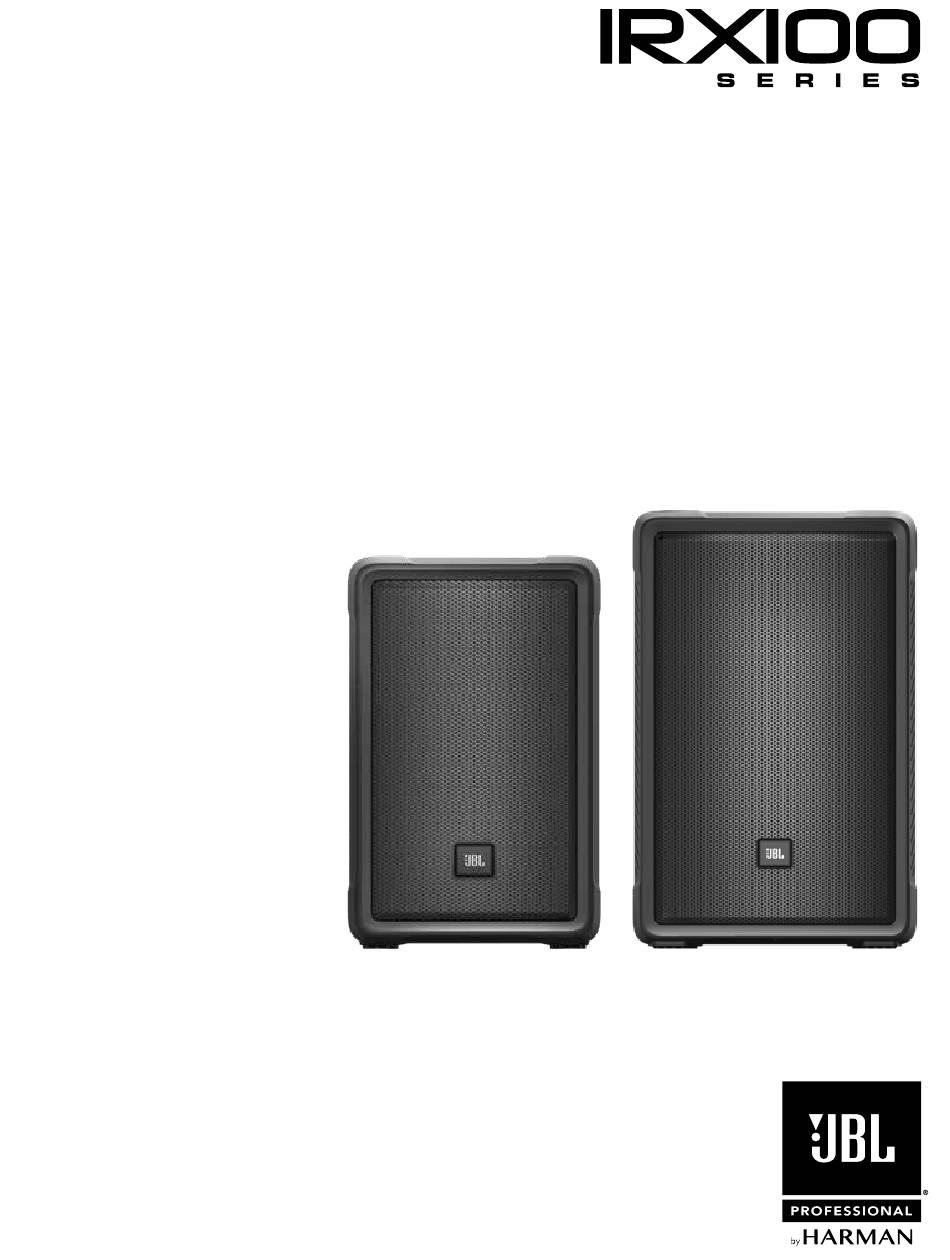

- Page 1 User’s Guide IRX108-BT IRX112-BT...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions ..........................3 Declaration of Conformity ......................... 6 Quick Setup Guide ..........................7 Back Panel .............................. 9 Overview - IRX100 Series Family ......................10 IRX108/112BT - Block Diagram ......................11 IRX108BT Specifications ........................12 IRX112BT Specifications ........................13 Applications / Features ........................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The IRX100 Series covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. Keep speakers out of extended or intense direct sunlight. - Page 4 SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electrical shock, do not READ these instructions. KEEP these instructions. expose this apparatus to rain or moisture. WARNING: No naked flame sources – such as lighted candles – HEED all warnings. FOLLOW all instructions.
- Page 5 Cet transmetteur ne doit pas etre cositue ou operant en liaison avec toute autre antenne ou transmetteur. EU COMPLIANCE INFORMATION: Hereby, HARMAN Professional, Inc., declares that the equipment type IRX100 Series is in compliance to the following: European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU;...
-
Page 6: Declaration Of Conformity
DECLARATION OF CONFORMITY EN 60065:2014 8th Ed. Audio, video and similar electronic apparatus – Safety requirements EN 62368-1:2014+A11:2017 Audio/video, information and communication technology equipment - Part 1: Safety requirements EN 301489-1 V2.1.1 Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements;... -
Page 7: Quick Setup Guide
QUICK SETUP GUIDE Congratulations on your purchase of JBL Professional IRX100 Series loudspeakers! We know you are anxious to get up and running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible. Packaging Contents Your IRX100 system should include the following: 1 x IRX100 speaker... - Page 8 QUICK SETUP GUIDE Automatic Feedback EQ Preset Supression LED Indicators Music Ducking POWER EQ Preset Selection Power Standby Button Bass Boost Bluetooth ® CH1 & CH2 Gain Master Volume XLR Male Loop Thru XLR-1/4” Combo Inputs Power Receptacle POWER IT ON SET UP THE CHANNELS Select a Preset using the EQ Preset Selection Button (B).
-
Page 9: Back Panel
BACK PANEL A. EQ Preset Selection Button J. Master Volume Use this button to toggle through the four different settings. Controls the master volume of the unit. By turning the knob counter- clockwise you will be lowering the overall volume of the speaker. By B. -
Page 10: Overview - Irx100 Series Family
OVERVIEW - IRX100 SERIES FAMILY IRX108-BT IRX112-BT Powered 8” Portable Powered 12” Portable Speaker with Bluetooth® Speaker with Bluetooth® • 1300 Watt • 1300 Watt • 17.4 lb (7.9 kg) • 27.3 lb (12.4 kg) • 90º (horizontal) x 60º •... -
Page 11: Irx108/112Bt - Block Diagram
IRX108/112BT - BLOCK DIAGRAM... -
Page 12: Irx108Bt Specifications
IRX108BT SPECIFICATIONS TECHNICAL SPECIFICATIONS SYSTEM TYPE: Powered 8” two-way CABINET: Polypropylene with full grille SENSITIVITY (SPL): 124 dB peak FREQUENCY RESPONSE (±3 dB): 54 Hz – 20 kHz POWER RATING: 1300 watts peak INPUT IMPEDANCE: 10k ohm balanced COVERAGE PATTERN: 90º... -
Page 13: Irx112Bt Specifications
IRX112BT SPECIFICATIONS TECHNICAL SPECIFICATIONS SYSTEM TYPE: Powered 12” two-way CABINET: Polypropylene with full grille SENSITIVITY (SPL): 127 dB peak FREQUENCY RESPONSE (±3 dB): 53 Hz – 20 kHz POWER RATING: 1300 watts peak INPUT IMPEDANCE: 10k ohm balanced COVERAGE PATTERN: 90º... -
Page 14: Applications / Features
APPLICATIONS / FEATURES MUSICIANS/PERFORMERS Musicians and performers looking for a great-sounding, easy-to-use sound reinforcement speaker in a portable, affordable package. PRESENTERS/INSTRUCTORS Mobile presenters and fitness instructors looking for an easy-to-use, compact PA solution with Bluetooth audio and built-in music ducking. HOSPITALITY/GOVERNMENT INSTALLATIONS Hospitality/government installations requiring professional sound quality with ease of use and minimal setup time. -
Page 15: Music Ducking / Automatic Feedback Suppression
MUSIC DUCKING / AUTOMATIC FEEDBACK SUPPRESSION Music Ducking Soundcraft®-designed ducking automatically attenuates music when speech is detected. • Press the “Music Ducking button.” • Plug a microphone into the desired Channel output. • Pair a BT device to the speaker. •... -
Page 16: Bluetooth Integration
BLUETOOTH INTEGRATION Streaming Bluetooth Audio To pair a device to a single IRX speaker: • Press the Bluetooth button for 2s until the light blinks slowly. • Navigate to the Bluetooth settings of your device. • Select the IRX speaker you wish to stream to. •... - Page 17 BLUETOOTH INTEGRATION Link the Left speaker to the Right speaker • On the Right speaker, press and hold the Bluetooth button until both the Power LED and the Bluetooth LED blink. An audio cue will be heard. • Repeat the process on the Left speaker. •...
- Page 18 BLUETOOTH INTEGRATION The final link • Link the Left speaker to your device by shortly pressing the Bluetooth button, the light should flash. • On your device, find the speaker under available Bluetooth devices and pair to it. • Done! You now have true stereo sound. Note: On your device under Bluetooth you will see both speakers: •...
-
Page 19: Loudspeaker Placement And Suspension
LOUDSPEAKER PLACEMENT AND SUSPENSION Stacking Floor Monitor Floor Standing Tripod Stand Pole Mount The following guidelines will help you achieve optimum sound wherever you use your IRX100 Series ® loudspeakers: Raise the speakers as high as possible. For best results try to get the high frequency horn at least 2 to 4 feet above the heads of the audience. If the speakers are too low, the people in the back of the audience will not receive the best quality sound. -
Page 20: Cables & Connectors
CABLES & CONNECTORS The standard cable for interconnection of microphone and XLR/F to XLR/M Microphone Cable line level signal in professional audio systems. • Microphone to mixer For connecting balanced devices with 1/4 inch phone and TRS (balanced) 1/4 inch phone jack to XLR/M maybe used interchangeably. -
Page 21: Application Examples
APPLICATION EXAMPLES SMALL PA USING BOTH INPUTS AND THRU FUNCTION CH1 input set to “Mic” CH2 input set to “Line” Main Speaker Position... - Page 22 APPLICATION EXAMPLES SMALL PA USING TWO SYSTEMS AS MONITORS CH1 input set to “Mic” CH2 input set to “Line” Monitor Speaker Position...
-
Page 23: Troubleshooting
TROUBLESHOOTING Symptom Likely Cause What to do Speaker not connected Verify that speaker is connected and that the circuit is on to active AC power No sound Power not switched on Switch on power and verify that power LED is on Speaker in bypass mode Twist any knob or press the bypass button to wake the speaker. -
Page 24: Warranty Information
WARRANTY INFORMATION The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase. -
Page 25: Contact Information
CONTACT INFORMATION Mailing Address: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd., Dock 1 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am –... - Page 26 11/20 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com...
