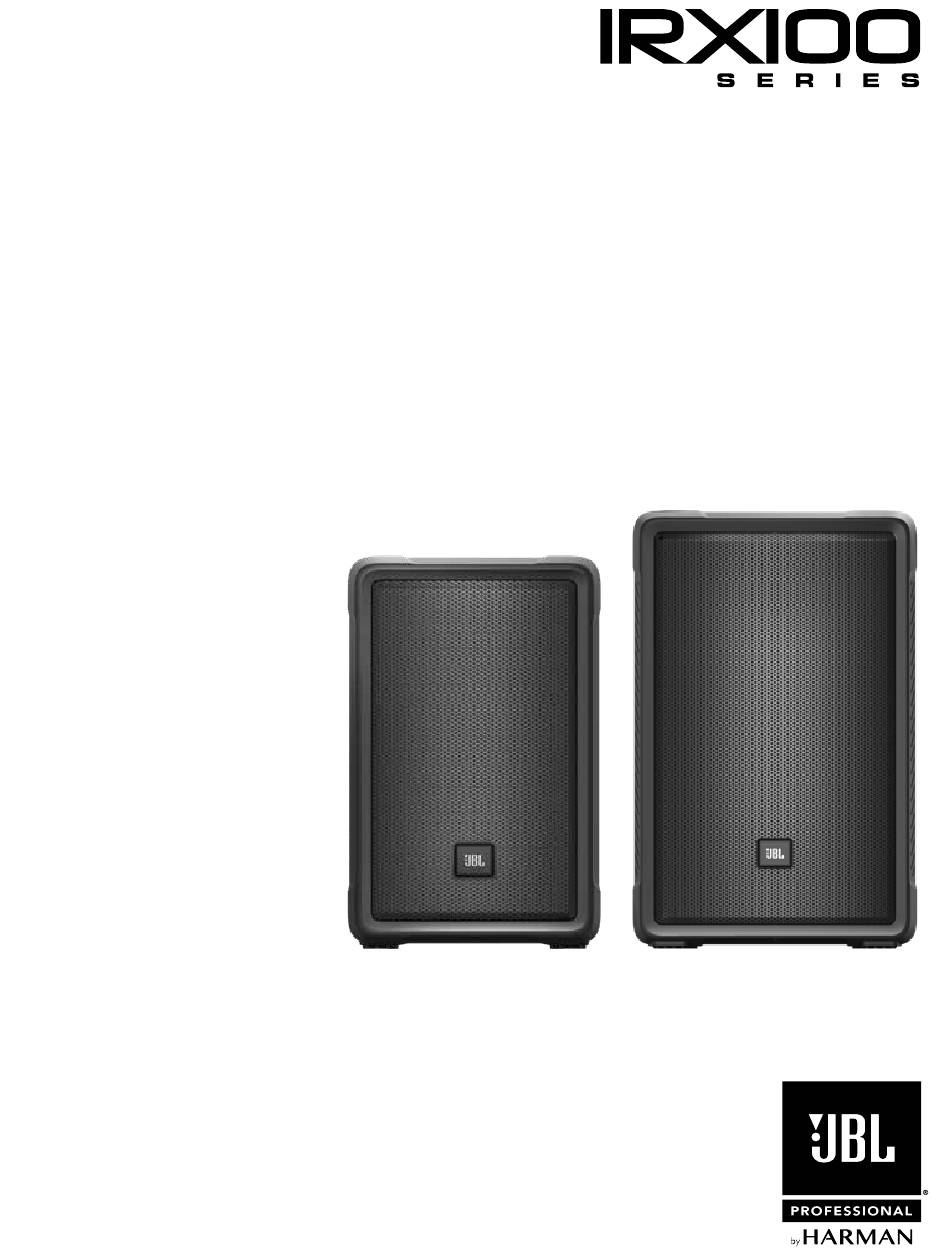

- Page 1 User’s Guide IRX108-BT IRX112-BT...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........................3 The IRX100 Series covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers Declaration of Conformity ......................... -
Page 3: Safety Instructions
The exclamation point, within an equilateral triangle, is equipment generates uses and can radiate radio frequency energy Hereby, HARMAN Professional, Inc., declares that the equipment type intended to alert the user to the presence of important and, if not installed and used in accordance with the instructions,... -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY QUICK SETUP GUIDE EN 60065:2014 8th Ed. Congratulations on your purchase of JBL Professional IRX100 Series loudspeakers! We know you are anxious to get up and Audio, video and similar electronic apparatus – Safety requirements running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible. EN 62368-1:2014+A11:2017 Audio/video, information and communication technology equipment - Part 1: Safety requirements Packaging Contents... -
Page 5: Back Panel
QUICK SETUP GUIDE BACK PANEL Automatic Feedback A. EQ Preset Selection Button J. Master Volume EQ Preset Supression Use this button to toggle through the four different settings. Controls the master volume of the unit. By turning the knob counter- LED Indicators Music Ducking clockwise you will be lowering the overall volume of the speaker. -
Page 6: Overview - Irx100 Series Family
(vertical) nominal (vertical) nominal Thank you for purchasing the new JBL IRX100 Series! More than just another great JBL sound system, the new IRX100 Series is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the IRX100 Series from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers. -
Page 7: Irx108Bt Specifications
IRX108BT SPECIFICATIONS IRX112BT SPECIFICATIONS TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS SYSTEM TYPE: Powered 8” two-way SYSTEM TYPE: Powered 12” two-way CABINET: Polypropylene with full grille CABINET: Polypropylene with full grille SENSITIVITY (SPL): 124 dB peak SENSITIVITY (SPL): 127 dB peak FREQUENCY RESPONSE (±3 dB): 54 Hz –... -
Page 8: Applications / Features
MUSIC DUCKING / AUTOMATIC FEEDBACK SUPPRESSION APPLICATIONS / FEATURES MUSICIANS/PERFORMERS Music Ducking Musicians and performers looking for a great-sounding, easy-to-use sound reinforcement speaker in a portable, affordable Soundcraft®-designed ducking automatically attenuates music when speech is detected. package. • Press the “Music Ducking button” PRESENTERS/INSTRUCTORS •... -
Page 9: Bluetooth Integration
LOUDSPEAKER PLACEMENT AND SUSPENSION BLUETOOTH INTEGRATION Bluetooth operation of IRX To pair a device to a single speaker: • Press the Bluetooth button for 2s until the light blinks slowly • Navigate to the Bluetooth settings of your device. • Select the IRX speaker you wish to stream to •... -
Page 10: Cables & Connectors
APPLICATION EXAMPLES CABLES & CONNECTORS The standard cable for interconnection of microphone and XLR/F to XLR/M Microphone Cable line level signal in professional audio systems. • Microphone to mixer For connecting balanced devices with 1/4 inch phone and TRS (balanced) 1/4 inch phone jack to XLR/M maybe used interchangeably. -
Page 11: Trouble Shooting
APPLICATION EXAMPLES TROUBLE SHOOTING Symptom Likely Cause What to do Speaker not connected Verify that speaker is connected and that the circuit is on to active AC power No sound Power not switched on Switch on power and verify that power LED is on Speaker in bypass mode Twist any knob or press the bypass button to wake the speaker. -
Page 12: Warranty Information
WARRANTY INFORMATION CONTACT INFORMATION The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from thedate of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase. - Page 13 01/20 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com...
