Sennheiser evolution e 845 Instruction Manual

Stage microphones
Hide thumbs Also See for evolution e 845:
Table of Contents

Advertisement

Quick Links

Download this manual
Stage Microphones
Stage Microphones
e 845
Instruction manual
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Sennheiser evolution e 845

Summary of Contents for Sennheiser evolution e 845

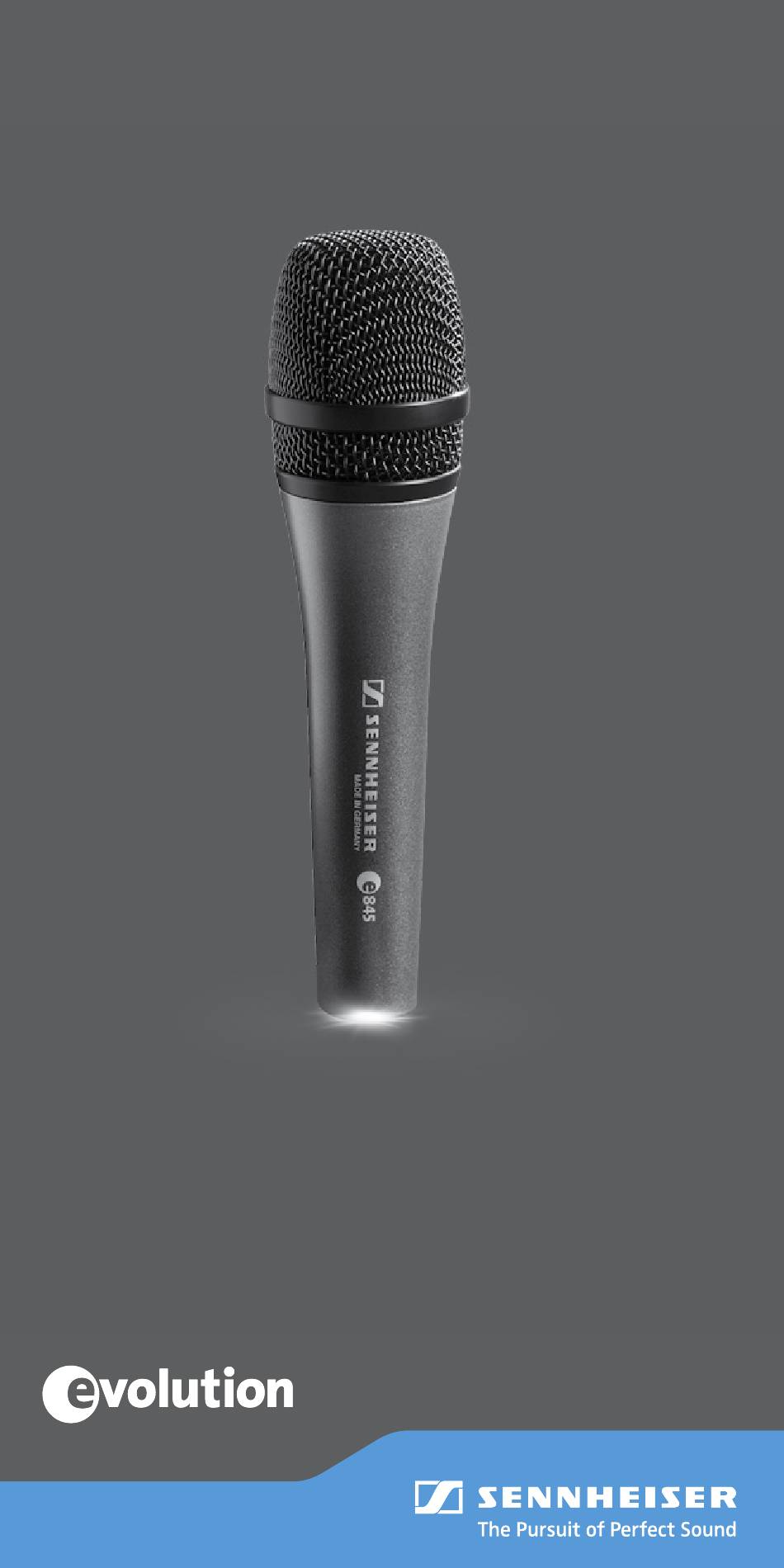

  • Page 1 e 845 Instruction manual Instruction manual Stage Microphones Stage Microphones...
  • Page 2 · ³ ¿ » e 845 e 845 S 5-10 cm >10 cm...
  • Page 3 0° 0° 30° 30° 125 Hz 60° 60° 250 Hz 500 Hz 1,000 Hz 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m...
  • Page 4 • Only use attachments, accessories or spare parts specified by Sennheiser. During operation • Liquids entering the product can short-circuit the electronics or damage the mechanics. Keep all liquids away from the product.
  • Page 5 The e 845 The e 845 is a high-performance lead vocal microphone, specially designed for rough stage use. Due to its extended high-frequency response and super-cardioid pick-up pattern, the e 845 ensures vocal projection through high on-stage sound levels. The microphone has a smooth, warm tonal response and full dynamic range.
  • Page 6 Using the microphone Switching the e 845 S on/off Use the on/off switch to switch the the e 845 S on or off. If necessary, use the screw to lock the on/off switch in the “on” position. Positioning the microphone Pos.
  • Page 7 Specifications Transducer principle dynamic Frequency response 40 … 16,000 Hz Pick-up pattern super-cardioid Sensitivity (free field, no load at 1 kHz) 1.8 mV/Pa approx. 350 Ω Nominal impedance (at 1 kHz) Min. terminating impedance 1 kΩ Connector XLR-3 Temperature range 0°C to +40°C Dimensions Ø...
  • Page 8 Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law.
  • Page 11 S S ennheiser electronic GmbH & Co. K ennheiser electronic GmbH & Co. KG G A A m Labor 1, 30900 W m Labor 1, 30900 Wedemark, Germany edemark, Germany w w ww.sennheiser.com ww.sennheiser.com Publ. 08/15, 511656/A02...
  • Page 12 WMS 450 BEDIENUNGSANLEITUNG (V 1.10) S. 2 Bitte vor Inbetriebnahme des Gerätes lesen! USER MANUAL (V 1.10) p. 18 Please read the manual before using the equipment! MODE D’EMPLOI (V 1.10) p. 34 Veuillez lire cette notice avant d’utiliser le système! ISTRUZIONI PER L’USO (V 1.10) p.
  • Page 13 WMS 450 SR 450 Fig. 1 Fig. 2 Fig. 8 Fig. 9 AKG WMS 450 V 1.10 Downloaded from www.Manualslib.com manuals search engine...
  • Page 14 WMS 450 PT 450 Fig. 4 Fig. 12 Fig. 5 / PT 450 AKG WMS 450 V 1.10 Downloaded from www.Manualslib.com manuals search engine...

  • Page 15: Fig. 3

    WMS 450 HT 450 Fig. 3 Fig. 5 / HT 450 AKG WMS 450 V 1.10 Downloaded from www.Manualslib.com manuals search engine...
  • Page 16 Fig. 6 Fig. 7 AKG WMS 450 V 1.10 Downloaded from www.Manualslib.com manuals search engine...
  • Page 17 Fig. 10 Fig. 11 ≈10 cm ≈10 cm Fig. 13 Fig.14 Fig. 15 Fig. 16 Fig. 17 AKG WMS 450 V 1.10 Downloaded from www.Manualslib.com manuals search engine...
  • Page 18 AKG WMS 450 V 1.10 Downloaded from www.Manualslib.com manuals search engine...

  • Page 19: Table Of Contents

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Parts 74 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 20: Akg Wms 450

    1 Safety and environment 1. Do not spill any liquids on the equipment and do not drop any objects through the ventilation slots in 1.1 Safety the equipment. 2. The equipment may be used in dry rooms only. 3. The equipment may be opened, serviced, and repaired by authorized personnel only. The equipment contains no user-serviceable parts.

  • Page 21: Optional Accessories

    2 Description 2.3 Optional Accessories • PPC 1000 • CU 400 • PSU 4000 charger central power Polar Pattern supply converter for HT 450/C • SRA 2 W, SRA 2 • MK PS anten- • W 3004 wind- B/W (shown), na cable screen for HT 450...

  • Page 22: Ht 450 Handheld Transmitter

    2 Description 5 RF LEDs: The green OK LED is lit to indicate the receiver is receiving RF signal, the red MUTE LED indicates that no signal is being received. 6 A and B diversity LEDs: These two LEDs are lit to indicate which of the two antennas is currently active.

  • Page 23: Setting Up

    3 Setting Up Important! Prior to setting up your WMS 450, check that the transmitter and receiver are tuned to the same frequency, referring to sections 3.8 and 3.9. 3.1 Inserting the 1. Open the battery compartment cover (1). Transmitter Battery 2.

  • Page 24: Lock Mode

    3 Setting Up If power to the transmitter is OFF or the RF level at the antennas is zero for some other reason (e.g., shadow effects), the red RF MUTE LED will be lit and the audio output will be muted. If the antennas receive RF signal, the green RF OK LED will be lit, the RF bargraph will indicate the field strength of the signal received by the active antenna, and the Diversity LEDs will indicate which antenna is currently active.

  • Page 25: Setting The Frequency Group (Auto Group Setup)

    3 Setting Up 3.8.1 Selecting Frequency to select the number of AUTO Groups (Auto Group Setup) GROUP required channels between "1" (mini- mum) for a single-channel system and "12" (maximum) for a 12-channel system. No CH >1< to select the desired Preset.

  • Page 26: Editing The Receiver Name

    3 Setting Up This screen lets you edit the current 3.8.4 Editing the Receiver NAME Name name of the receiver. If you have stored "DIANE" no name for the receiver yet or deleted Note: its previous name, this screen will not be available.

  • Page 27: Bodypack Transmitter: Connecting A Microphone/Instrument And Setting Input Gain

    3 Setting Up 3.9.3 Bodypack Transmitter: The PT 450 bodypack transmitter has been designed primarily for use with "L" type MicroMic Series Connecting a microphones from AKG (see section 2.7). If you wish to connect other microphones from AKG or other Microphone/Instrument and manufacturers to the PT 450, please note that you may have to rewire the existing connector of your Setting Input Gain...

  • Page 28: Setting The Squelch Threshold

    3 Setting Up • To retrieve the other results press briefly. Dropouts are indicated like this (Example 1): Example 1: Dropout no. 1 occurred after 124 seconds. • The first storage locations are assigned to dropouts, the last two for the lowest RF level and highest audio level measured (Examples 2 and 3).

  • Page 29: Operating Notes

    3 Setting Up AUTO CHANNEL >NAME< 4. Use to select the name of ">AT<" the desired Preset. >GROUP< 5. Use to select the desired ">3.0<" Frequency Group. >CHANNEL< 6. The receiver will automatically find >SCAN< the next clean frequency. As soon as the receiver has found a clean frequency, the Subchannel number assigned to this frequency ">AT3.001<"...

  • Page 30: Extra Functions

    4 Operating Notes If you have not stored a receiver name 4.1.3 Extra Functions EXTRA • NAME yet, you can use the "NAME" screen to X-TRA assign a new name to your receiver. >NAME< X-TRA NAME to select the first charac- >_<...

  • Page 31: Ht 450 Handheld Transmitter

    4 Operating Notes • INFO The INFO screen lets you call up information about your receiver. EXTRA X-TRA >NAME< >STATUS< >SQL< >INFO< >EXIT< X-TRA X-TRA X-TRA X-TRA X-TRA "V 1.1" "B 4--.50" "PV 1.0" EXIT "V1.1": firmware version X-TRA X-TRA X-TRA X-TRA "B 4--.50": frequency band...

  • Page 32: 450 Bodypack Transmitter

    4 Operating Notes The PPC 1000 Polar Pattern Converter (optional accessory for the HT 450/C) will change the micro- phone's pickup pattern from cardioid to hypercardioid. This makes the microphone even less sensitive to sounds arriving from the sides, resulting in higher gain before feedback when you use monitor speak- ers on stage.

  • Page 33: Troubleshooting

    6 Troubleshooting Problem Possible Cause Remedy 1. AC adapter is not connected to receiver 1. Connect AC adapter to receiver and/or and/or power outlet. power outlet. 2. Receiver is OFF. 2. Push POWER switch to switch receiver ON. 3. Receiver is not connected to mixer or 3.

  • Page 34: Specifications

    7 Specifications SR 450 RF carrier frequency ranges: 650 to 680, 680 to 710, 720 to 750, 760 to 790, 790 to 820, 835 to 862 and 863 to 865 MHz Modulation: Audio bandwidth: 35 to 20,000 Hz THD at 1 kHz: <0.3% Signal-to-noise: 120 dB(A)
  • Page 35 Mikrofone · Kopfhörer · Drahtlosmikrofone · Drahtloskopfhörer · Kopfsprechgarnituren · Akustische Komponenten Microphones · Headphones · Wireless Microphones · Wireless Headphones · Headsets · Electroacoustical Components Microphones · Casques HiFi · Microphones sans fil · Casques sans fil · Micros-casques · Composants acoustiques Microfoni ·...
  • Page 36 MKH 416 P 48 U Instruction manual...
  • Page 37 1 MZQ 100 microphone clamp 1 Instruction manual 1 Carry bag Opt ional accessories • MZQ 60-1microphone clamp • MZS 20-1 shock mount with pistol grip • MZW 60-1 basket windshield For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com. 416  |  1...
  • Page 38 The MKH 416 direct ional st udio microphone Brief descript ion The MKH 416 is a directional studio microphone which is also espe- cially suited to outdoor applications. Its high degree of directivity makes the MKH 416 a superb microphone for film and television, including outside broadcast applications.
  • Page 39 Specificat ions Frequency response 40 ... 20,000 Hz Transducer principle RF condenser microphone Pick-up pattern super-cardioid/lobar Sensitivity (free field, no load) 25 mV/Pa ±1 dB (1 kHz) Ω Nominal impedance Ω Min. terminating impedance approx. 800 Equivalent noise level CCIR-weighted (CCIR468-3) approx.
  • Page 40 Manufact urer Declarat ions Warrant y Sennheiser electronic GmbH & Co. KG gives a warranty of 60 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance wit h t he following requirement s •...
