Page 1
ENGLISH DP351 P/NO : MFL56732878 DP351-P_AISRSLK_ENG_MFL56732878.1 1 DP351-P_AISRSLK_ENG_MFL56732878.1 1 7/10/08 11:10:49 AM 7/10/08 11:10:49 AM...
Page 2
Safety Precaution • Used batteries should be disposed of safely and not incinerated. Attention should be shown to the environment aspects of battery disposal. CAUTION • Use the apparatus in tropical and moderate climates only. • The excessive sound pressure from earphones and headphones can cause RISK OF ELECTRIC SHOCK hearing loss.
About the Symbol Display Types of Playable Discs ................3 Rechargeable battery ................. 3 “ ” may appear on your TV display during operation and indicates that the Main Unit ....................4 function explained in this ownerʼs manual is not available on that disc. Remote Control ..................

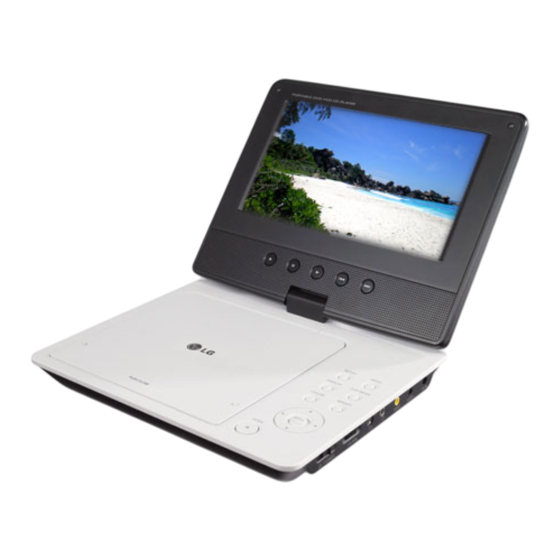

Main Unit a LCD screen b Playback Control Buttons • N (Play): Starts playback. • x (Stop): Stops playback. • X (PAUSE/STEP): Pauses playback temporarily/ press repeatedly for frame-by-frame playback. • . (Skip): Search backward* or returns to the beginning of current chapter or track or go to the previous chapter or track.
Remote Control SKIP/SEARCH (. / >): Search* backward / Put the battery into the Remote Control forward. Go to next or previous chapter/track. Pinch the battery holder clip together then pull the * Press and hold button for about two seconds. tab to remove the battery holder.
Power connections Right side of unit Connecting the Power Cable Connect the supplied power cable from the unit to a power socket. Attach the power plug to the body of the AC adapter. Plug into the carʼs (The actual set may differ from the drawing.) cigarette lighter socket.
Hooking up the unit Revolving the LCD panel Audio and Video Connection You can revolve the LCD panel of the unit clockwise a maximum of 180 degrees for use. You can also operate the unit after revolving the LCD panel Connect the AV OUT jack on the unit to the corresponding input jacks on your 180 degrees and folding it back down.
Adjust the display settings Adjust the settings TV Aspect – Select which screen aspect to use based on the shape of your TV screen. BUTTON [4:3]: Select when a standard 4:3 TV is connected. Display setup menu: SETUP [16:9]: Select when a 16:9 wide TV is connected. Select a desired option on the first level: Display Mode –...
Adjust the others settings Displaying Disc Information PBC (Playback Control) - Playback control provides special navigation fea- tures that are available on some disc. Select [On] to use this feature. BUTTON DivX(R) VOD – We provide you with the DivX® VOD (Video On Demand) regis- Press DISPLAY during playback: DISPLAY tration code that allows you to rent and purchase videos using the DivX®...
Pause a playback Playing a Disc Press PAUSE/STEP (X) to pause playback. Press PLAY ( ) to continue playback. BUTTON DivX Frame-by-Frame playback Open the disc lid: OPEN (Z) Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback. Insert a Disc: Close the disc lid: Playing repeatedly N PLAY...
Mixed disc – DivX, MP3/WMA and JPEG DivX Watching a enlarged video image When playing a disc contained with DivX, MP3/WMA and JPEG files together, During playback or pause mode, press ZOOM repeatedly to select zoom you can select which menu of files you would like to play by pressing TITLE. mode.
Listening to Music Disc or files Viewing photo files BUTTON BUTTON Open the disc lid: Open the disc lid: OPEN (Z) OPEN (Z) Insert a disc: Insert a disc: Close the disc lid: Close the disc lid: v V, MENU Select a photo file on the menu: v V, MENU Select a music from the menu:...
Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Language Code Language Code Afar 6565 Croatian 7282 Hausa 7265 Lingala 7678 Quechua 8185...
Troubleshooting Specifications Symptom Cause Correction General Power requirements DC 12V No power. The power cord is disconnected. Plug the power cord into the wall outlet securely. Power consumption External Dimensions 202 x 39 x 164 mm (W x H x D) The battery is discharged.
Page 16
זהירות כדוגמת אין לחסום את פתחי האוורור על ידי הסתרתם עם פריטים וילונות וכדומה שולחן מפת עיתונים אין להניח על המכשיר להבות פתוחות כדוגמת נרות דולקים יש להפטר מסוללות גמורות בהתאם להנחיות היפטרות מסוללות על ידי אין אל...
Page 17
אמצעי זהירות אודות תצוגת סמל סוגי התקליטורים הניתנים להפעלה היחידה הראשית עשוי להופיע על מסך הטלוויזיה שלכם במהלך ההפעלה ולציין בכך " " הסמל מסוים שהאפשרות המתוארת במדריך ההפעלה אינה קיימת בתקליטור וידיאו שלט רחוק חיבור מתח קוד אזורי חיבור המכשיר היחידה...
Page 18
צג יחידה ראשית נגינה מקשי בקרת הקרנה נגינה תחילת הקרנה PLAY נגינה עצירת הקרנה STOP לחצו שוב ושוב נגינה השהיה זמנית של הקרנה PAUSE/STEP להקרנת תמונה אחר תמונה או חזרה לתחילת פרק או רצועה נוכחיים או חיפוש...
Page 19
שלט רחוק בחירת שפת כתוביות SUBTITLE כתוביות הכנסת הסוללה בשלט הרחוק אם בחירת זווית מצלמת ANGLE זווית הדקו את תפס מחזיק הסוללה ואז משכו את הלשונית זמינה הכניסו את הסוללה עם סימן להוצאת מחזיק הסוללה חיפוש SEARCH חיפוש SKIP דילוג ...
Page 20
צד ימין של היחידה חיבורי חשמל חיבור כבל חשמל חברו את כבל החשמל המסופק מן היחידה אל שקע החשמל חברו לתוך שקע מצת חברו את תקע החשמל אל גוף מתאם הסיגריות של הרכב הערכה בפועל עשויה להיות שונה מזו שבאיור צד...
Page 21
סיבוב צג חיבור היחידה מעלות של היחידה בכיוון השעון עד ניתן לסובב את צג ניתן גם להפעיל את היחידה לאחר סיבוב צג לשימוש חיבור שמע ווידיאו מעלות וקיפול חזרה כלפי מטה ביחידה אל שקעי כניסה תואמים בטלוויזיה AV OUT חברו את שקע המסופק...
Page 22
התאמת ההגדרות התאמת הגדרות תצוגה מקש בחרו יחס מסך לשימוש בהתבסס על צורת מסך TV Aspect יחס טלוויזיה SETUP תצוגת תפריט הגדרות הטלוויזיה שלכם בחרו אפשרות רצויה ברמה הראשונה רגילה בחרו כאשר מחוברת טלוויזיה עברו לרמה השנייה רחבה 16:9 בחרו...
Page 23
תצוגת מידע תקליטור התאמת הגדרות אחרות מקש בקרת ההקרנה מאפשרת הפעלת מאפייני ניווט – בקרת הקרנה DISPLAY DISPLAY בחרו לשימוש באפשרות זו בחרו ב הקיימים במספר תקליטורי ווידאו בחרו פריט ENTER התאימו הגדרות תפריט תצוגה ® וידיאו DivX אנו...
Page 24
נגינה השהיית הקרנה השמעת תקליטור הקרנת מקש PLAY לחצו על נגינה להשהיית הקרנה PAUSE/STEP לחצו על פתיחת מכסה התקליטורים OPEN נגינה להמשך הקרנה הכנסת תקליטור הקרנה תמונה אחר תמונה סגירת מכסה התקליטורים להקרנת תמונה אחר תמונה PAUSE/STEP לחצו שוב ושוב על ...
Page 25
JPEG - ו DivX – תקליטור מעורב צפייה בתמונת וידיאו מוגדלת תוכלו לבחור איזה יחד JPEG - ו DivX בעת הפעלת תקליטור המכיל קבצי לבחירת מצב זום ZOOM לחצו שוב ושוב על בעת הקרנה או במצב השהיה TITLE תפריט קבצים ברצונכם להפעיל בלחיצה על ...
Page 26
צפייה בקובצי תמונות האזנה למוזיקה בתקליטורים או קבצים מקש מקש פתיחת מכסה תקליטורים פתיחת מכסה תקליטורים OPEN OPEN הכנסת תקליטור הכנסת תקליטור סגירת מכסה תקליטורים סגירת מכסה תקליטורים MENU בחירת קובץ תמונות מן התפריט MENU בחירת מוזיקה מן התפריט ...
Page 27
קודי שפה תפריט תקליטור כתוביות תקליטור תקליטור שמע השתמשו ברשימה זו כדי להכניס את השפה הרצויה להגדרות הראשוניות הבאות שפה קוד שפה קוד שפה קוד שפה קוד שפה קוד שפה קוד קודי אזור בחרו קוד אזור מרשימה זו אזור קוד אזור...
