BGA 60
2 - 18
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Stihl 42440111600

Summary of Contents for Stihl 42440111600

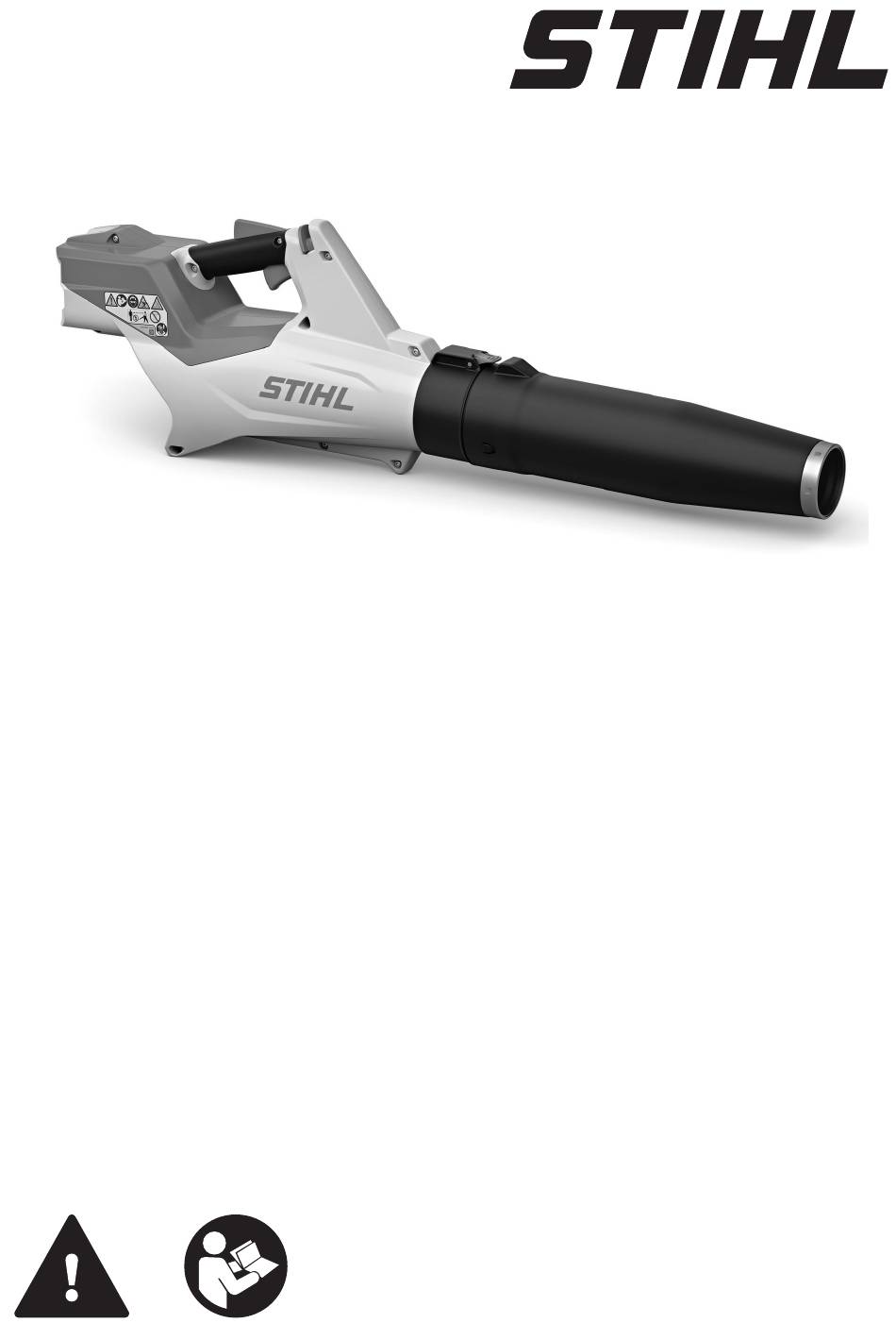

  • Page 1 BGA 60 2 - 18 Instruction Manual...

  • Page 2: Table Of Contents

    STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

  • Page 3: Overview

    3 Overview English Overview 11 Battery The battery supplies the blower with energy. Blower, Battery and Charger 12 LEDs The LEDs indicate the state of charge of the battery and any faults. 13 Button The button activates the LEDs on the battery. 14 Charger The charger charges the battery.

  • Page 4: Safety Precautions

    Safety Precautions ■ Batteries and chargers not explicitly approved Warning symbols for the blower by STIHL may cause a fire or Meanings of warning signs and labels on the explosion. Persons may be seriously or fatally blower, battery and charger: injured, and property may be damaged.
  • Page 5 ► If you have any queries: Contact your ■ The blower is not waterproof. If you work in STIHL servicing dealer for assistance. the rain or in a damp environment, an electric shock may occur. This can result in injuries to Clothing and Equipment the user and may damage the blower.
  • Page 6 ► If the controls do not function properly: Do ► Keep bystanders, children and animals not work with the blower. away from the work area. ► Fit original STIHL accessories designed for ► Make sure that children can‐ this blower model. not play with the charger.
  • Page 7 ► If the battery catches fire: Attempt to extin‐ ► Stop working, remove the battery and con‐ guish the battery with a fire extinguisher or sult a STIHL servicing dealer. water. ■ The blower may cause vibrations in operation. ► Take breaks.
  • Page 8 English 4 Safety Precautions Connecting to the power supply may trip over it. People may be injured, and the connecting cable or extension cord may be Contact with live components may occur for the damaged. following reasons: ► Route and mark the connecting cable and –...
  • Page 9 4 Safety Precautions English 4.10.2 Battery 4.11.2 Battery WARNING WARNING ■ The battery is not protected against all ambi‐ ■ Children are not aware of and cannot assess ent conditions. The battery may be damaged if the dangers of the battery Children may be it is exposed to certain ambient conditions, seriously injured.

  • Page 10: Preparing The Blower For Operation

    ► Attach nozzle, 7.1. The battery and the charger warm up during ► Check the controls, 10.1. charging. ► If it is not possible to carry out these steps do not use the blower. Consult a STIHL servicing dealer. 0458-008-0101-A...

  • Page 11: Assembling The Blower

    7 Assembling the Blower English LED on Charger The LED indicates the operating status of the charger. If the LED glows green, the battery is being charged. ► If the LED flashes red: Rectify the malfunction. Malfunction in charger. Assembling the Blower ►...

  • Page 12: Switching The Blower On/Off

    ► Release the trigger and the Ergo lever. ► If release slide, trigger or Ergo lever is stiff or does not spring back to the initial position: Stop using the blower and contact a STIHL dealer. The release slide, trigger or the Ergo lever is defective.

  • Page 13: Operating The Blower

    ► If the blower is wet: Allow the blower to dry. ► If air continues to flow out of the nozzle: ► If the battery is moist or wet: Allow the battery Remove the battery and consult a STIHL serv‐ to dry, 18.6.

  • Page 14: Cleaning

    English 15 Cleaning 15 Cleaning 14.2 Storing the Battery STIHL recommends keeping the battery in a 15.1 Cleaning the blower charging state between 40% and 60 % (2 green ► Switch off the blower and remove the battery. LEDs lit).

  • Page 15: Troubleshooting

    ► Insert battery. ► Switch on blower. ► If 3 LEDs continue to flash red: Do not use the blower and contact your STIHL dealer for assistance. 3 LEDs light up The blower is too ► Remove the battery.

  • Page 16: Specifications

    Temperature limits 18.1 STIHL BGA 60 Blower WARNING – Approved battery: STIHL AK ■ The battery is not protected against all ambi‐ – Blowing force: 15 N ent conditions. If the battery is exposed to cer‐ – Maximum air velocity: 69 m/s tain environmental conditions, it may catch fire –...

  • Page 17: Spare Parts And Accessories

    Contact the local authorities or your STIHL dealer for information on disposal. Improper disposal can be harmful to health and pollute the environment. ► Take STIHL products including packaging to a ANDREAS STIHL AG & Co. KG suitable collection point for recycling in accord‐ Badstraße 115 ance with local regulations.
  • Page 18 – Measured sound power level: 89 dB(A) – Guaranteed sound power level: 91 dB(A) The technical documents are stored at ANDREAS STIHL AG & Co. KG. The year of construction, the country of manufac‐ ture and the machine number are shown on the blower.
  • Page 19 22 UKCA Declaration of Conformity English 0458-008-0101-A...
  • Page 20 *04580080101A* 0458-008-0101-A...

This manual is also suitable for:

Bga 60

Table of Contents
